XLR Connector Panel
Balanced connections with the XLR connector panel are almost always
made with standard XLR-to-XLR cables. These cables may be
purchased from Audio Precision and are available from many other
sources. Figure 3-17 shows proper electrical connections for balanced
connectors. The generator should be configured for a balanced output
(either 50 Ω Bal or 600 Ω Bal) on the Generator panel.
1 2
3
XLR Male
or Female
2 Conductor shielded cable
1 2
3
XLR Male
or Female
2 Conductor shielded cable
Tip
1/4" Phone Plug
(Balanced)
Examples:
1 2
3
XLR Male
or Female
2 Conductor shielded cable
To Signal +
To Signal -
To Ground
1 2
3
XLR Male
or Female
RingSleeve
Note: Some balanced phone jacks
may require different pin connections.
Check the specifications for your
device-under-test for proper configuration.

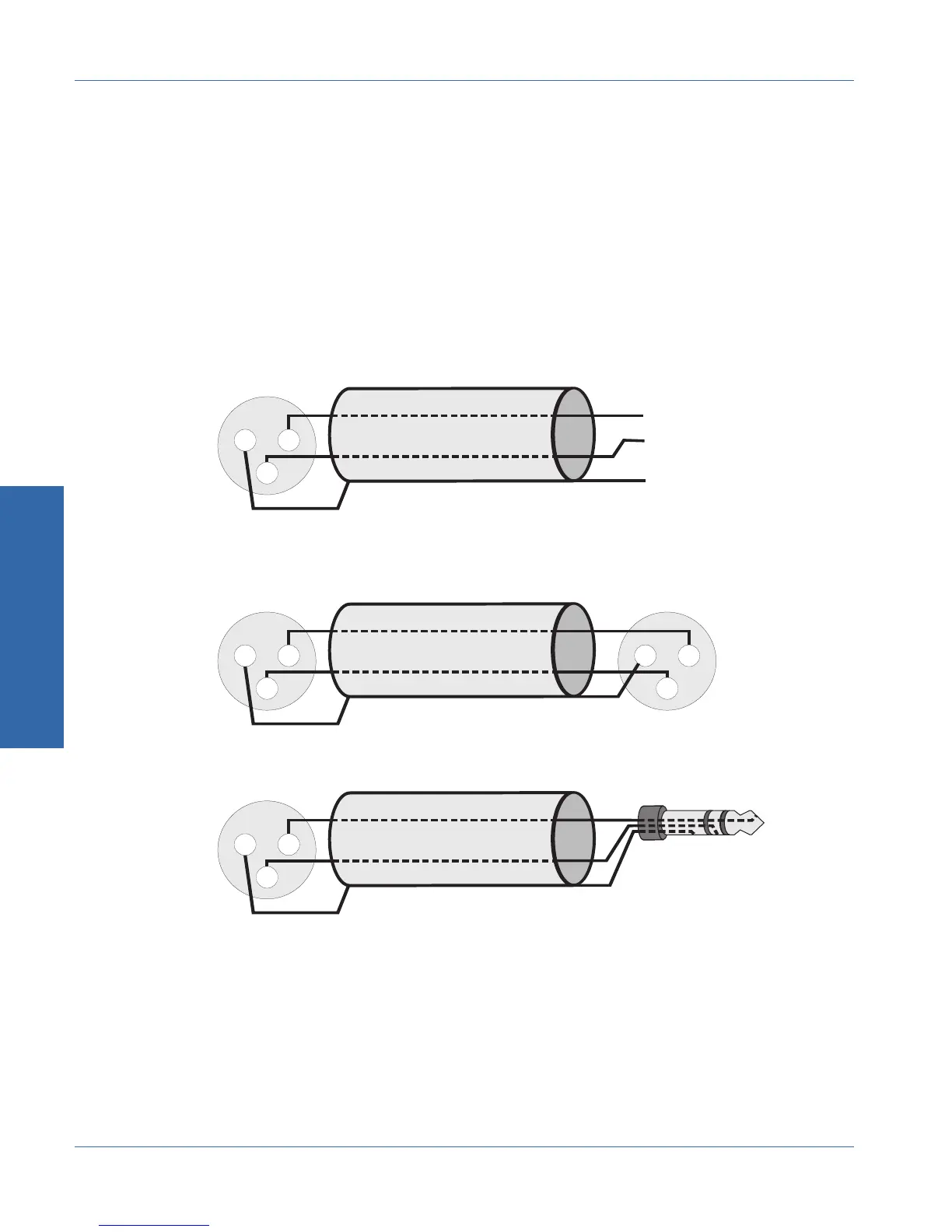

Figure 3-16. Balanced cable connections
3 Operation
Input and Output Cables Operational Overview
3-32 ATS-1 Access User's Manual
