Navigating the Panels

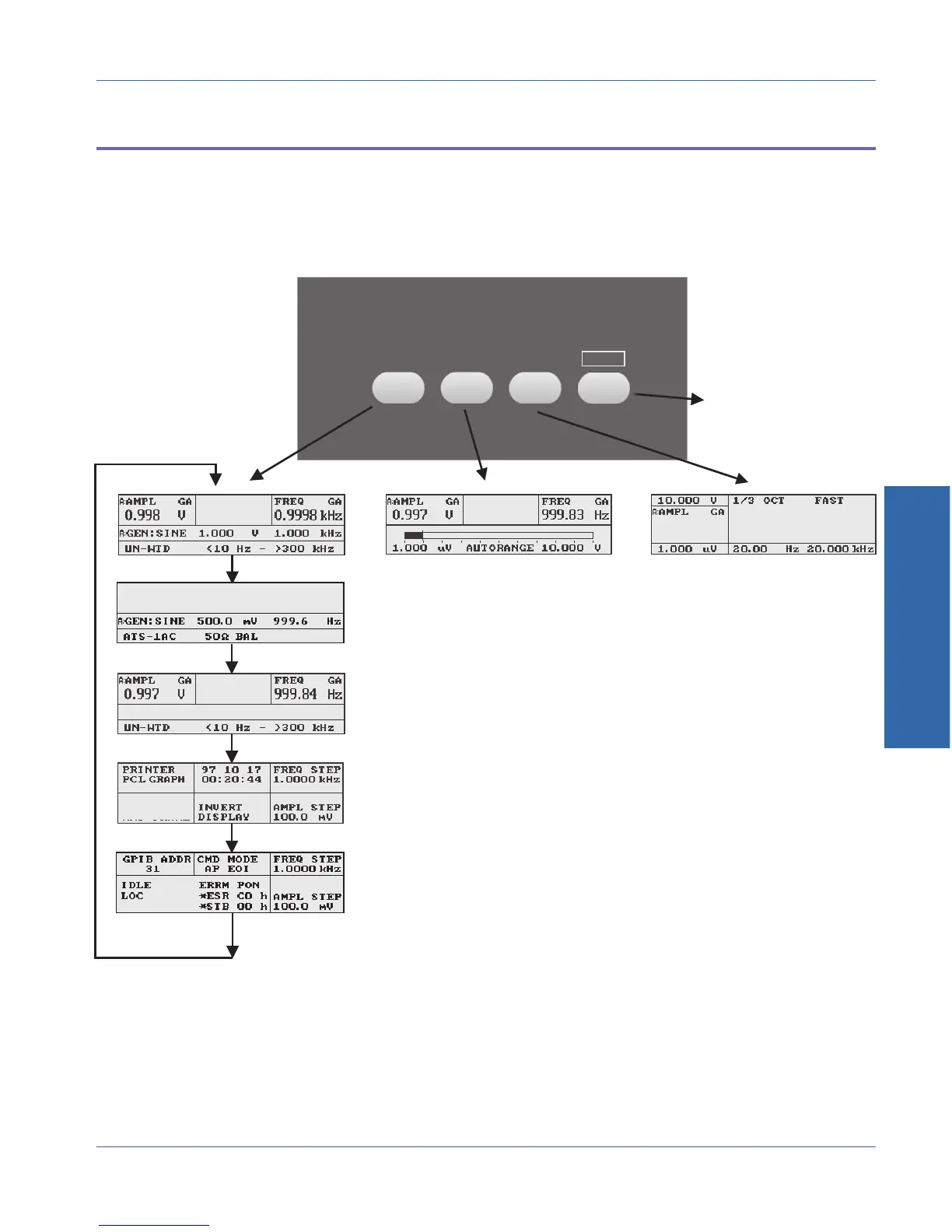

The following diagram shows the main panels and how to get to them:
PRINT
PANELS BARGRAPH SWEEP
INSTRUMENT MODE
MAIN PANEL
GEN ONLY PANEL
ANLR ONLY PANEL
SETUP PANEL
BARGRAPH PANEL
SWEEP PANEL
DEPENDS ON CURRENTLY
SELECTED PANEL
GPIB PANEL
Figure 3-3. Navigating the panels
Shortcut: Pressing any FUNCTION
button will take you to the Main
Panel, even if the measurement
function does not change.
3 Operation
Operational Overview Front Panel Controls and Connectors
ATS-1 Access User's Manual 3-7
