The SWEEP key provides access to the Sweep panel, which looks like
this:
The Sweep panel is used for stepping through a range of frequencies
or amplitudes, taking a reading at each step. A graph is generated
from the readings, with the swept parameter on the horizontal axis and
the reading on the vertical axis. See page 4-42 for more on sweeps.
The operation of the PRINT key depends on what panel is currently on
the screen.
If the PRINT key is pressed while the Sweep panel is displayed, the
display will change to the Print panel, which looks like this:
The Print panel provides a number of features relating to printing of
the sweep data. This panel will allow you to print the data as a graph,
an exact image of the Sweep Panel (a screen dump), or a table of
data. It also allows line feed and form feed control of the printer.
If any panel besides the Sweep Panel is displayed, pressing PRINT will
result in an immediate printout of the data on the display. The type of
printout will depend on which panel is currently displayed.
For more information on printing and the Print panel, see page 4-46.

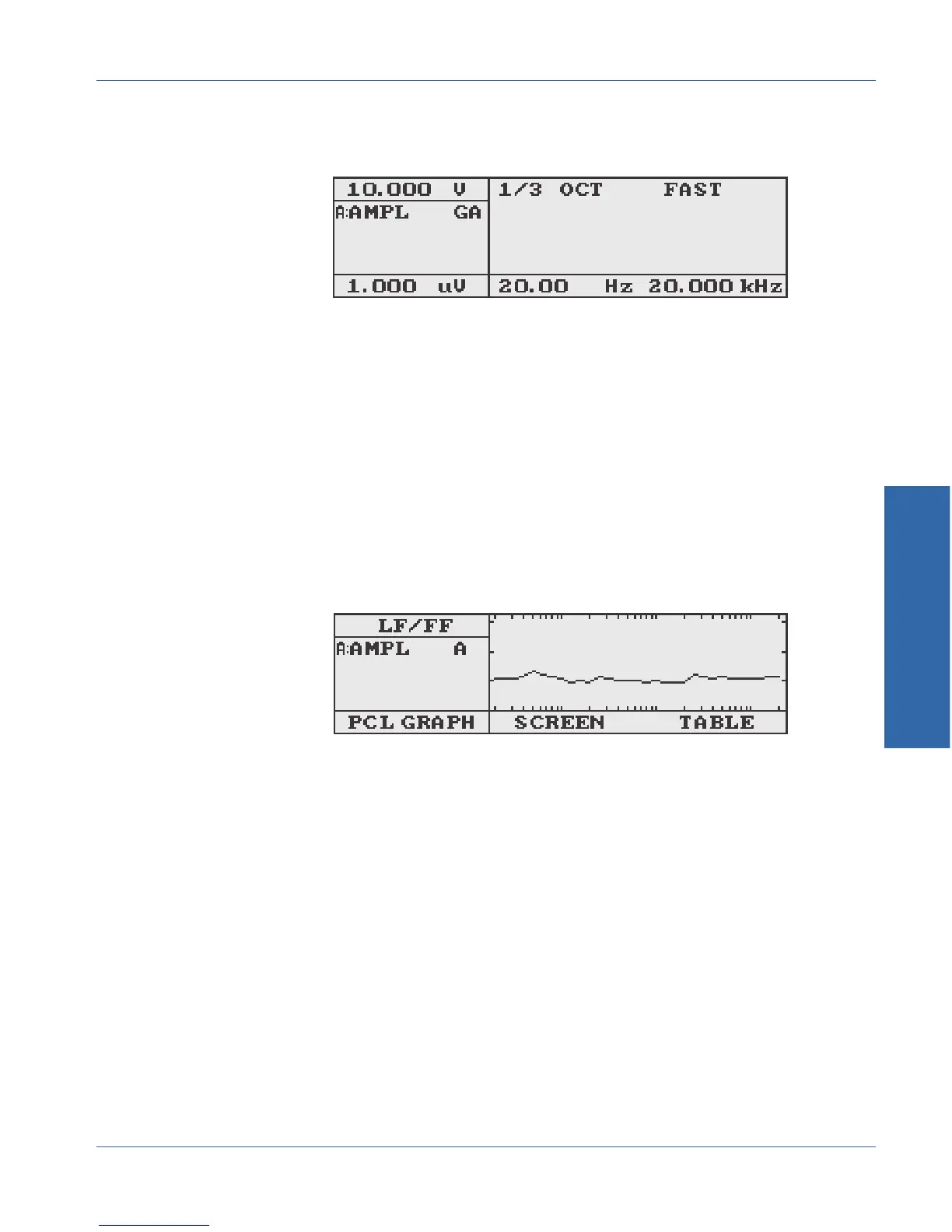

Figure 3-6. Sweep panel
Figure 3-7. Print panel
3 Operation
Operational Overview Front Panel Controls and Connectors
ATS-1 Access User's Manual 3-9
