Administrator's Manual A. Configuring Phones in Server-Specific Deployments
Version 3.4.3 209 400HD Series IP Phones
2. Click Add Group.

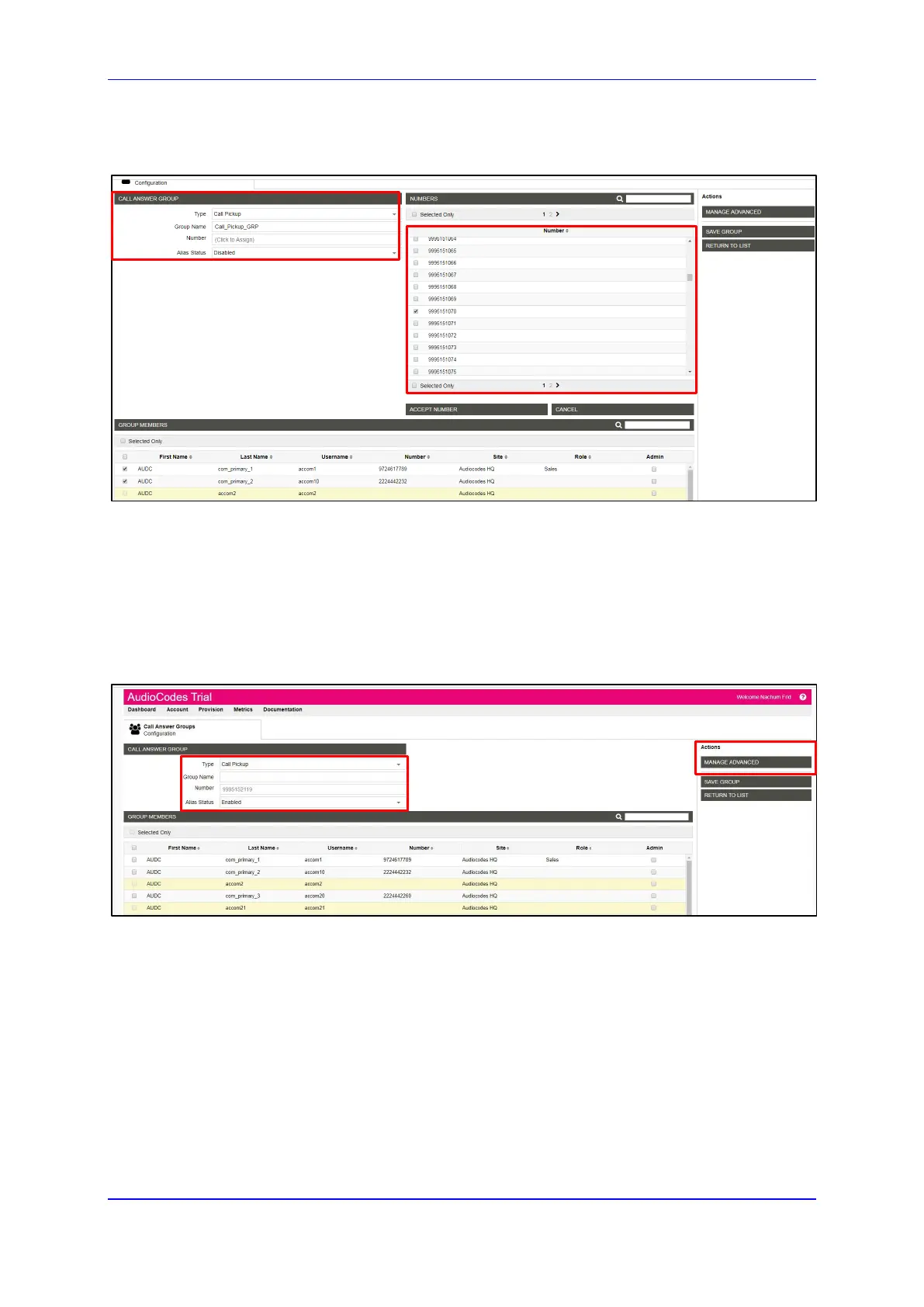

Figure A-15: Call Answer Group
3. From the ‘Type’ dropdown, select Call Pickup.
4. Enter a Group Name, for example, Call_Pickup_GRP, as shown in the preceding figure.
5. Click the ‘Number’ field; all available numbers are displayed under ‘Numbers’, as shown
in the preceding figure.
6. Select the phone number to route into the group, and then click Accept Number; the
number is displayed in the ‘Number’ field, as shown in the figure below.
Figure A-16: Number
7. From the ‘Alias Status’ dropdown, select Enabled to enable VSC dialing, as shown in
the preceding figure.
8. Click Manage Advanced to configure advanced options.
