400HD Series IP Phones
Administrator's Manual 36 Document #: LTRT-11973

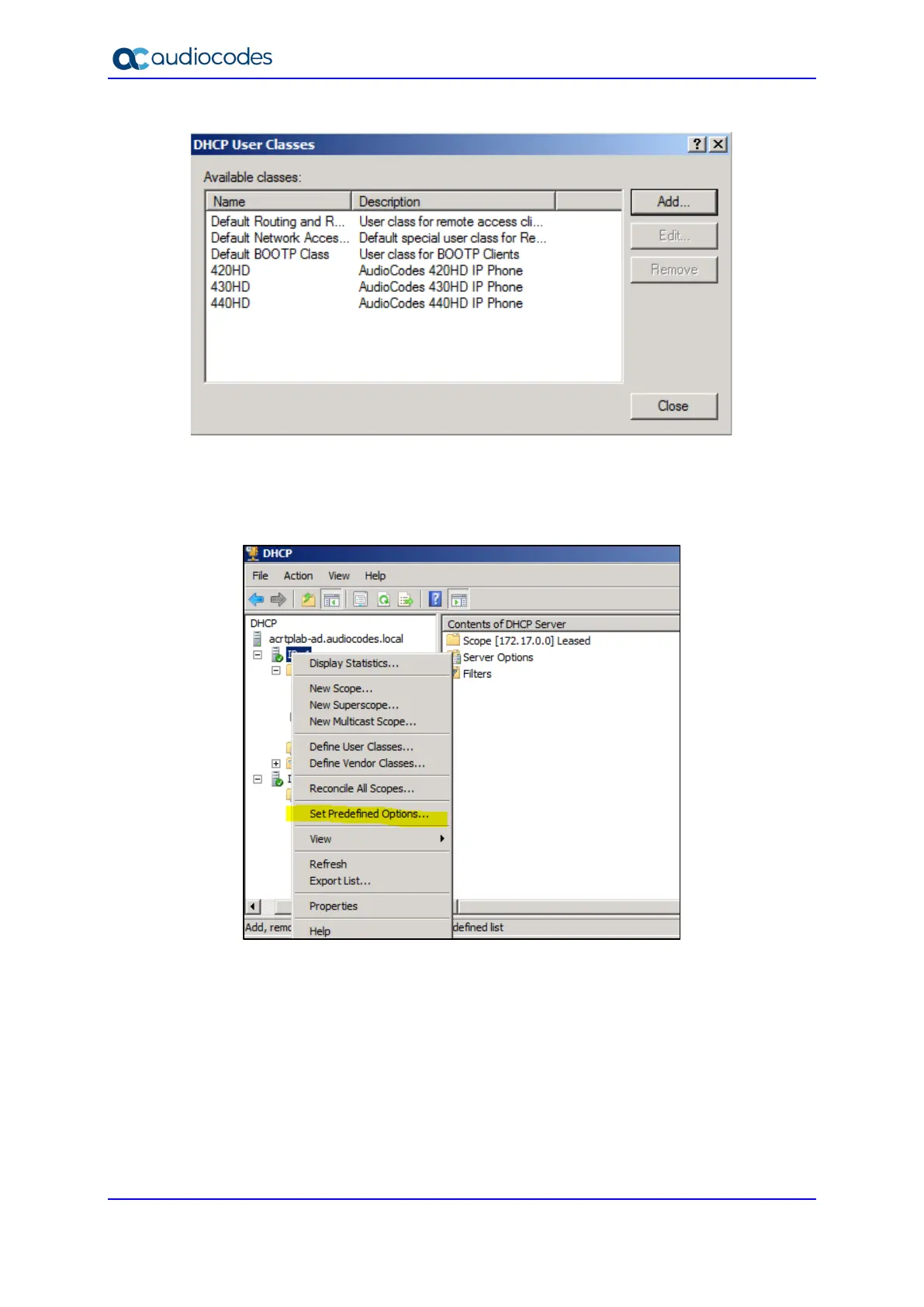

Figure 3-7: DHCP User Classes [Illustration only]
6. Configure Scope Option 160. This is not a standard Scope Option, so it needs to be
created. To create it on the server, select the IP version (IPv4) and select Set
Predefined Options…
Figure 3-8: Set Predefined Options
7. From the 'Option class' dropdown, select DHCP Standard Options, and then click the
Add… button.
