User's Manual 6. Configuration Using the Web Interface
Version 6.6 47 MediaPack Series
6.4 Areas of the GUI
The areas of the Web interface's GUI are shown in the figure below and described in the
subsequent table.

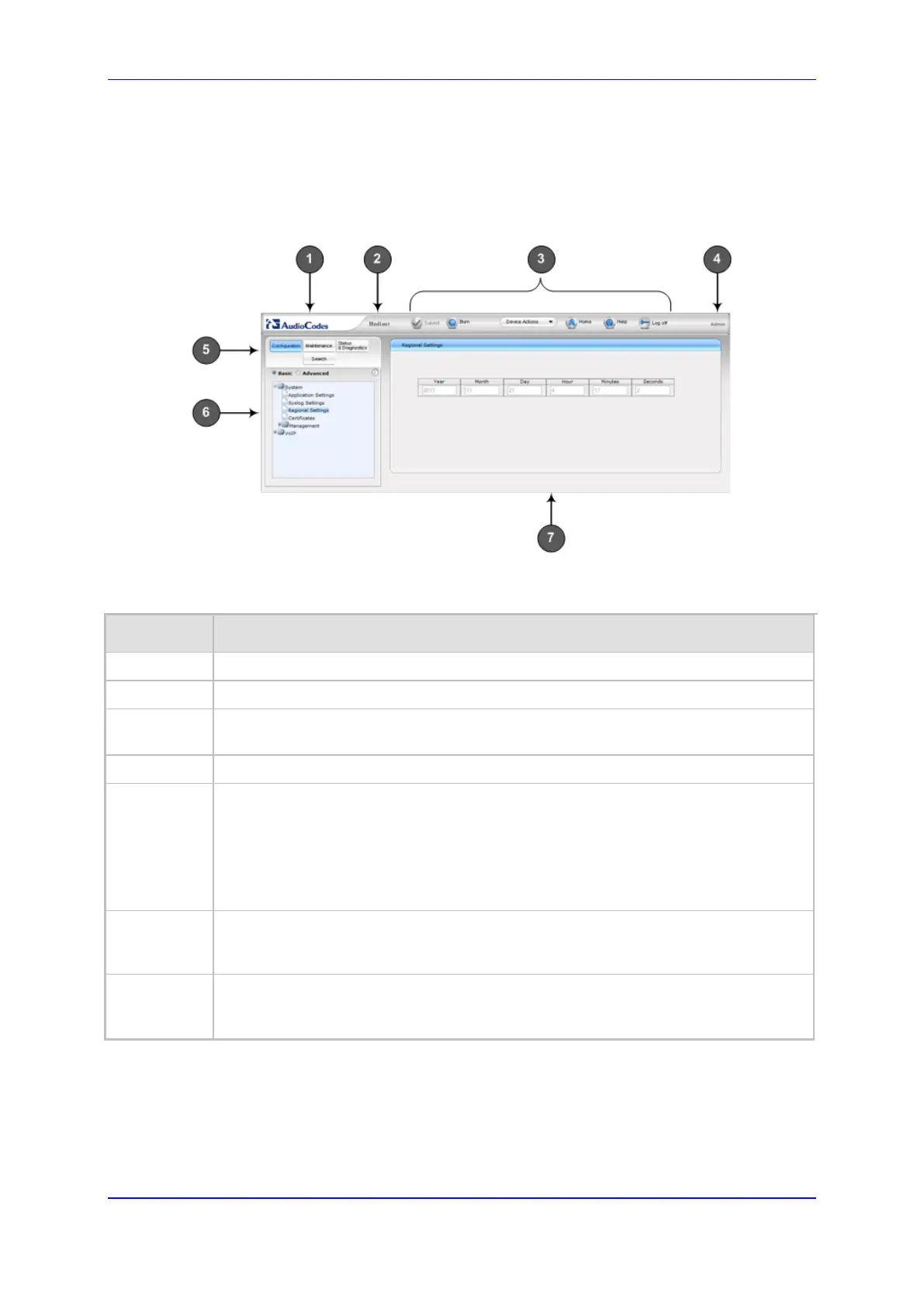

Figure 7: Areas of the Web GUI
Description of the Web GUI Areas
Item # Description
1
Displays AudioCodes (corporate) logo image.
2 Displays the product name.
3 Toolbar, providing frequently required command buttons. For more information, see
Toolbar on page 48
4 Displays the username of the Web user that is currently logged in.
5 Navigation bar, providing the following tabs for accessing various functionalities in
the Navigation tree:
Configuration, Maintenance, and Status & Diagnostics tabs: Access the configuration
menus (see Working with Configuration Pages on page 52)
Search tab: Enables a search engine for searching
configuration parameters (see
Searching for Configuration Parameters on page 55)
6 Navigation tree, displaying a tree-
like structure of elements (configuration menus,
Scenario steps, or search engine) pertaining to the selected tab on the Navigation
bar.
7 Work pane, displaying the configuration page of the selected menu in the Navigation
tree. This is where configuration is done. For more information, (see Working with
Configuration Pages on page 52).
