6.4.16 Viewing Trunk Settings
The Home page allows you to view the settings of a selected port in the 'Trunk Settings'
page. Accessing this page from the Home page provides an alternative to accessing it from
the Advanced Configuration menu (Trunk Settings).
To view Port Settings:
1. On the Home page, click a required trunk port LED on the blade (labeled as items #3
and #5 in the figure in Accessing the Home Page); a shortcut menu appears.
2. From the shortcut menu, choose Port Settings; the 'Trunk Settings' page opens.
6.4.17 Assigning a Name or Brief Description to a Port
The 'Home' page allows you to assign an arbitrary name or a brief description to each port.
This description appears as a tooltip when you move your mouse over the port.
To add a port description:
1. Click the required port icon; a shortcut menu appears.

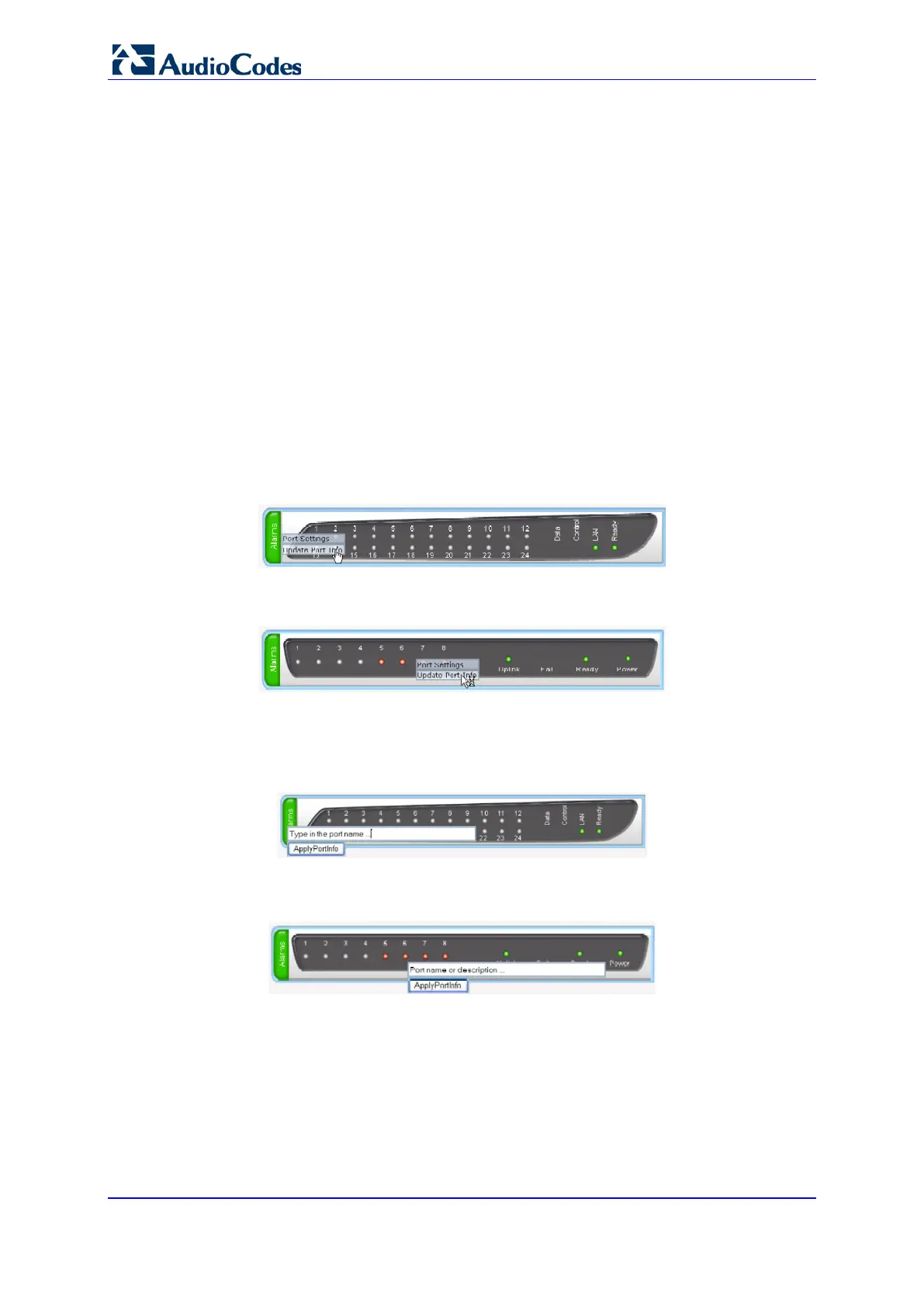

Figure 29: MP-124 - Update Port Information
Figure 30: MP-11x - Update Port Information
2. From the shortcut menu, choose Update Port Info; a text box appears.
Figure 31: MP-124 - Apply Port Info
Figure 32: MP-11x - Apply Port Info
Type a brief description for the port, and then click Apply Port Info.
