User's Manual 54 Document #: LTRT-71405
MediaPack Series
6.4.4.4
6.4.4.4
6.4.4.4

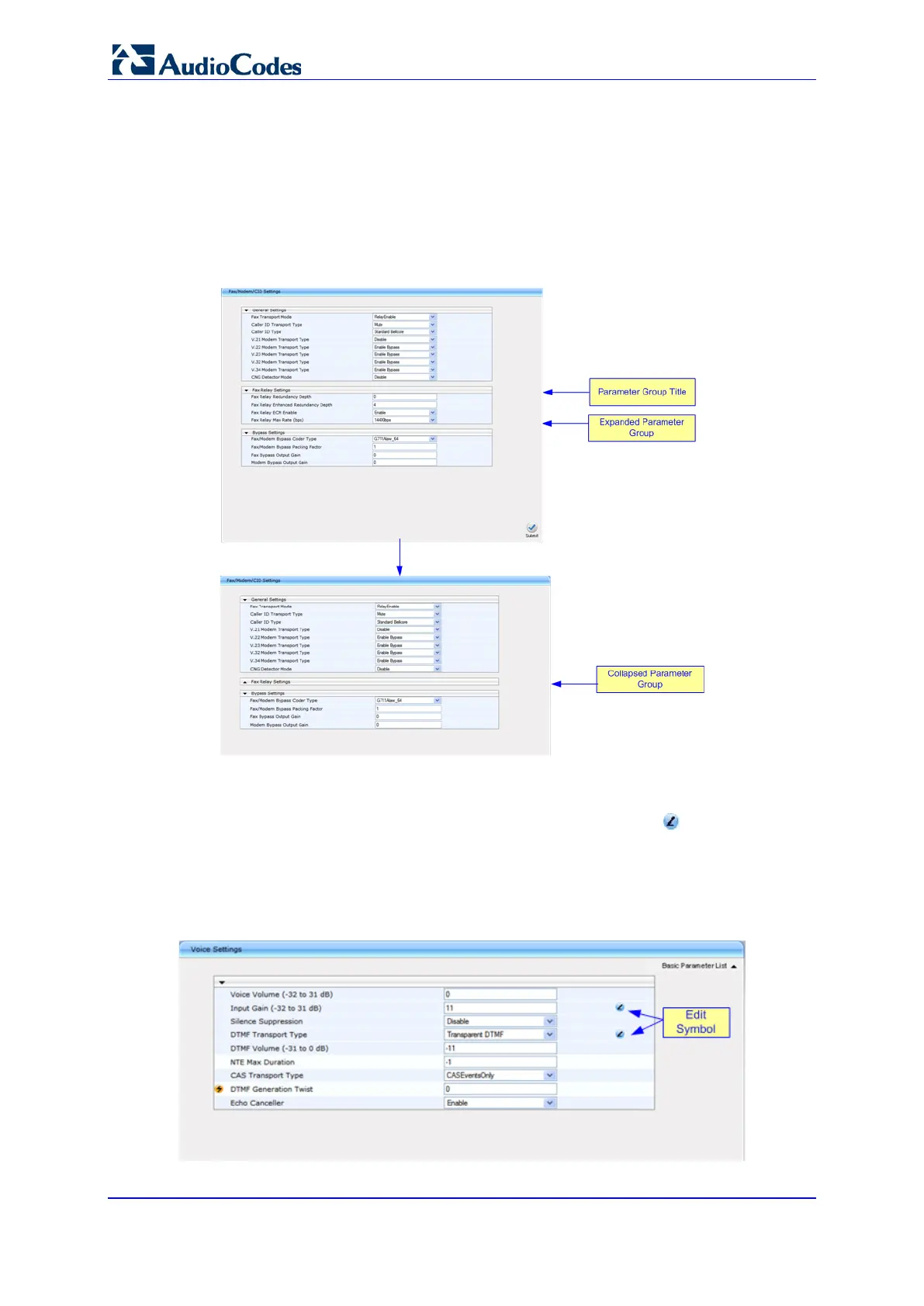

6.4.4.4 Showing / Hiding Parameter Groups
Some pages provide groups of parameters, which can be hidden or shown. To toggle
between hiding and showing a group, simply click the group name button that appears
above each group. The button appears with a down-pointing or up-pointing arrow,
indicating that it can be collapsed or expanded when clicked, respectively.
Figure 13: Expanding and Collapsing Parameter Groups
6.4.4.5 Modifying Parameter Values
When you enter parameter values on a configuration page, the Edit symbol appears to
the right of these value fields. This feature is especially useful when modifying many
parameters in a configuration page in that it helps to remind you of the parameters that you
have currently modified (before applying the changes, i.e., clicking the Submit button).
Figure 14: Modifying Parameter Values
