 To configure fax fallback mode:
1. Open the Gateway General Settings page (Setup menu > Signaling & Media tab >
Gateway folder > Gateway General Settings), and then from the 'Fax Signaling
Method' drop-down list (IsFaxUsed), select Fax Fallback:

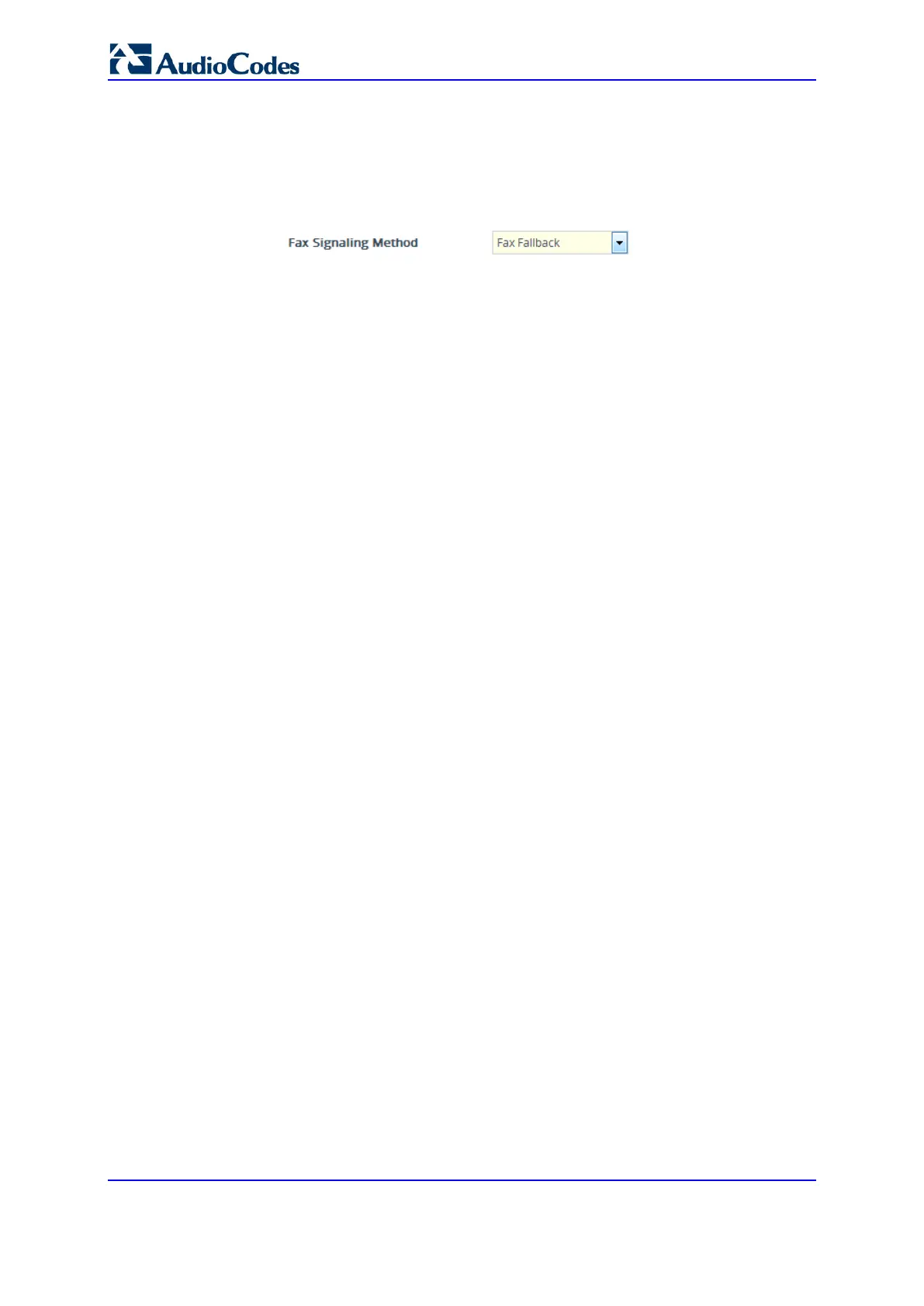

Figure 14-8: Configuring Fax Signaling to Fallback
2. Click Apply.
14.2.2.4 Fax/Modem Bypass Mode
In this proprietary mode, when fax or modem signals are detected, the channel
automatically switches from the current voice coder to a high bit-rate coder, according to
the 'Fax/Modem Bypass Coder Type' parameter (FaxModemBypassCoderType). The
channel is also automatically reconfigured with the following fax / modem adaptations:
 Disables silence suppression
 Enables echo cancellation for fax
 Disables echo cancellation for modem
 Performs certain jitter buffering optimizations
The network packets generated and received during the bypass period are regular voice
RTP packets (per the selected bypass coder), but with a different RTP payload type
according to the following parameters:
 'Fax Bypass Payload Type' (FaxBypassPayloadType)
 ModemBypassPayloadType (ini file)
During the bypass period, the coder uses the packing factor, configured by the 'Fax/Modem
Bypass Packing Factor' parameter (FaxModemBypassM). The packing factor determines
the number of coder payloads (each the size of
FaxModemBypassBasicRTPPacketInterval) that are used to generate a single fax/modem
bypass packet. When fax/modem transmission ends, the reverse switching, from bypass
coder to regular voice coder is performed.
 To configure fax / modem bypass mode:
1. Open the Gateway General Settings page (Setup menu > Signaling & Media tab >
Gateway folder > Gateway General Settings), and then from the 'Fax Signaling
Method' drop-down list (IsFaxUsed), select No Fax.
2. On the Fax/Modem/CID Settings page, do the following:
a. Set the 'Fax Transport Mode' parameter to Bypass (FaxTransportMode = 2).
b. Set the 'V.21 Modem Transport Type' parameter to Enable Bypass
(V21ModemTransportType = 2).
c. Set the 'V.22 Modem Transport Type' parameter to Enable Bypass
(V22ModemTransportType = 2).
d. Set the 'V.23 Modem Transport Type' parameter to Enable Bypass
(V23ModemTransportType = 2).
e. Set the 'V.32 Modem Transport Type' parameter to Enable Bypass
(V32ModemTransportType = 2).
f. Set the 'V.34 Modem Transport Type' parameter to Enable Bypass
(V34ModemTransportType = 2).
3. Set the ini file parameter, BellModemTransportType to 2 (Bypass).
4. Configure the following optional parameters:
• 'Fax/Modem Bypass Coder Type' (FaxModemBypassCoderType).
