Version 7.2 357 Mediant 1000B Gateway & E-SBC
User's Manual 17. Control Network
Item # Description

Show List: Opens the SIP Interfaces table.
 Delete: Opens the SIP Interfaces table where you are prompted to confirm deletion of
the SIP Interface.
To add a SIP Interface, do the following:
1 Click the Add SIP Interface plus icon. The icon appears next to existing SIP
Interfaces, or as when no SIP Interfaces exist on a topology
border, or as when there are no SIP Interfaces at all.
The SIP Interfaces table opens with a new dialog box for adding a SIP Interface to the
next available index row.
2 Configure the SIP Interface as desired, and then click Apply; the SIP Interfaces table
closes and you are returned to the Topology View, displaying the new SIP Interface.
For more information on configuring SIP Interfaces, see ''Configuring SIP Interfaces'' on
page 326.

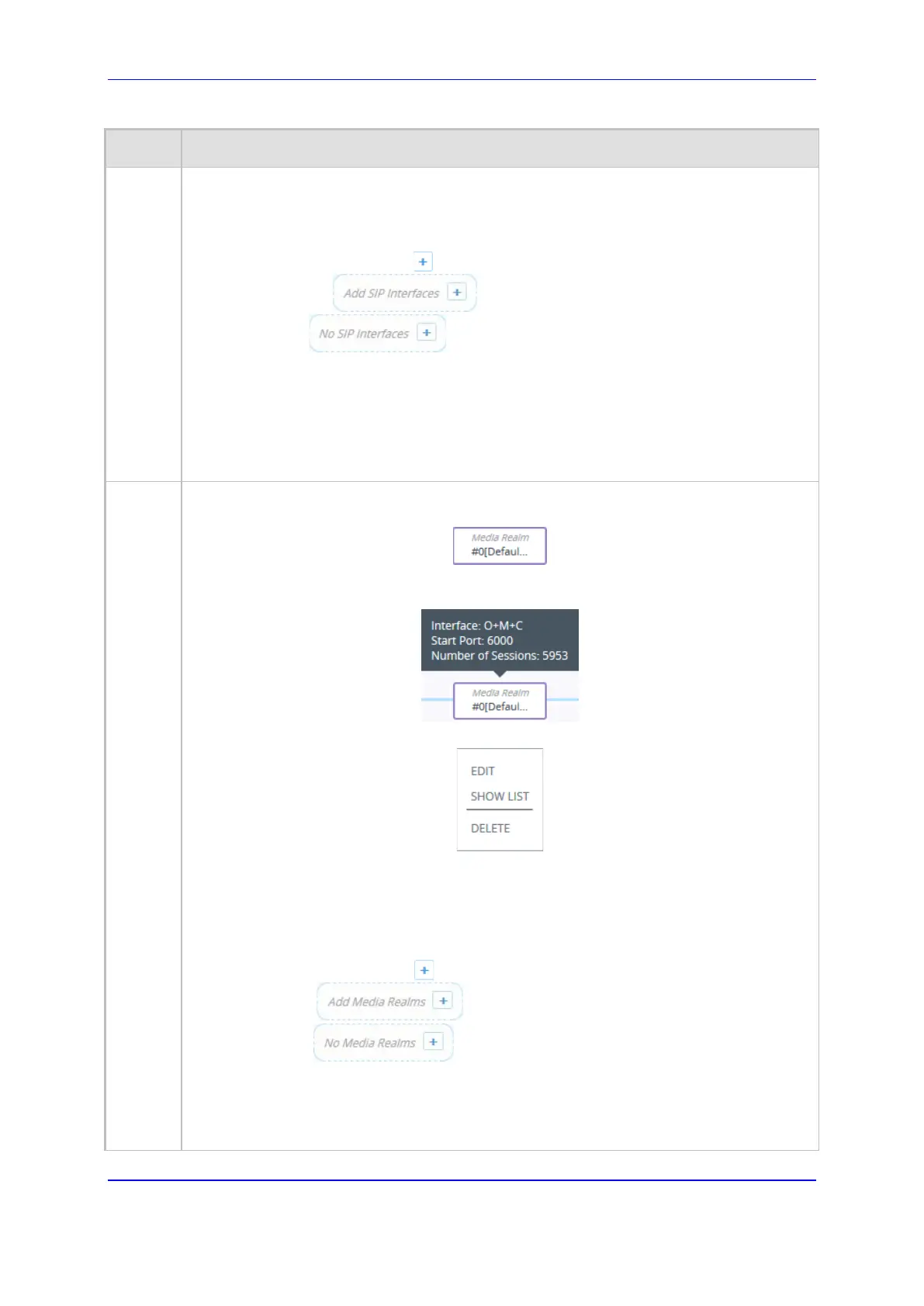

3 Configured Media Realms. Each Media Realm is displayed using the following "Media
Realm"-titled icon, which includes the name and row index number:
If you hover your mouse over the icon, a pop-up appears displaying the following basic
information (example):
If you click the icon, a drop-down menu appears listing the following commands:
 Edit: Opens a dialog box in the Media Realms table to modify the Media Realm.
 Show List: Opens the Media Realms table.
 Delete: Opens the Media Realms table where you are prompted to confirm deletion of
the Media Realm.
To add a Media Realm, do the following:
1 Click the Add Media Realm plus icon. The icon appears next to existing Media
Realms, or as when no Media Realms exist on a topology
border, or as when there are no Media Realms at all.
The Media Realms table opens with a new dialog box for adding a Media Realm to the
next available index row.
2 Configure the Media Realm as desired, and then click Apply; the Media Realms table
closes and you are returned to the Topology View, displaying the new Media Realm.
