User's Manual 534 Document #: LTRT-27045

Mediant 1000B Gateway & E-SBC

♦ 'Max. Flash-Hook Detection Period' (FlashHookPeriod): Defines the

maximum hook-flash period (in msec) for Tel and IP sides for FXS and FXO

interfaces. For more information, see the Telprofile_FlashHookPeriod

parameter in Configuring Tel Profiles on page 428.

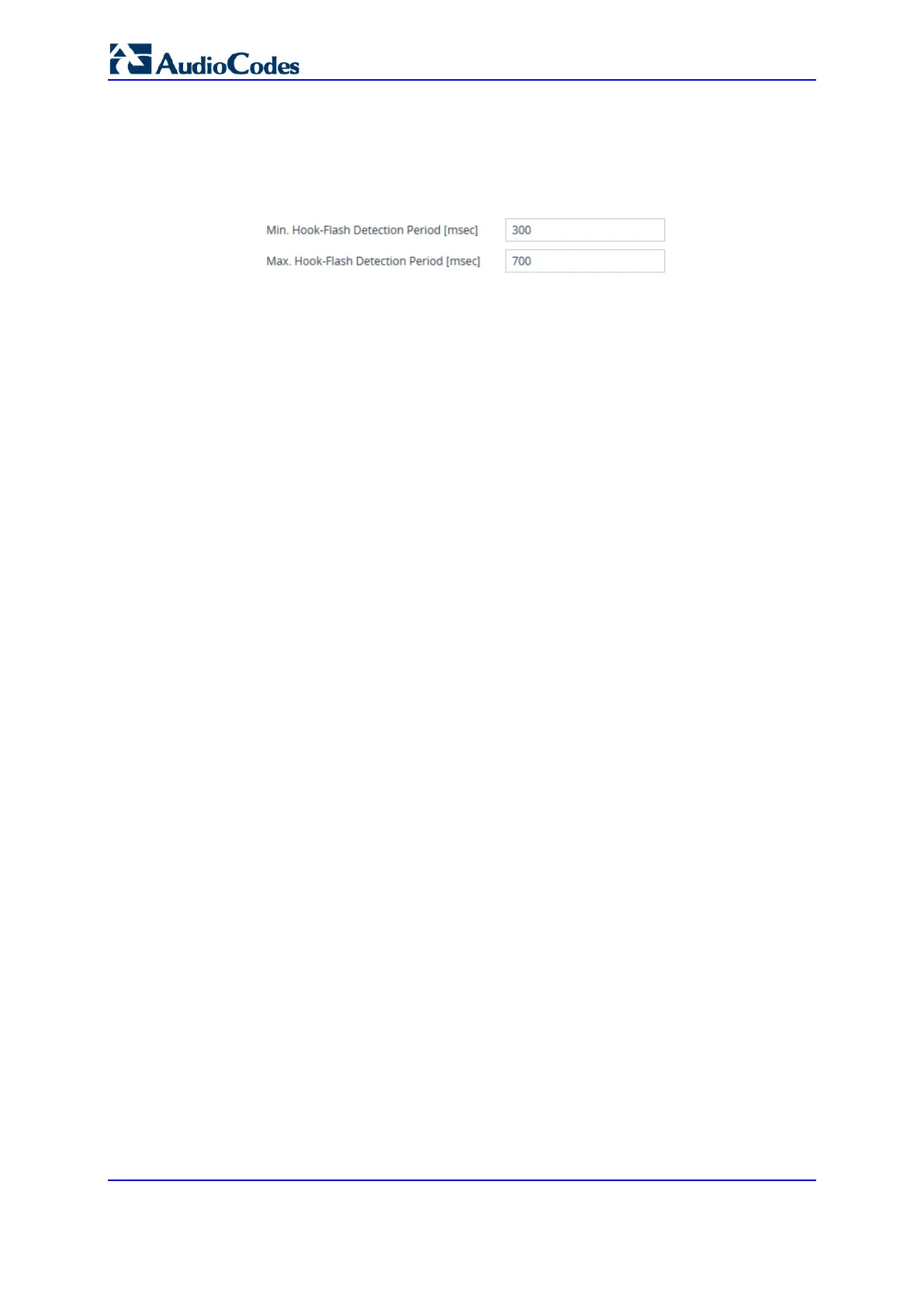

Figure 25-3: Configuring Hook-Flash Detection Period

c. Click Apply.
