User's Manual 774 Document #: LTRT-27045

Mediant 1000B Gateway & E-SBC

b. Click the Load INI File button, and then at the prompt, click OK; the device

uploads the file and then resets. Once complete, the Web Login screen appears,

requesting you to enter your username and password.

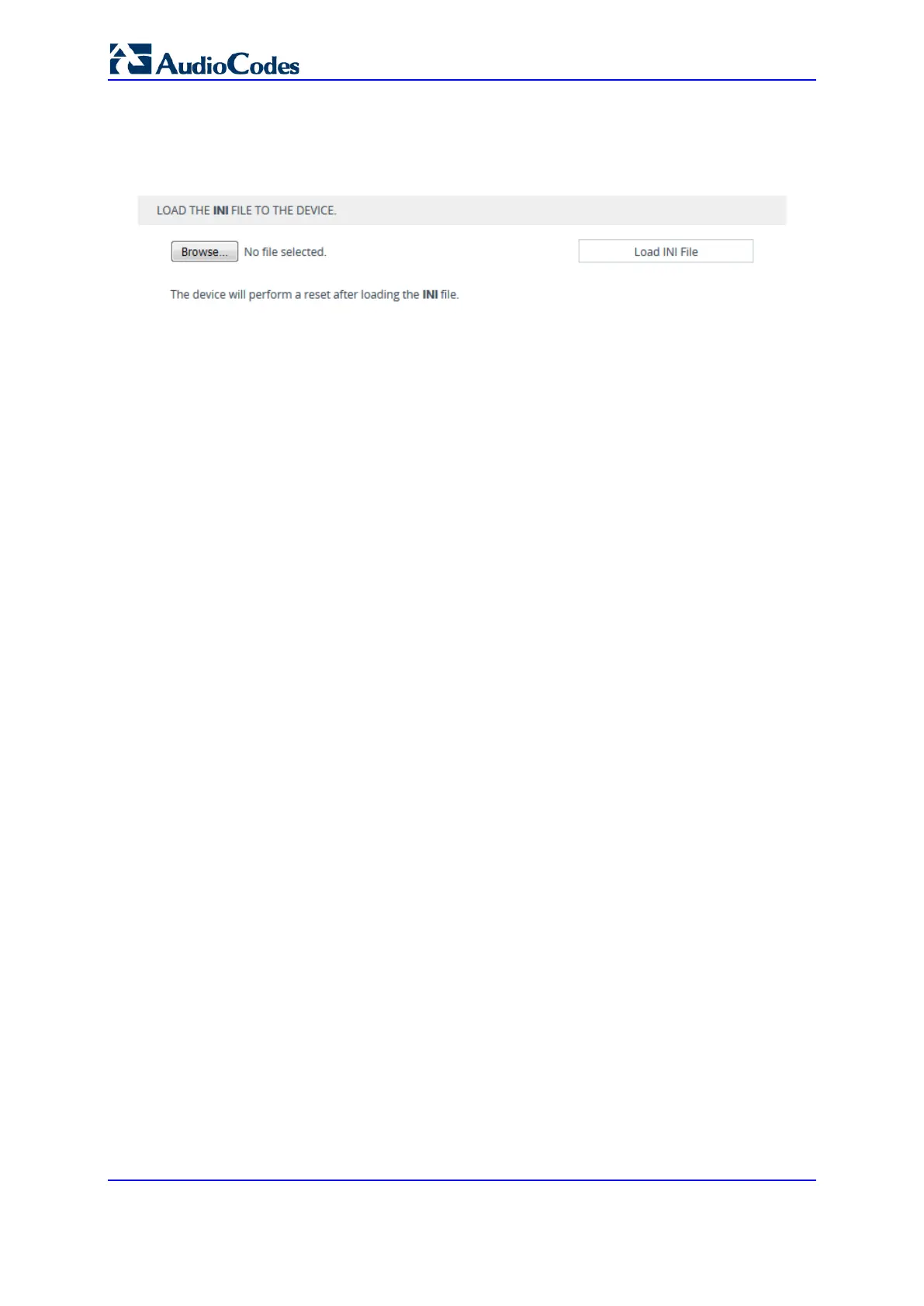

Figure 44-2: Loading ini File using Configuration File Page
