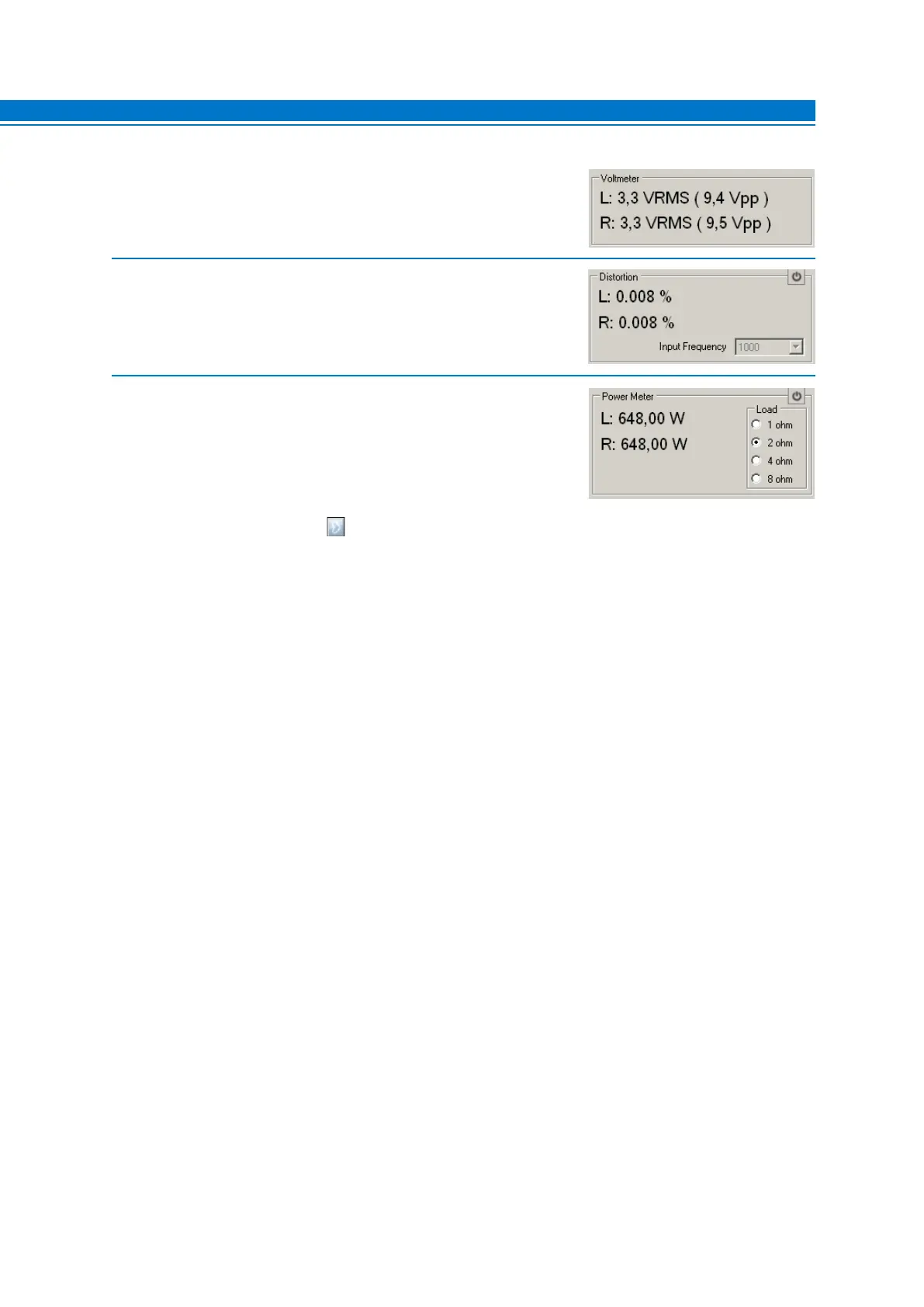

7. Measurement of the amplifier’s output level.
The Voltmeter section the value of the
undistorted output signal will be shown in Volts
RMS and Volts peak-to-peak.
8. Measurement of the distortion.
The Distortion section will show the distortion
value of the two channels.
9. Power measurement.
Select Power Meter and on the Load table choose the
value of the resistive load (1-2-4-8 ohms), corresponding
to the value of the load connected to the amplifier.
The Power Meter section will show the value of the power
supplied by the amplifier according to the applied load.
After the measurement, disable the signal on the Tune bit outputs.
