3. Transport, storage and packaging
3.1. Transport
For transport to place of installation, use sturdy packaging.
Hovering load!
Risk of death or serious injury.
→
Do NOT stand below hovering load.
→
Attach ropes or hooks for the purpose of lifting by hoist only to housing and NOT
to handwheel.
→
Actuators mounted on valves: Attach ropes or hooks for the purpose of lifting
by hoist to valve and NOT to actuator.
→
Actuators mounted to gearboxes: Attach ropes or hooks for the purpose of lifting
by hoist only to the gearbox using eyebolts and NOT to the actuator.
→
Actuators mounted to controls: Attach ropes or hooks for the purpose of lifting
by hoist only to the actuator and NOT to the controls.
→
Respect total weight of combination (actuator, actuator controls, gearbox, valve)
→
Secure load against falling down, sliding or tilting.
→
Perform lift trial at low height to eliminate any potential danger e.g. by tilting.

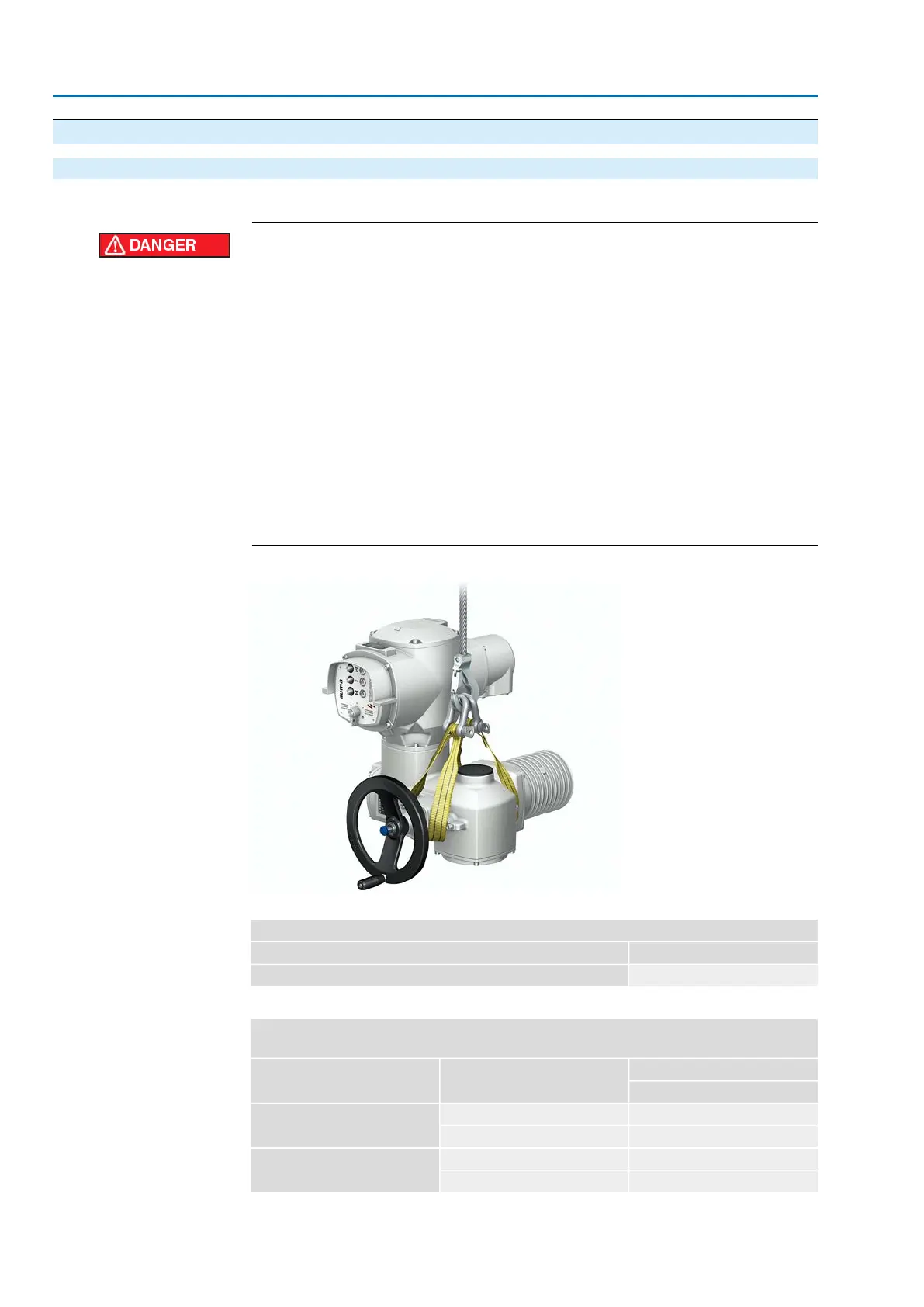

Figure 7: Example: Lifting the actuator
Table 3:
Weight of AM 01.1/AM 02.1 actuator controls
Weight approx. [kg]Electrical connection
7AUMA plug/socket connector with screw-type connection
Table 4:
Weights for multi-turn actuators SA 07.2 – SA 16.2 / SAR 07.2 – SAR 16.2
with 3-phase AC motors
Weight
2)
Motor type
1)
Type designation
Actuator
approx. [kg]
19VD...SA 07.2/
SAR 07.2
20AD...
20VD...SA 07.6/
SAR 07.6
21AD...
12
SA 07.2 – SA 16.2 /SAR 07.2 – SAR 16.2
Transport, storage and packaging AM 01.1/AM 02.1
