Descriptions referring to name plate indications

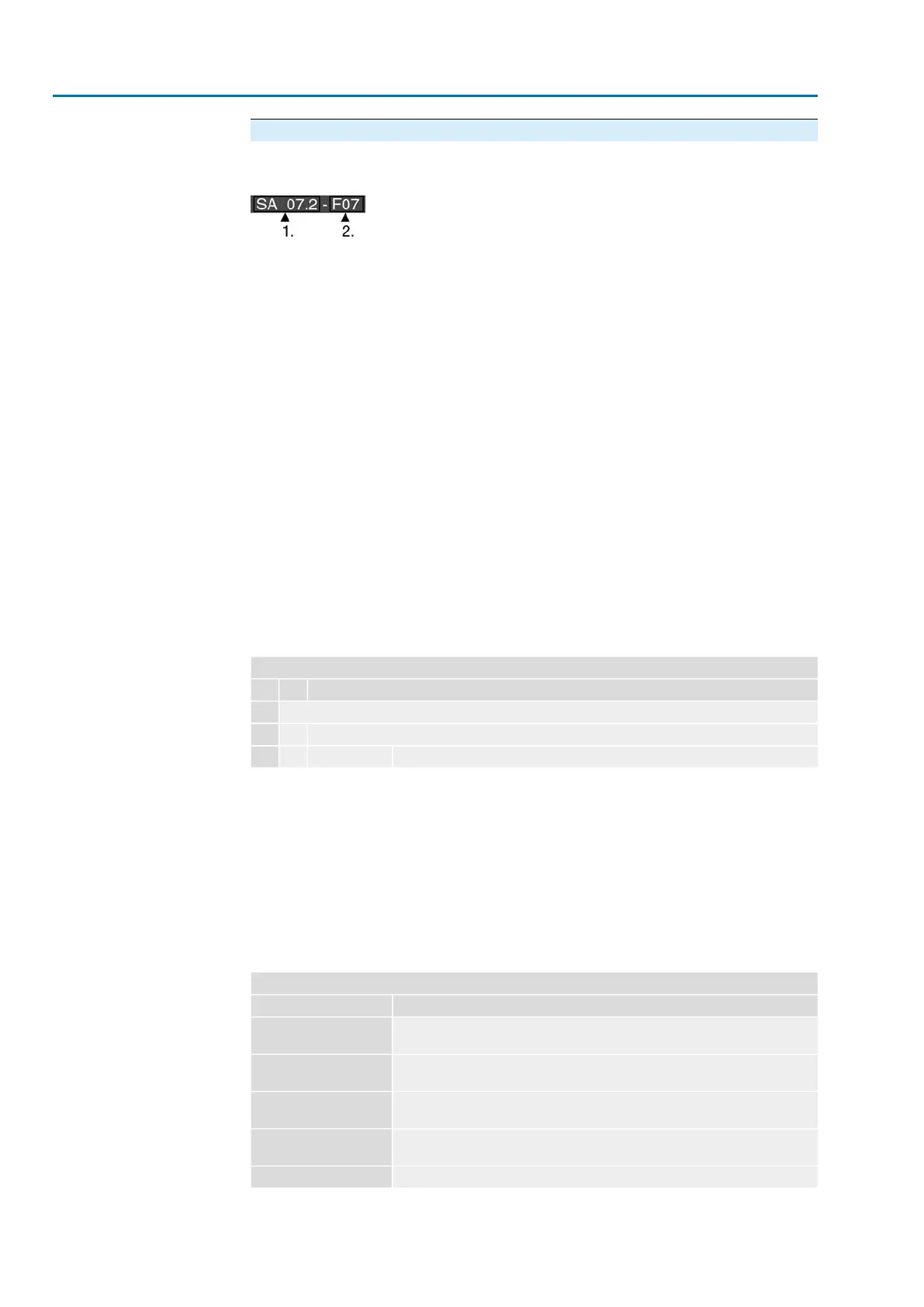

Type designation Figure 5: Type designation (example)
1. Type and size of actuator
2. Flange size
Type and size
These instructions apply to the following devices types and sizes:
●
Type SA = Multi-turn actuators for open-close duty
Sizes: SA 07.2, 07.6, 10.2, 14.2, 14.6, 16.2
●
Type SAR = Multi-turn actuators for modulating duty
Sizes: 07.2, 07.6, 10.2, 14.2, 14.6, 16.2
●
Type AM = AUMA MATIC actuator controls
Sizes: 01.1, 02.1
Order number
The product can be identified using this number and the technical data as well as
order-related data pertaining to the device can be requested.
Please always state this number for any product inquiries.
On the Internet at http://www.auma.com > Service & Support >myAUMA, we offer
a service allowing authorised users to download order-related documents such as
wiring diagrams and technical data (both in German and English), inspection certificate
and the operation instructions when entering the order number.
Actuator serial number
Table 1:
Description of serial number (with example 0516MD12345)
MD123451605
Positions 1+2: Assembly in week = week 0505
Positions 3+4:Year of manufacture = 201616
Internal number for unambiguous product identificationMD12345
AUMA power class for
switchgear
The switchgear used in the actuator controls (reversing contactors/thyristors) are
classified according to AUMA power classes (e.g. A1, B1, ....).The power class
defines the max. permissible rated power (of the motor) the switchgear has been
designed for.The rated power (nominal power) of the actuator motor is indicated in
kW on the motor name plate. For the assignment of the AUMA power classes to the
nominal power of the motor types, refer to the separate electrical data sheets.
For switchgear without assignment to any power classes, the actuator controls name
plate does not indicate the power class but the max. rated power in kW.
Control
Table 2:
Control examples (indications on actuator controls name plate)
DescriptionInput signal
Control voltage 24 V DC for OPEN - CLOSE control via digital inputs (OPEN,
STOP, CLOSE)
24 V DC
Control voltage 48 V DC OPEN - CLOSE control via digital inputs (OPEN,
STOP, CLOSE)
48 V DC
Control voltage 60 V DC OPEN - CLOSE control via digital inputs (OPEN,
STOP, CLOSE)
60 V DC
Control voltage 115 V AC for OPEN - CLOSE control via digital inputs (OPEN,
STOP, CLOSE)
115 V AC
Input current for setpoint control via analogue input0/4 – 20 mA
10
SA 07.2 – SA 16.2 /SAR 07.2 – SAR 16.2
Identification AM 01.1/AM 02.1
