6.2. Motor operation
Perform all commissioning settings and the test run prior to motor operation.
6.2.1. Local operation
The local operation of the actuator is performed using the push buttons of the local
controls.

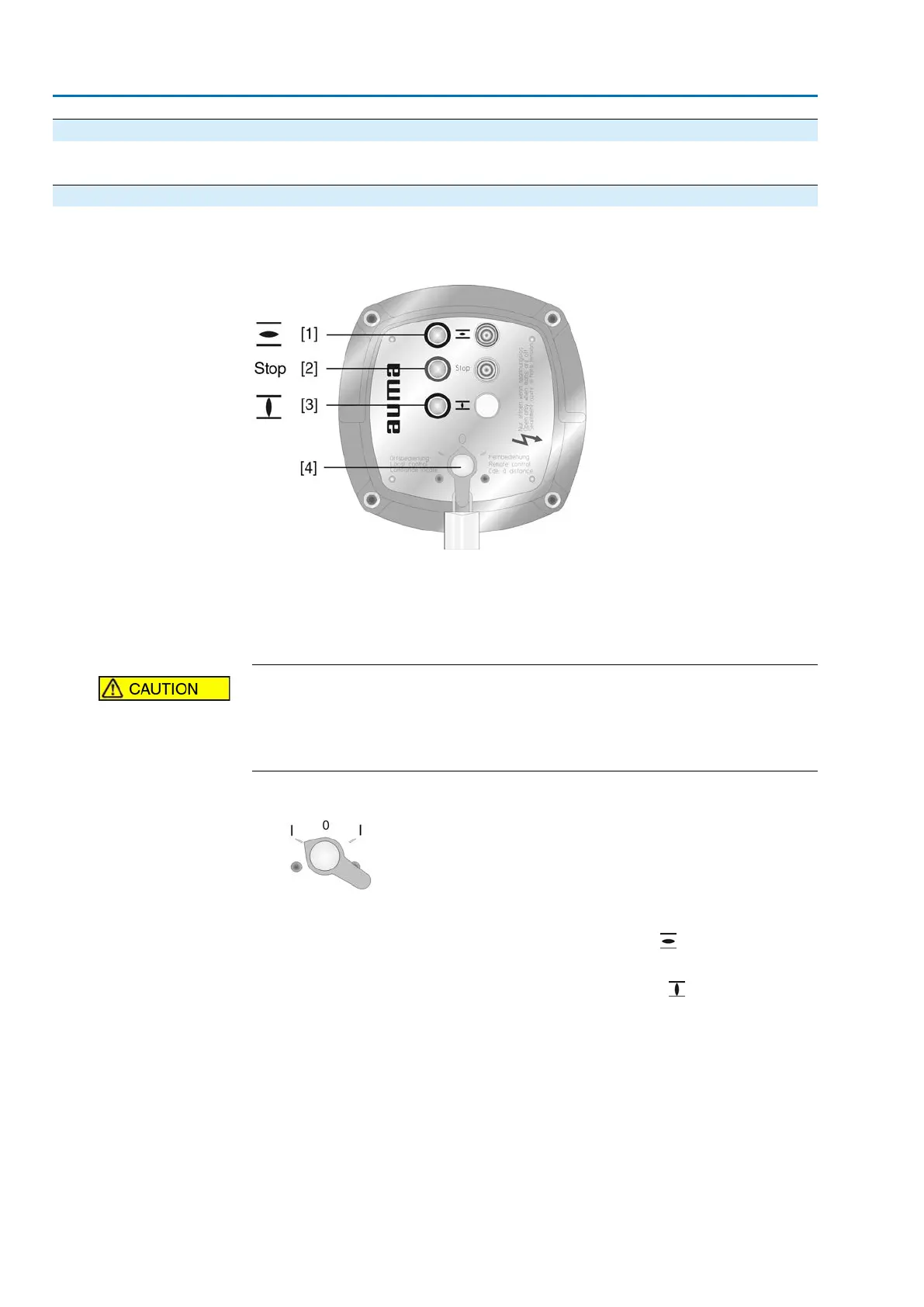

Figure 29: Local controls
[1] Push button for operation command in direction OPEN
[2] Push button Stop
[3] Push button for operation command in direction CLOSE
[4] Selector switch
Hot surfaces, e.g. possibly caused by high ambient temperatures or strong
direct sunlight!
Danger of burns
→
Verify surface temperature and wear protective gloves.
→
Set selector switch [4] to position Local control (LOCAL).
➥
The actuator can now be operated using the push buttons [1 – 3]:
-
Run actuator in direction OPEN: Press push button [1] .
- Stop actuator: Press push button [2] Stop.
-
Run actuator in direction CLOSE: Press push button [3] .
Information
The OPEN - CLOSE operation commands can be given either in push-to-run operation
mode or in self-retaining mode. In self-retaining mode, the actuator runs to the defined
end position after pressing the button, unless another command has been received
beforehand.
34
SA 07.2 – SA 16.2 /SAR 07.2 – SAR 16.2
Operation AM 01.1/AM 02.1
