5. Fasten multi-turn actuator with screws according to table.

Information: We recommend applying liquid thread sealing material to the

screws to avoid contact corrosion.

6. Fasten screws crosswise to a torque according to table.

Table 10:

Tightening torques for screws

Tightening torque [Nm]Threads

Strength class A2-80/A4–80

10M6

24M8

48M10

82M12

200M16

392M20

4.5. Accessories for assembly

4.5.1. Stem protection tube for rising valve stem

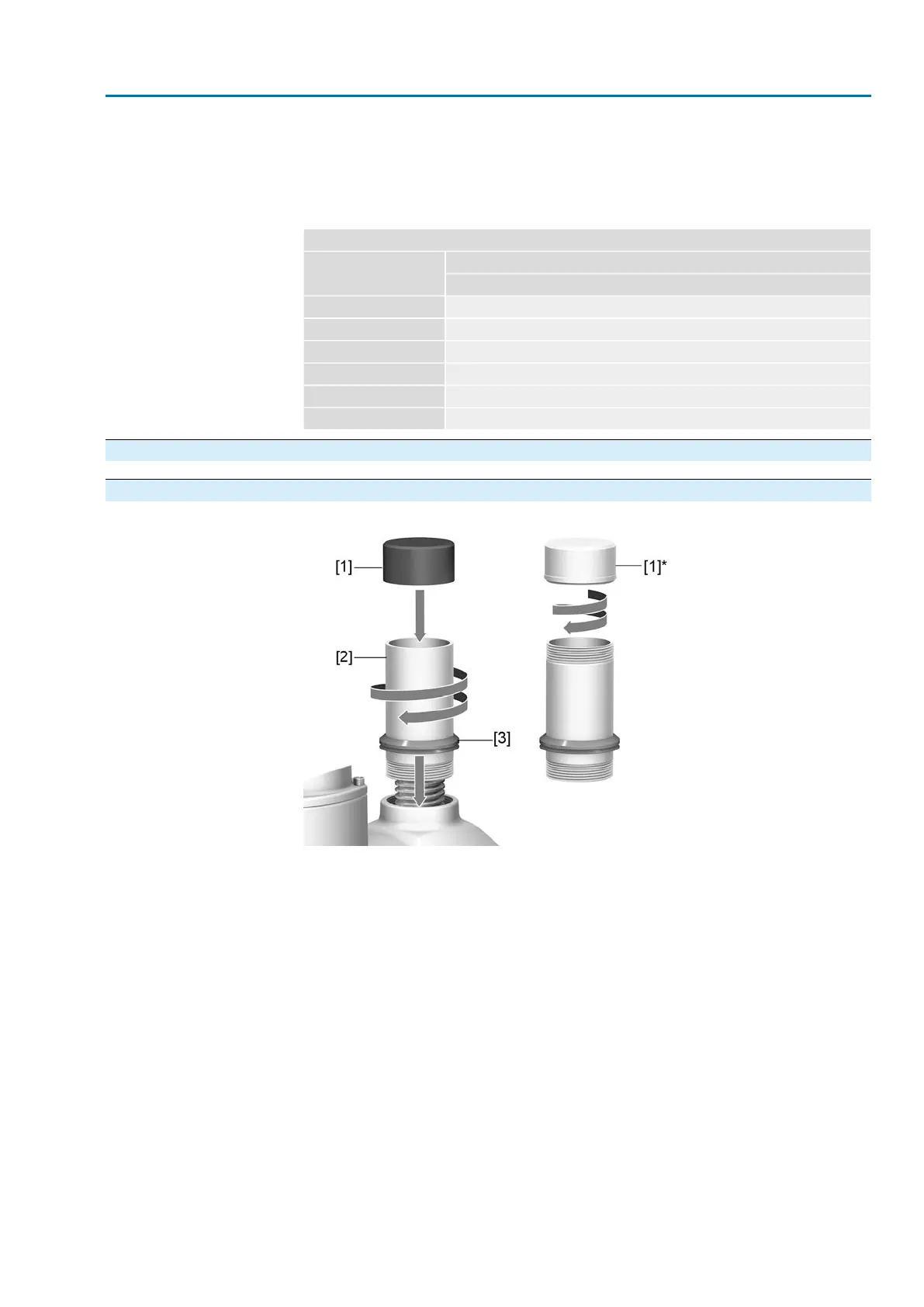

Figure 14: Assembly of the stem protection tube

[1] Protective cap for stem protection tube (fitted)

[1]* Option: Protective cap made of steel (screwed)

[2] Stem protection tube

[3] V-seal

1. Seal all threads with hemp, Teflon tape, or thread sealing material.

SA 07.2 – SA 16.2 /SAR 07.2 – SAR 16.2

AM 01.1/AM 02.1 Assembly

AUMA AM 01.1 User Manual
