4. Assembly
4.1. Mounting position
The product described in this document can be operated without restriction in any
mounting position.

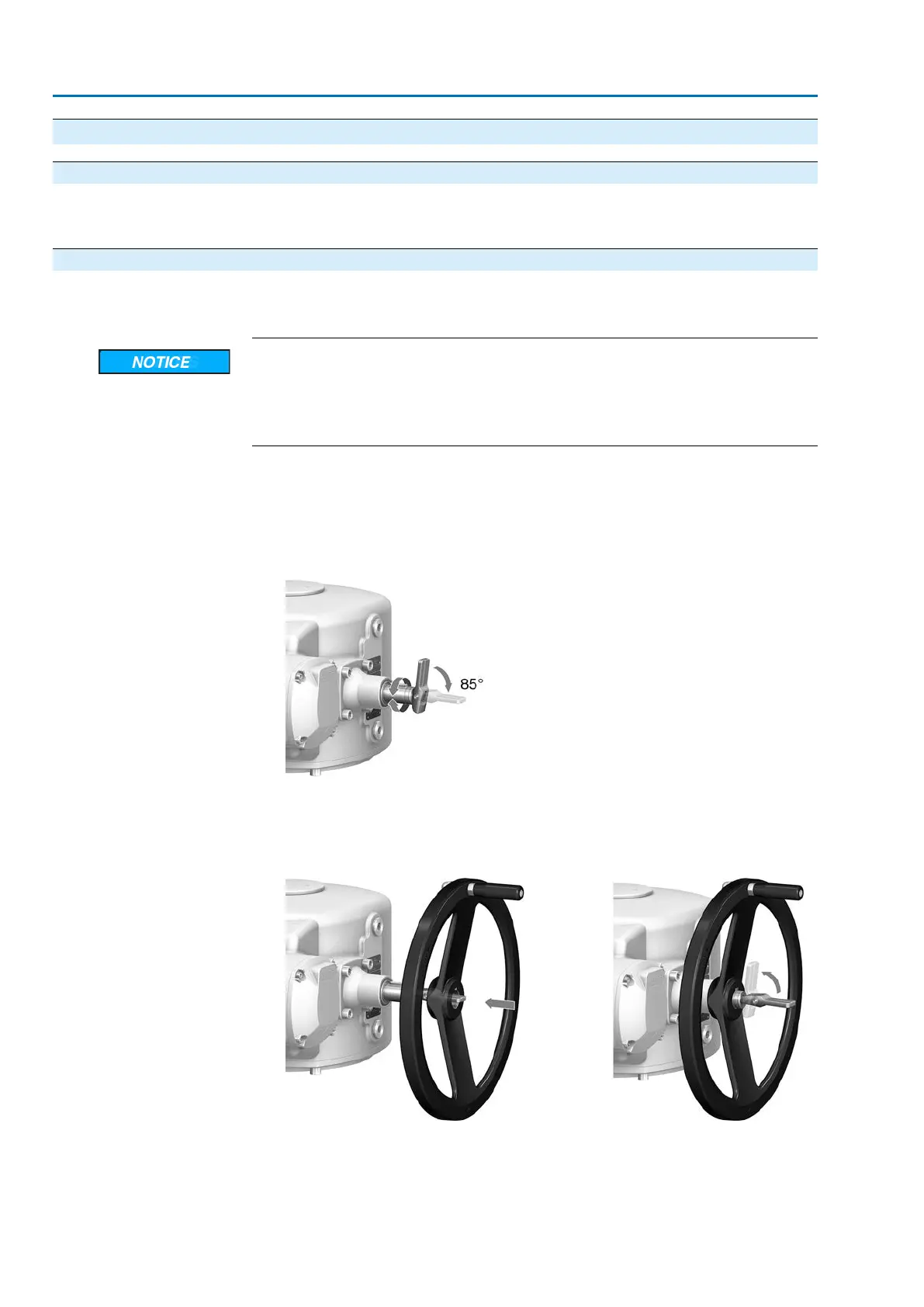

4.2. Handwheel fitting
Information For transport reason, handwheels with a diameter of 400 mm and larger are supplied
separately within the scope of delivery.
Damage at the change-over mechanism due to incorrect assembly!
→
Only pivot change-over lever manually.
→
Do NOT use extensions as lever for operation.
→
First engage manual operation correctly, then mount handwheel.
1. Manually lift the red change-over lever while slightly turning the shaft back and
forth until manual operation engages.
➥
Manual operation is properly engaged if the change-over lever can be shifted
by approx. 85°.
Figure 8:
2. Push handwheel over the red change-over lever then onto the shaft.
Figure 9:
3. Release change-over lever (should snap back into initial position by spring ac-
tion, if necessary, push it back manually).
14
SA 25.1 – SA 48.1 / SAR 25.1 – SAR 30.1
Assembly AM 02.1
