AUMA AM 02.1 User Manual

Hazardous voltage!
Risk of electric shock.
→
Disconnect device from the mains before opening.

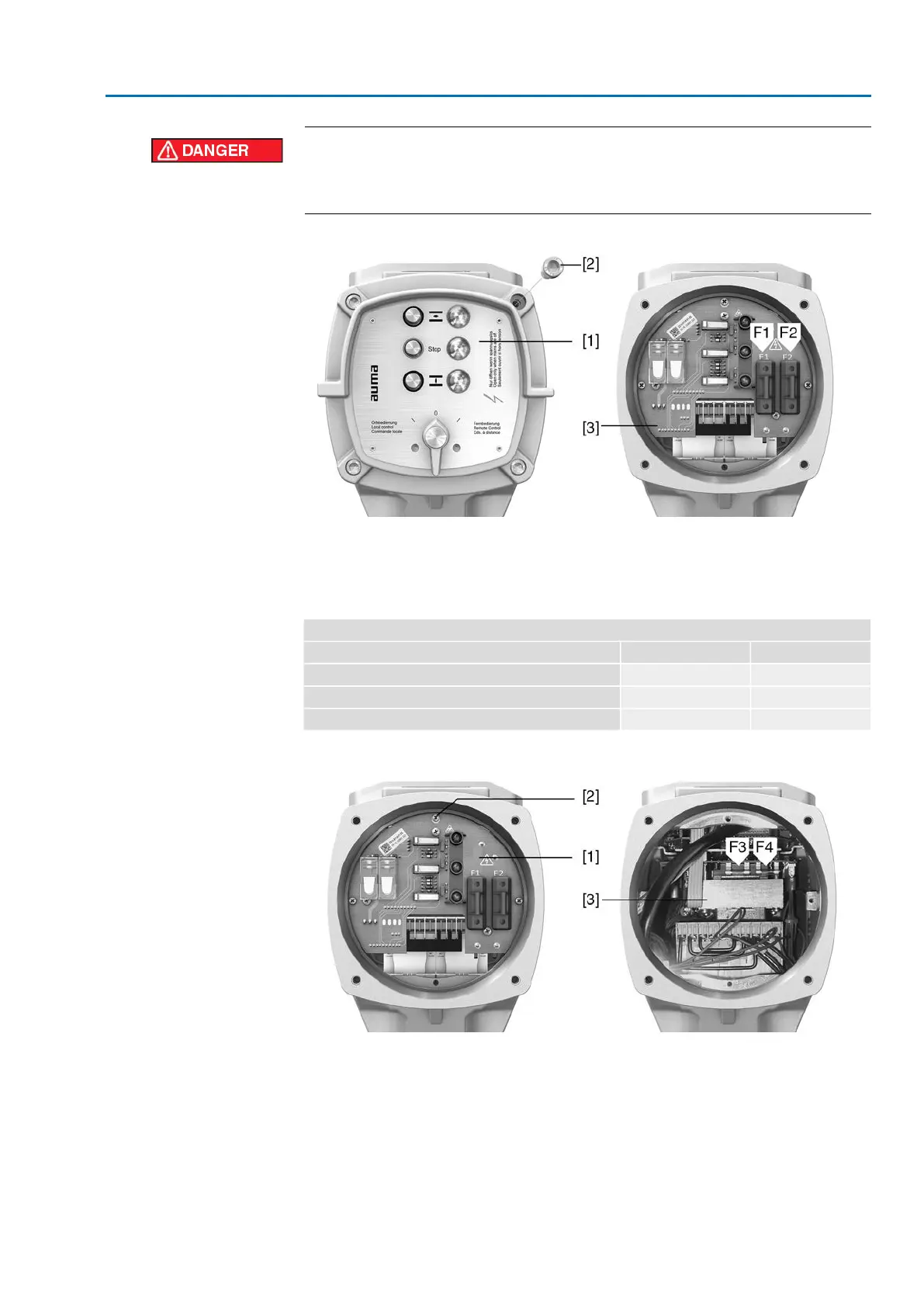

F1/F2 Figure 66: Access to the primary fuses F1/F2
[1] Local controls
[2] Signal and control board
[3] Power supply unit
Table 24:
Primary fuses F1/F2 (for power supply unit)
AUMA Art. no.:F1/F2G fuses
6.3 x 32 mmSize
K002.2771 A T; 500 VPower supply ≤ 500 V
K002.6652 A FF; 690 VPower supply > 500 V
F3/F4 Figure 67: Access to secondary fuses F3/F4
[1] Signal and control board
[2] Screws
[3] Power supply unit (under Signal and control board)
67
SA 25.1 – SA 48.1 / SAR 25.1 – SAR 30.1
AM 02.1 Corrective action
