6. AUMATIC DeviceNet design
With the AUMATIC DeviceNet, AUMA offers the ideal controls for the
connection of multi-turn actuators SA and part-turn actuators SG
to DeviceNet.
The integral controls AUMATIC DeviceNet consist of the following modules:
.
DeviceNet interface. This links the DeviceNet data with the internal elec-
tronics.
.
The logic board links the signals of the actuator with the local controls and
the DeviceNet interface and controls the reversing contactors or the
thyristors.
.
Local controls with selector switch and push-buttons, indication lights and
display. With the selector switch the control stations for local control
LOCAL – 0 – REMOTE for remote control are selected. The push-buttons
(OPEN) – Stop – (CLOSE) are used for the electric operation
of the actuator on site.
.
Plug/ socket connectors for easy mounting of the AUMATIC DeviceNet on
the actuators.
.
Motor controls: Reversing contactors or thyristors for motor controls.
.
DeviceNet connection board with terminals for the DeviceNet cable and
the termination resistor for bus termination.
Actuators which have already been installed can be retrofitted for DeviceNet
by exchanging the controls AUMATIC for controls AUMATIC DeviceNet.
Actuator controls AUMATIC AC 01.1 / ACExC 01.1
Operation instructions DeviceNet
13

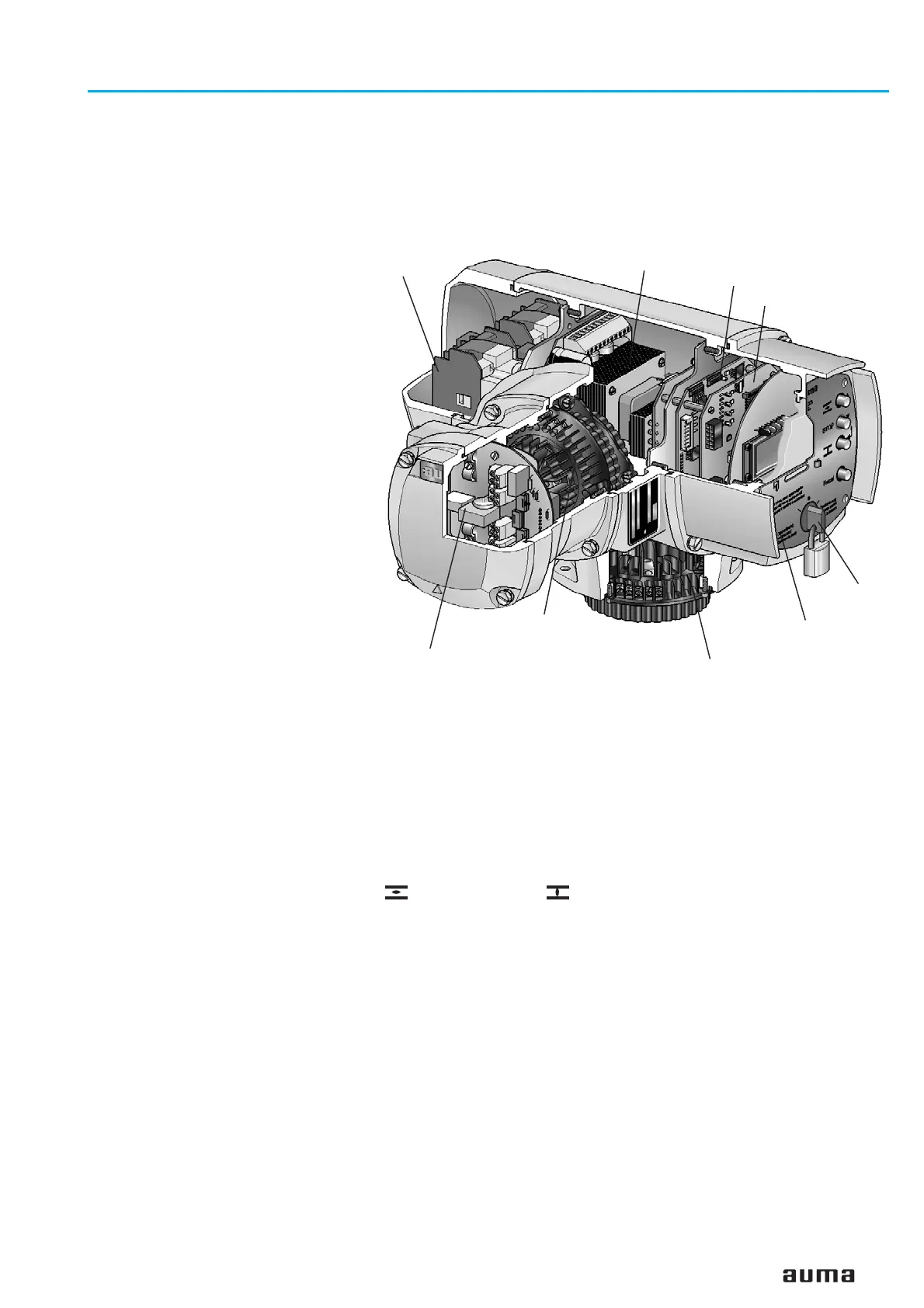

Figure C: AUMATIC DeviceNet
Motor controls
(switchgear)
Power supply unit
Logic board
DeviceNet interface
DeviceNet
connection board
Electrical connection
with AUMA plug/ socket connector
Plug/ socket
connector
Local controls
with display
Selector switch
