19. Description via DeviceNet interface

V21, V24, V27, V30 LEDs of the digital customer inputs (option); they are illuminated when

+ 24 V are applied to the inputs.

V6, V7, V8, V9 Description see page 54.

Actuator controls AUMATIC AC 01.1 / ACExC 01.1

DeviceNet Operation instructions

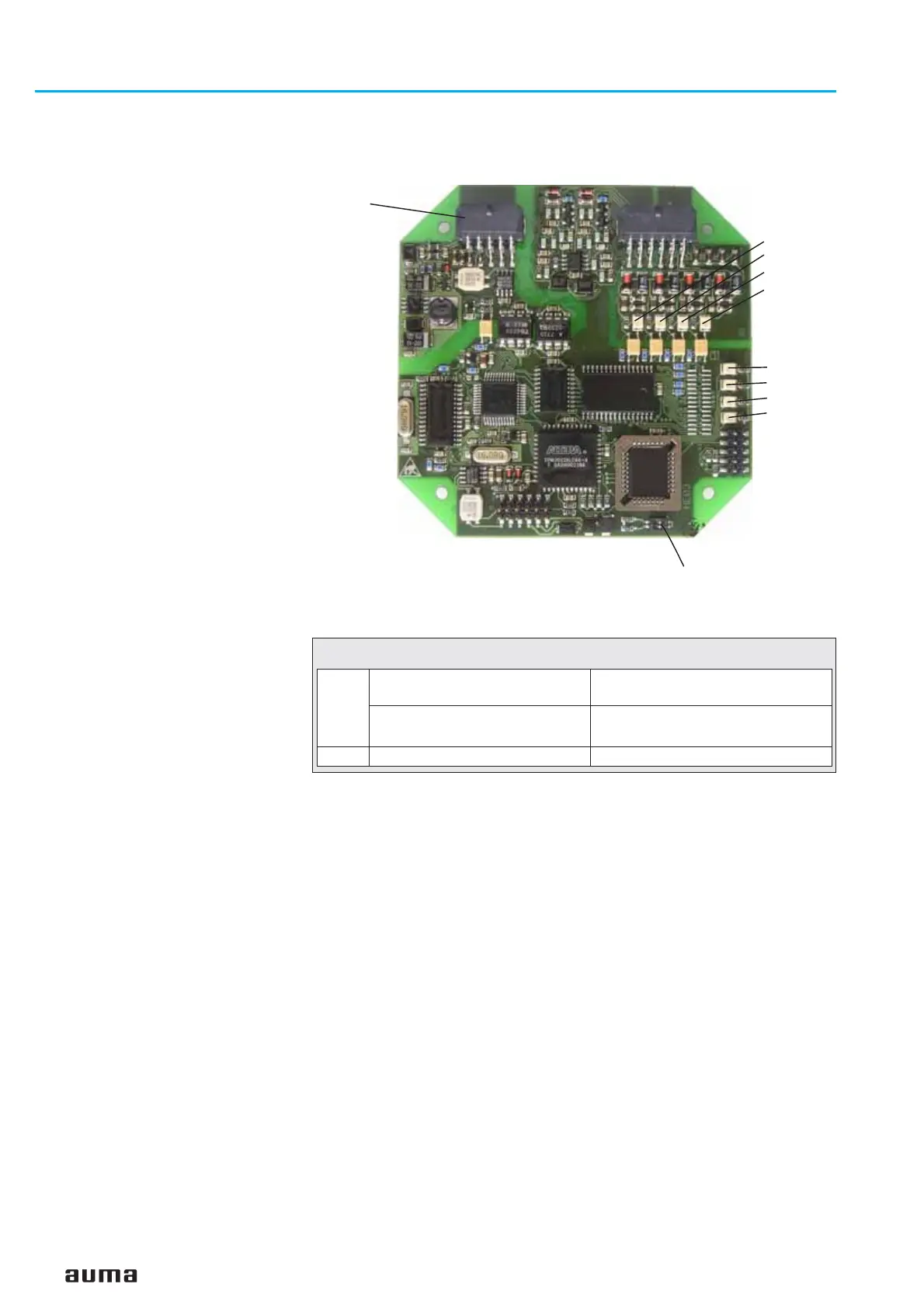

Figure N: DeviceNet interface

V21

V24

V27

V30

S1-1

Only one DeviceNet interface

available

OFF

Two DeviceNet interfaces

available

1st DeviceNet interface

2nd DeviceNet interface: ON

S1-2 Spare OFF

Table 12: DIP switch S1: Configuration of the DeviceNet interface

Default Chapter2
- Table of Contents2
1 Safety Instructions4
- Range of Application4
- Commissioning (Electrical Connection)4
- Maintenance4
- Warnings and Notes4
2 Short Description4
3 Transport and Storage5
4 General Information about Devicenet5
- Devicenet Cable6
- Devicenet Topology6
- Devicenet Communication7
- Devicenet Object Model7
- Protection Functions8
5 Technical Data9
6 AUMATIC Devicenet Design13
7 Electrical Connection14
- Power Supply (Standard)14
- Remote Position Transmitter14
- AUMATIC on Wall Bracket14
- Fitting of the Connection Housing15
- Test Run15
- Check Limit and Torque Switching15
- Bus Connection (Standard)15
- Mains and Bus Connection for Explosion-Proof Version17
- Bus Cables19
- Setting the Devicenet Address and the Baud Rate Via the Local Controls20
- Further Parameters of the Devicenet Interface23
8 Commissioning with Controls Introduction24
- Functions of the AUMATIC with Devicenet24
- Setting of the Devicenet Interface of the AUMATIC24
- Communication Model24
- Object Model of the AUMATIC24
- List of Objects Available in the AUMATIC25
- Bus Access25
- Explicit Messages25
- Poll I/O Connection25
- Configuration of the Poll I/O Connection Via the Local Controls25
- Configuration of the Poll I/O Connection Via the Devicenet Configuration Tool25
9 Poll I/O Data Interface of the AUMATIC26
- Description of the Input Data26
- Detailed Description of the Input Data31
- Description of the Output Data33
- Detailed Description of the Output Data34
10 Operation Parameters of the Actuator35
11 Description of Actuator Functions39
- Operation Commands for OPEN / CLOSE Operation39
- Positioner40
- Stepping Mode40
12 Safety Function40
13 Release Function of the Local Controls (Option)41
14 Additional Control Inputs (Option)42
15 Combination Fieldbus / Standard Interface (Option)44
16 EMERGENCY STOP Function (Option)45
17 Redundant Bus Connection with Component Redundancy (Option)47
- Settings for the Redundant Devicenet Interface 2 (Component Redundancy)47
- External Change-Over of the Communication Channels48
- Details of the Change-Over48
18 Indication and Programming of the AUMATIC49
- Software Parameters of the Devicenet Interface49
- Menu Indications49
19 Description Via Devicenet Interface52
- Assignment of the Customer Inputs of the Devicenet Interface (Option)53
- Devicenet Connection Assignment53
20 Trouble Shooting and Corrective Actions54
- Optical Signals During Operation54
- Status Indications in the Display55
- Devicenet Diagnosis Indication in the Display55
- Offline Connection Set of the AUMATIC56
- Reset of the AUMATIC to the Factory Settings56
- Actuator Can Not be Controlled Via Devicenet57
21 Appendix A EDS File59
22 Appendix B Standard Wiring Diagram60
- Legend to Standard Wiring Diagram61
23 Appendix C Proposed Wiring Diagrams62
24 Appendix D Literature References65
25 Appendix E Connection of the Screen for AUMATIC Acexc65
- Index67
- Addresses of AUMA Offices and Representatives68
