7.9 Bus cables Only cables conforming to the DeviceNet wire specification (www.odva.org)
may be used for a DeviceNet network.
The bus cable must be laid at a distance of at least 20 cm from other cables.
It should be laid in a separate, conductive and earthed cable trunking.
It must be ensured that there are no potential differences between the indi-
vidual stations on the DeviceNet (Perform a potential compensation).
Thick Cable As a standard, the thick cable is used for the trunk line.
Thin Cable The thin cable is used for the drop lines
Actuator controls AUMATIC AC 01.1 / ACExC 01.1
Operation instructions DeviceNet
19
Baud rate
Maximum
trunk
line length
(thick cable)
Maximum
accumulated
drop line length
Maximum
single
drop line length
125 kbit/s 500 m 156 m 6 m
250 kbit/s 250 m 78 m 6 m
500 kbit/s 100 m 39 m 6 m
Table 7
Colour Function Application
Red V+ (24 V DC) DeviceNet voltage supply
White CAN_H Data cable
Bare Drain Screened cable
Blue CAN_L Data cable
Black V– (0 V DC) DeviceNet voltage supply
Table 8

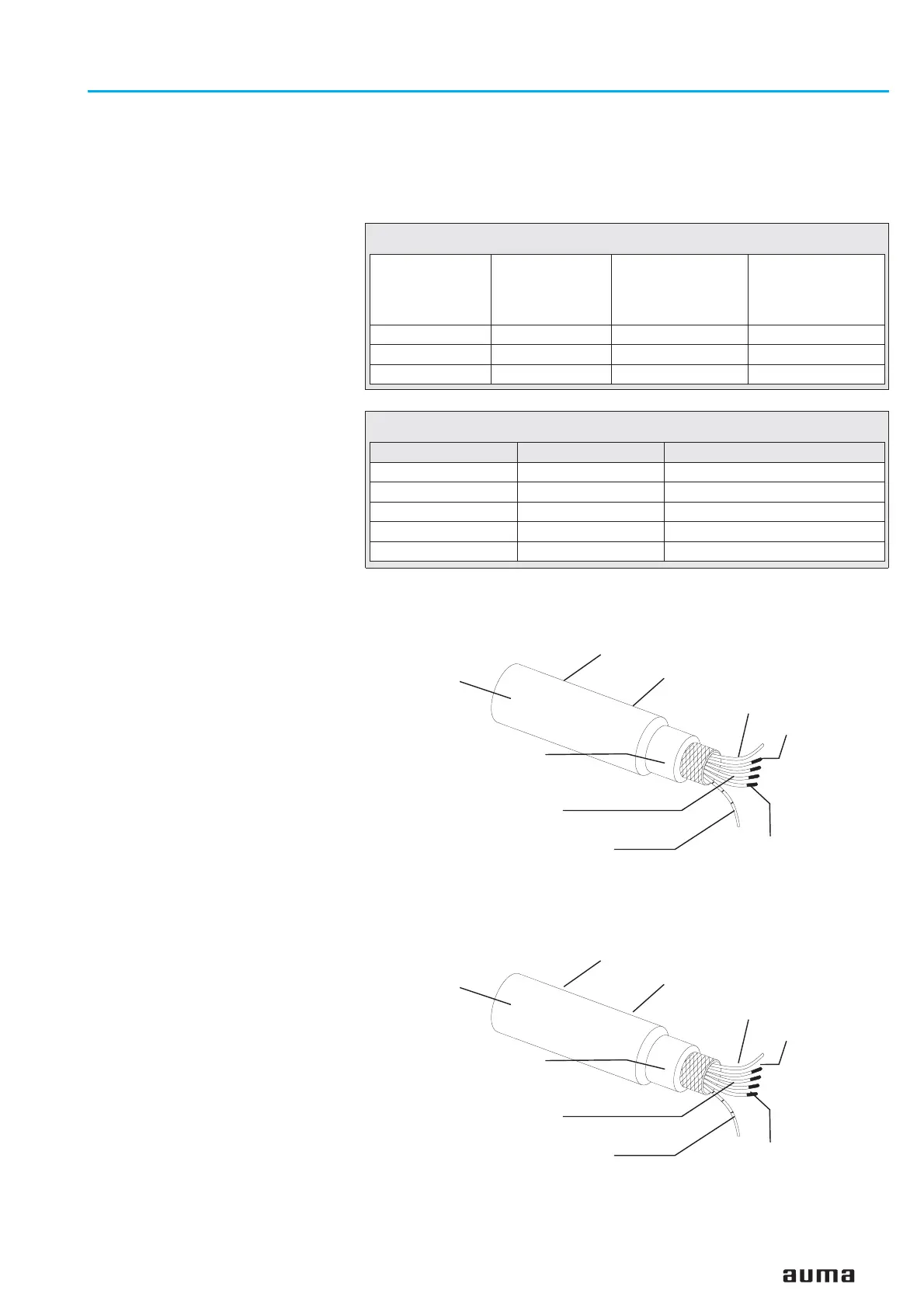

Figure E-1
12.2 mm outer diameter
Copper screen, tin-plated,
(65 % coating)
Polypropylene dummy wire
Sheath
Full-length Mylar band
Aluminium /Mylar screen
covers each wire pair
Drain terminal: (18 AWG 19 x 30)
tin-plated stranded copper wire
Data cable:
blue-white,
(18 AWG 19 x 30)
tin-plated stranded
copper wire , insula-
tion made of foamed
PE/PE
Power cable (DC):
red-black, (15 AWG 19 x 28)
tin-plated stranded copper wire
Figure E-2
6.9 mm outer diameter
Polypropylene dummy wire
Data cable:
blue-white,
(18 AWG 19 x 36)
tin-plated stranded
wire, insulation
made of foamed
PE/PE
Power cable (DC):
red-black, (22 AWG 19 x 34)
tin-plated stranded copper wire
Sheath
Full-length Mylar band
Aluminium /Mylar screen
covers each wire pair
Drain terminal: (22 AWG 19 x 34)
tin-plated stranded copper wire
Copper screen, tin-plated,
(65 % coating)
