18. Indication and programming of the AUMATIC
18.1 Software parameters of the DeviceNet interface

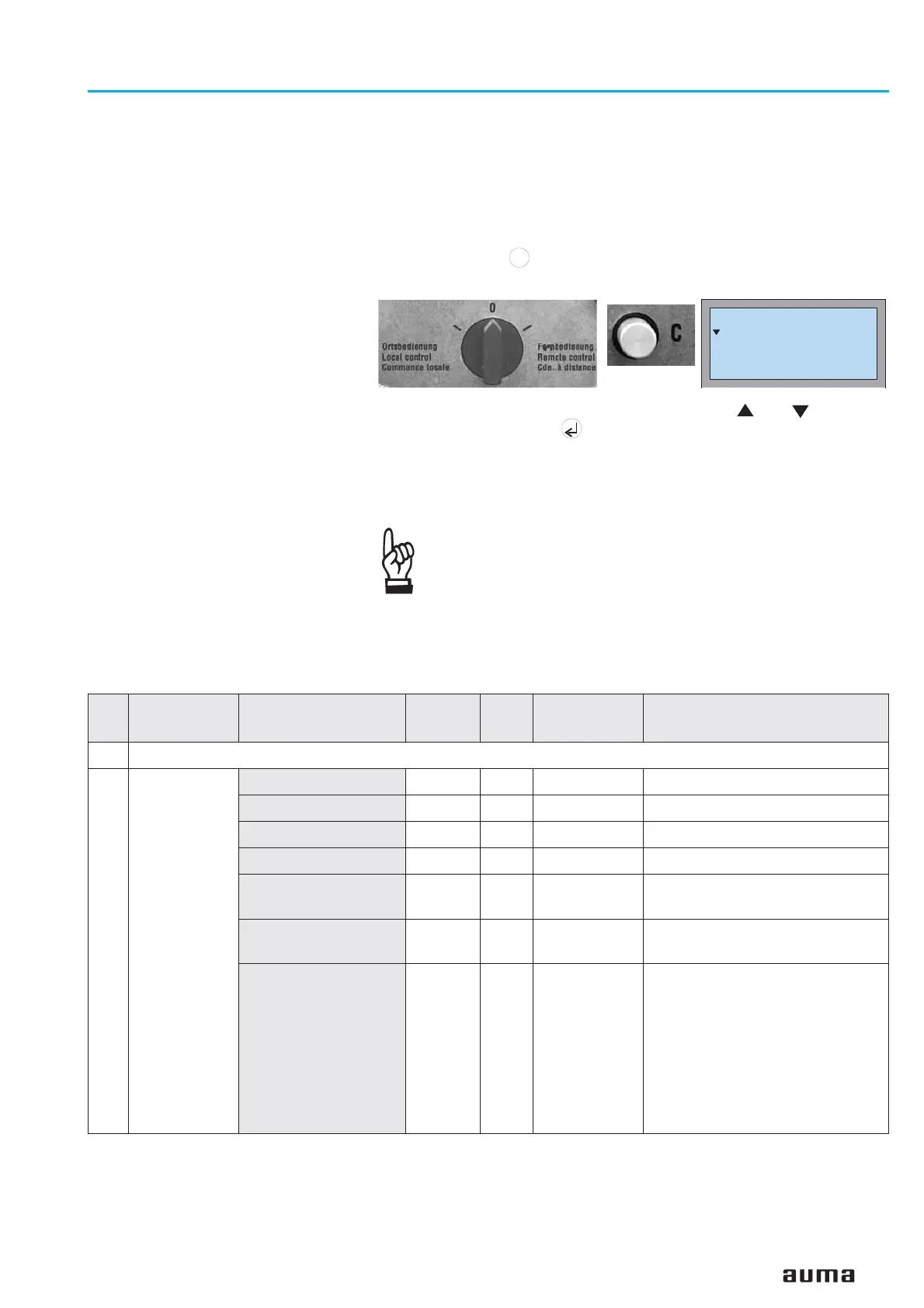

To go to the display indications and the software parameters:
.
Set selector switch to position OFF (0), figure M.
.
Switch on supply voltage.
.
Select menu indication M0 :
Press push-button in one of the status indications longer than
2 seconds:
> 2 Sec.
.
Select the sub-items required with the push-buttons and .
.
Confirm the selection with .
A list of additional parameters is included in the operation instructions to the
actuator (multi-turn actuators SA(R) . . ./ part-turn actuators SG . . . with
AUMATIC AC . . .).
18.1.1 Menu indications Parameters with the wild card “x” in the submenu can be
indicated and changed:
x = 0 : indicate only (grey background)
x = 1 : indicate and change (white background)
(only possible in selector switch position OFF)
To change a parameter, a password must first be entered (for information on
how to enter a password see operation instructions of the actuator).
49
Actuator controls AUMATIC AC 01.1 / ACExC 01.1
Operation instructions DeviceNet
C
M0HAUPTMENUE
SPRACHE/KONTRAST
EINSTELLUNGEN
BETRIEBSDATEN
Figure M
Subgroup Parameter
name
Sub
menu
Standard
value
Min/
Max
Valuetext
Note
M1 SETTINGS
M1L DEVICENET
GENERAL
VENDOR ID M1L00
129 Manufacturer ID
DEVICE TYPE M1L01
Device type
PROD. NAME M1L02
Product name
PRODUCT CODE M1L01
1 Product version
MAJOR
REVISION
M1L03
1 Major revision of the DeviceNet
interface
MINOR
REVISION
M1L04
1 Minor revision of the DeviceNet
interface
CONFIG.
CONS.VALUE
M1L05
0 Parameter showing changes of
the DeviceNet programming.
Each change of value of one
parameter of the DeviceNet inter-
face increments the value of the
parameter by 1, i.e. it is therefore
possible to determine changes of
the programming, preset to 0 in
the factory
