20.2 Status indications in the display
The status indications (Group
S) in the display show the current operation
mode as well as faults and warnings. For detailed notes regarding the
indication and operation see the appropriate operation instructions of the
actuator.
20.3 DeviceNet diagnosis indication in the display
The information contained in the diagnosis indication (Group
D) is only
provided for the AUMA service and for enquiries in the factory. In the
subgroup
DR,DS,DT,DU,DV status information can be requested of
DeviceNet.
To go to the DeviceNet diagnosis indications:
.
Set selector switch at the AUMATIC to position OFF (0), figure P.
.
Switch on supply voltage.
.
Press push-button and hold it until the group D0 appears (menu
indications
M are hereby skipped).
.
Select the sub-items required with the push-buttons and .
.
To go back to the status indication:
Press push-button briefly once.
55
Actuator controls AUMATIC AC 01.1 / ACExC 01.1
Operation instructions DeviceNet
C

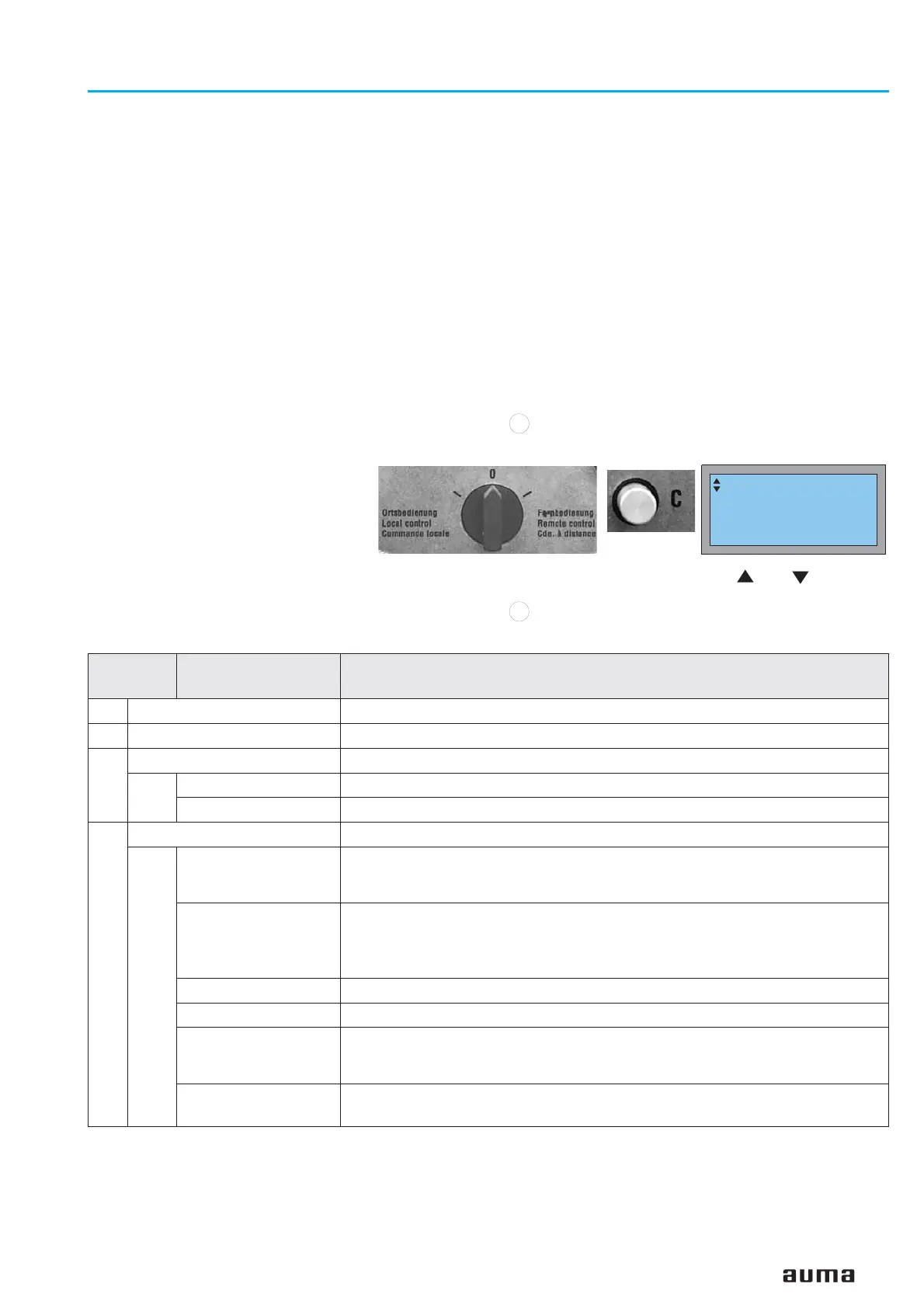

Figure P
D0ENDPOS. INPUTS
PULL DOWN INPUTS
C
Menu Abbreviation
inthe display
Note
DR DN1 HRDWR. VER.
Hardware version of the DeviceNet interface 1
DS DN1 SFTWR.VER.
Softwareversion of the DeviceNet interface 1
DT DN1 BUS STATUS
Status of the DeviceNet interface 1
POLL IDLE
POLL IDLE connection is available
DATA EXCHANGE
POLL connection established
DU DN1 NET STATUS
Network status of the DeviceNet interface 1
NO POWER/
NOT ONLINE
AUMATIC is not online:
- Dup_MAC_ID Test not yet finished
- possibly no DeviceNet voltage supply available
ONL.+NOT CONNECTED
AUMATIC is online, but there is no connection
- AUMATIC has been submitted to the Dup_MAC_ID test, is online, but there is
no connection to another device.
- The actuator is not assigned to any master
LINK OK
AUMATIC is online (optimum status)
CONNECTION TIMEOUT
One or more I/O connections are in the Time-Out status
CRITICAL LINK FAI-
LURE
Unsuccessful communication. The actuator has detected a fault and has disab-
led the communication to the network (Duplicate MAC ID or Bus-off). Possibly
fault assignment via Offline CONNECTION SET possible
COMMUNICATION
FAULT
Communication fault:
AUMATIC has detected a network access fault and is in the communication fault status.
