auris Monarch Platform - Procedure Overview and Component Descriptions

54 300-002547-00 rev7
Overview
Each procedure consists of tasks and each task has one or more steps. In
performing a procedure, you will typically perform the following steps:
1. Drive the Monarch Bronchoscope System forward to the main carina.
2. Initialize navigation.
3. Drive the Monarch Bronchoscope System to nodule.
4. Confirm nodule location.
5. Align the Monarch Bronchoscope System with nodule.
6. Insert the biopsy instrument.
7. Target and actuate the biopsy instrument.
Functional Descriptions of Monarch Components
Monarch Bronchoscope and Monarch Bronchoscope
Sheath

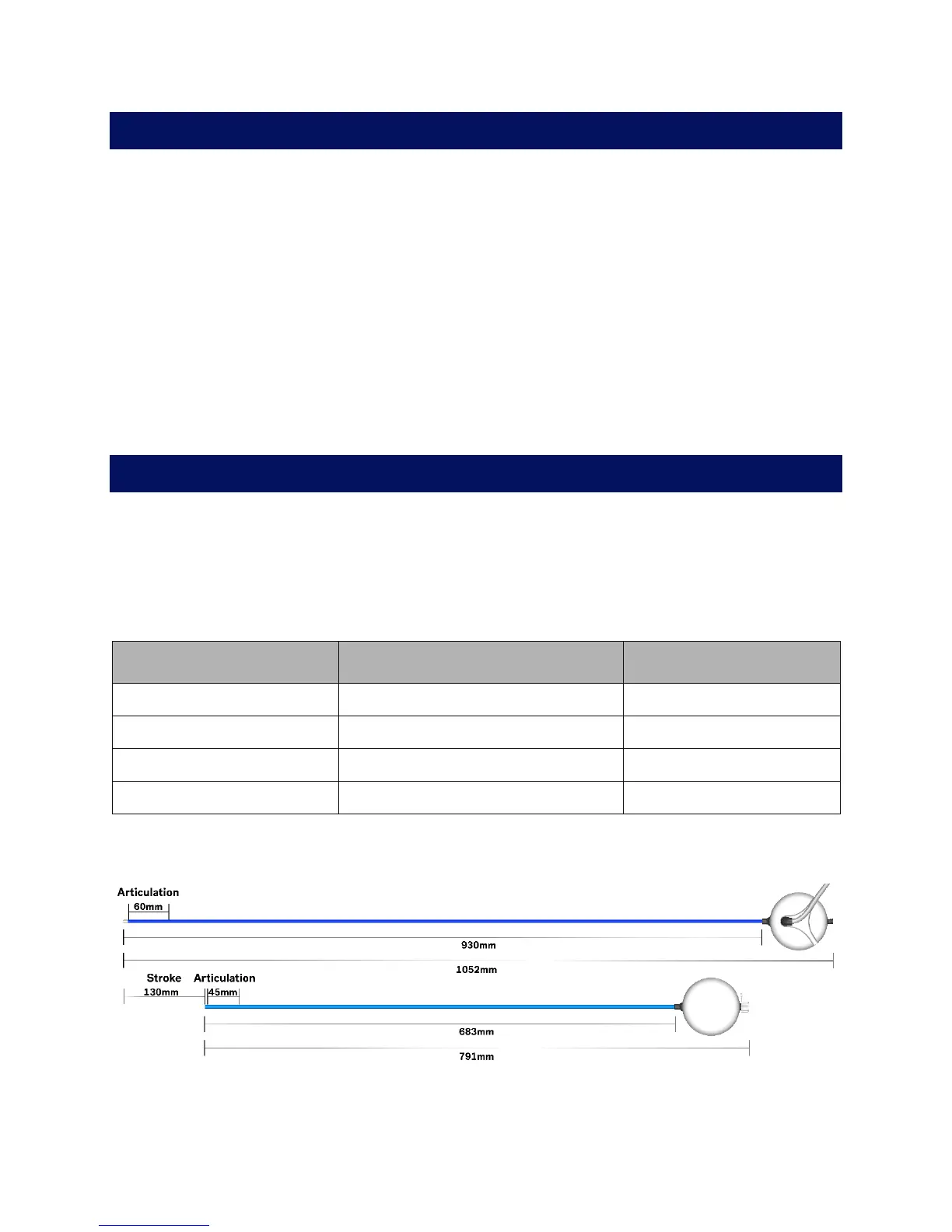

The Monarch Bronchoscope System works with two independently controlled
telescoping, articulating devices. The dimensions of each are as follows:
Monarch Bronchoscope Sheath Monarch Bronchoscope
Outer Diameter 6.0mm 4.4mm
1
Lumen Diameter 4.7mm 2.1mm
Working Channel Length 791mm
2
1052mm
3
Articulation Section Length 45mm 60mm
1
Diameter measured at the Bronchoscope tip.
2
Takes into account use of the sheath valve.
3
Takes into account the bronchoscope valve.
