CT Area

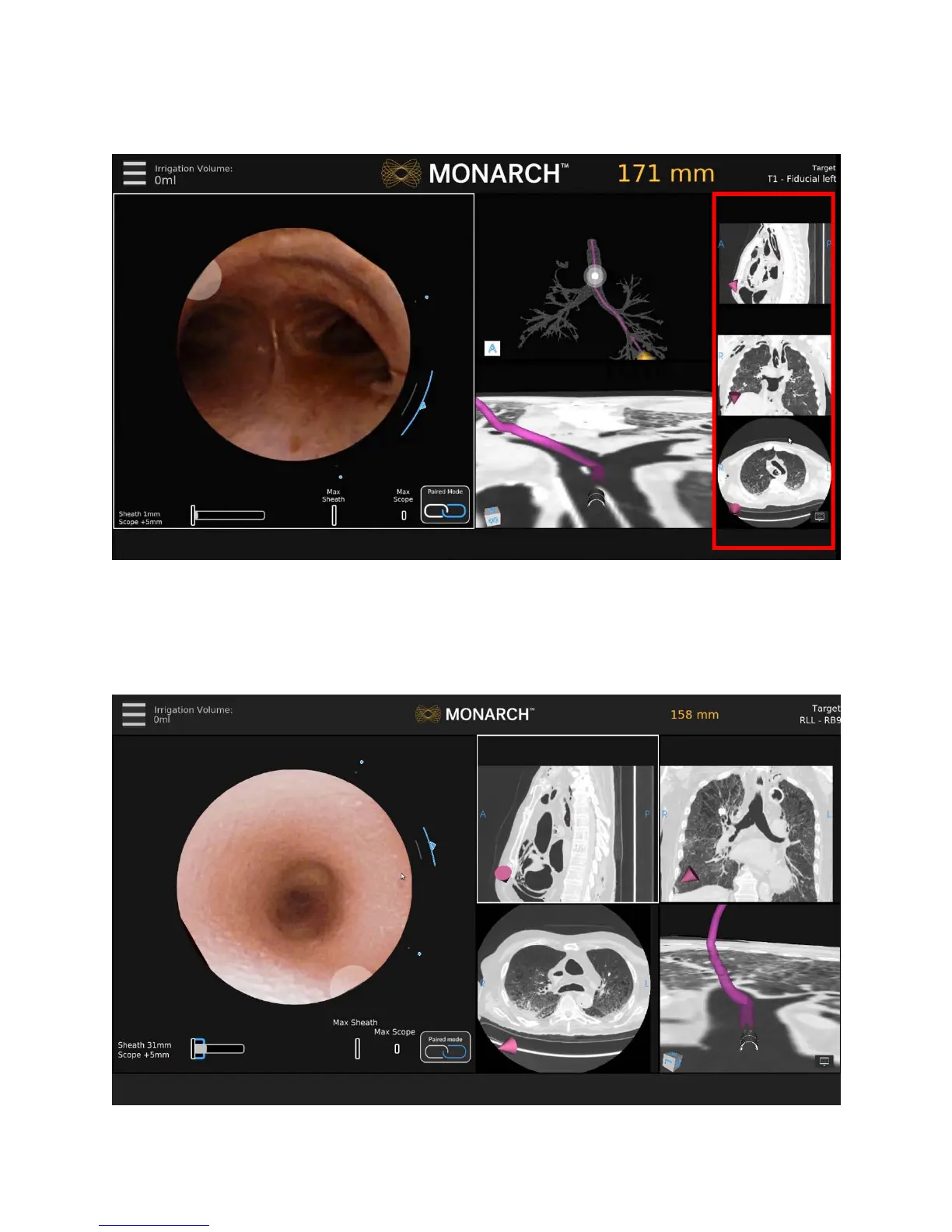

The right column offers a collection of supplementary CT views. The CT Area

does not scroll and views cannot be promoted from the CT Area to Primary Area.

Instead, the views can be selected for zoom to show more detail. When

selected, an alternative view window configuration appears with enlarged CT

slices as shown below.
