EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10
1–14
Chapter 1: Getting Started
1
1–14

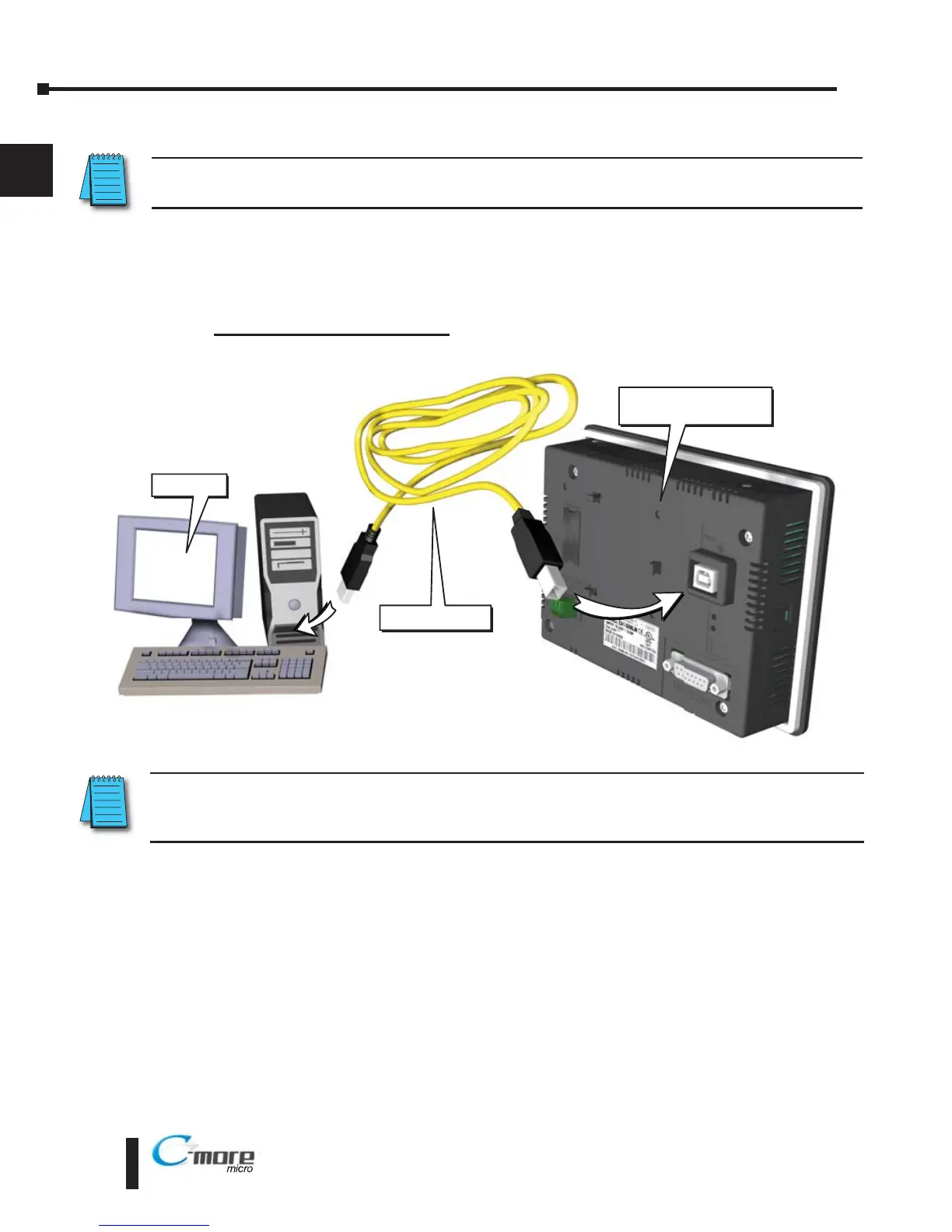

Step 6 – Connect C-more Color Micro-Graphic Panel to Computer
NOTE: Install C-more Micro-Graphic Programming software before connecting the panel to the PC to ensure
the panel drivers install correctly.
Use a programming cable such as USB-CBL-AB6 from a USB port type A on the project
development PC to the USB port type B on the C-more Color Micro Graphic Panel as shown
below. Any standard Type A to Type B USB cable can be used such as a standard USB printer
cable, maximum length 15’.
USB Programming Cable
NOTE: When the panel is powered through Port1 from a connected PC, the screen brightness is diminished
because the panel is running in Low-Power Mode. Connect an external 12-24 VDC power source when the
panel is installed in its application for full brightness.
To Next Page
