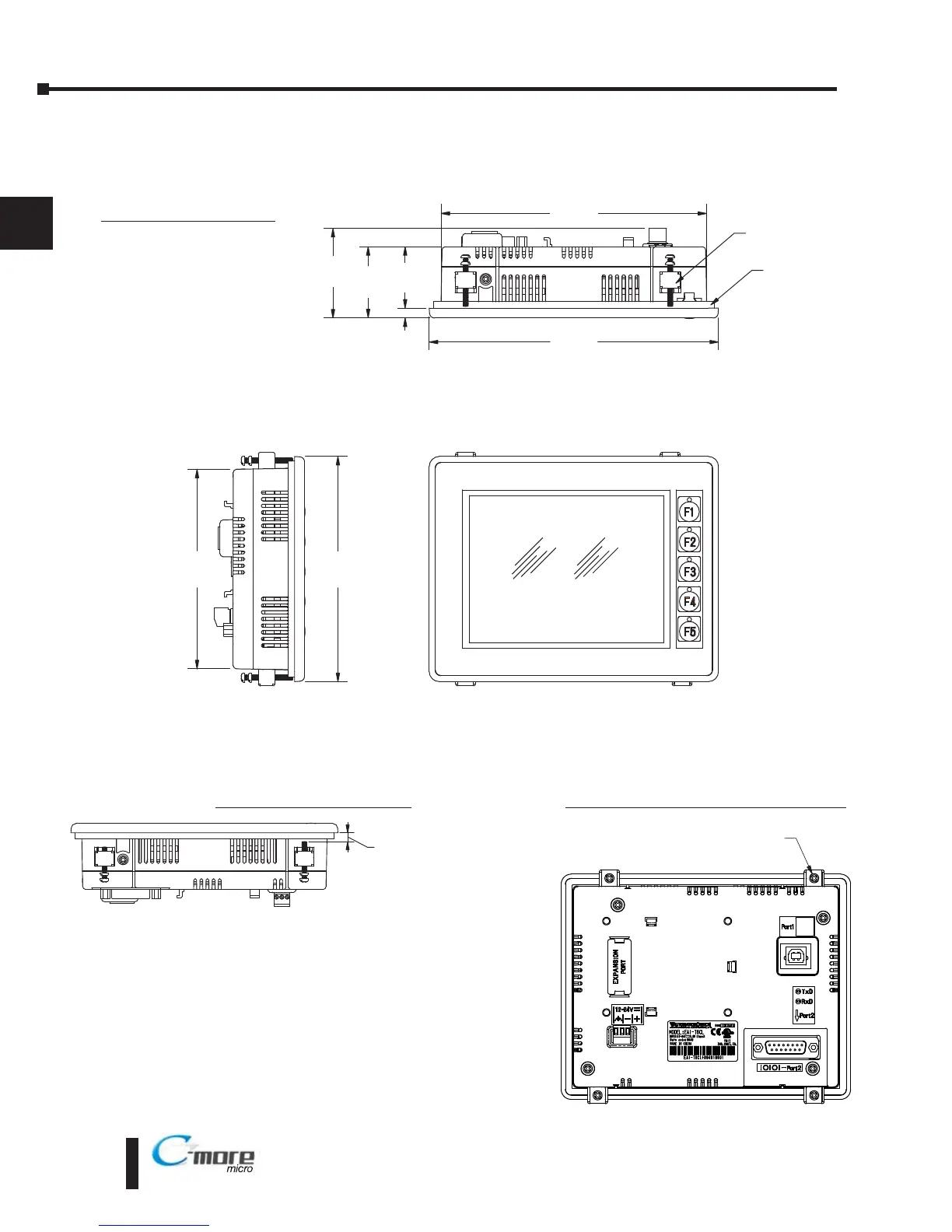

EA1-T6CL Panel Dimensions

2–8

Chapter 2: Specifications

EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10

6.295

[159.9]

6.850

[174.0]

.236

[6.0]

1.453

[36.9]

1.689

[42.9]

2.13

[54.1]

GASKET

MOUNTING CLIP

(4) places

Units: Inches [mm]

4.770

[121.3]

5.331

[135.4]

ENCLOSURE MOUNTING

THICKNESS RANGE

0.04” - 0.2” [1 - 5mm]

MOUNTING CLIP

SCREW TORQUE RANGE

21 - 28 oz-in [0.15-0.2 Nm]

Enclosure Thickness Mounting Clip Screw Torque

Panel Dimensions

Units: Inches [mm]
