Accessing the System Setup Screens

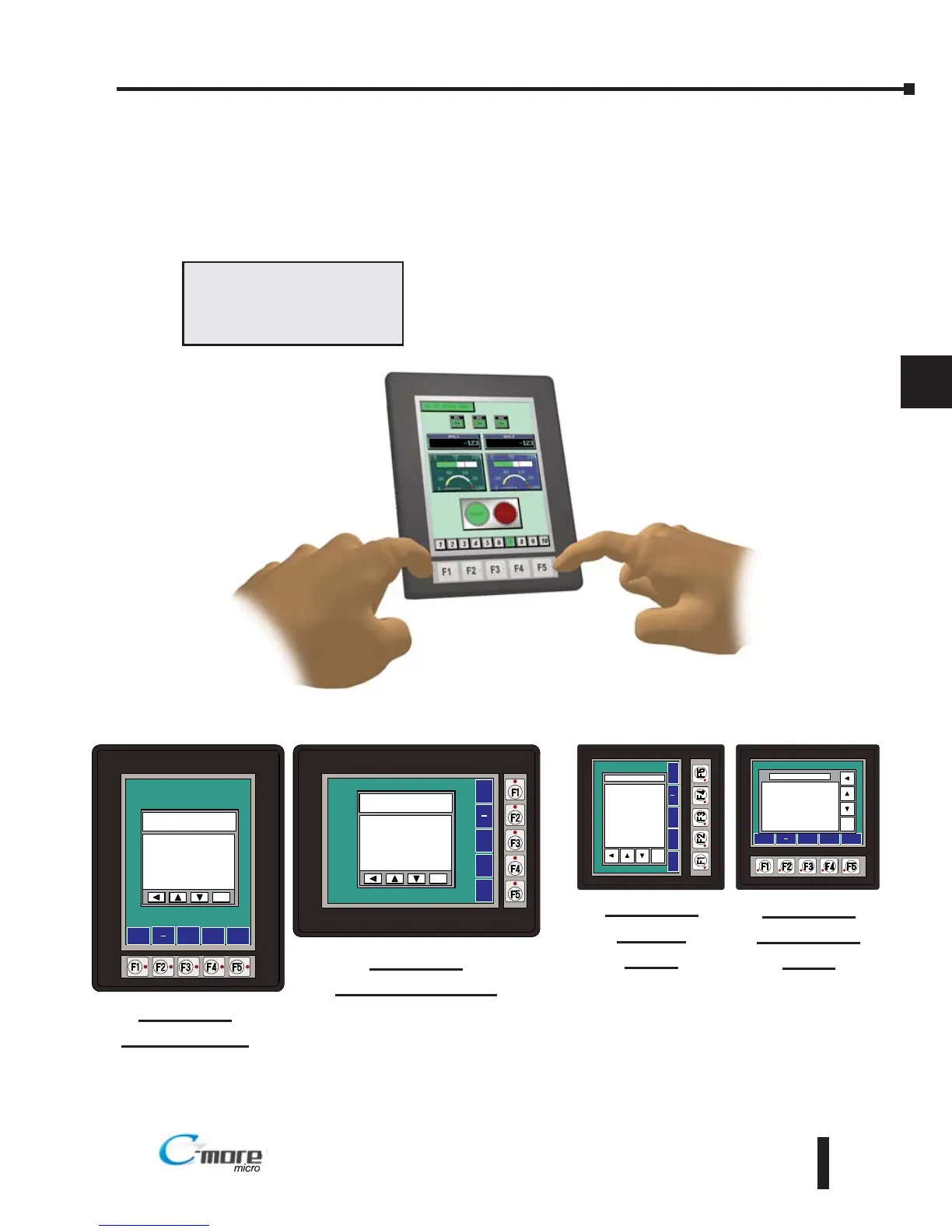

To access the Setup Menu of the panel System Setup Screens, press the panel’s BAK [F1] and
ENT [F5] function keys simultaneously for three (3) seconds as shown below. The System
Setup Screens’ Setup Menu will be displayed as shown at the bottom of this page.
Press both the F1 and F5 function
keys simultaneously for 3
seconds to bring up the System
Setup Screens’ Setup Menu.
BAK
UP
DWN ENT
1 Information >
2 Setting >
3 Test Menu >
4 Ex t >
ENT
SETUP MENU
BAK
UP
DWN
ENT
1 Information >
2 Setting >
3 Test Menu >
4 Exit >
ENT
SETUP MENU
Chapter 5: System Setup Screens
5–3
EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10
®
5
BAK UP DWN ENT
ENT
SETUP MENU
1 Information >
2 Setting >
3 Test Menu >
4 Exit
EA1-T6CL
Landscape Mode
EA1-T6CL
Portrait Mode
UP
DWN
ENT
SETUP MENU
1 Informat on >
2 Se ting >
3 Test Menu >
4 Exit
ENT
BAK
EA1-T4CL
Landscape
Mode
EA1-T4CL
Portrait
Mode
