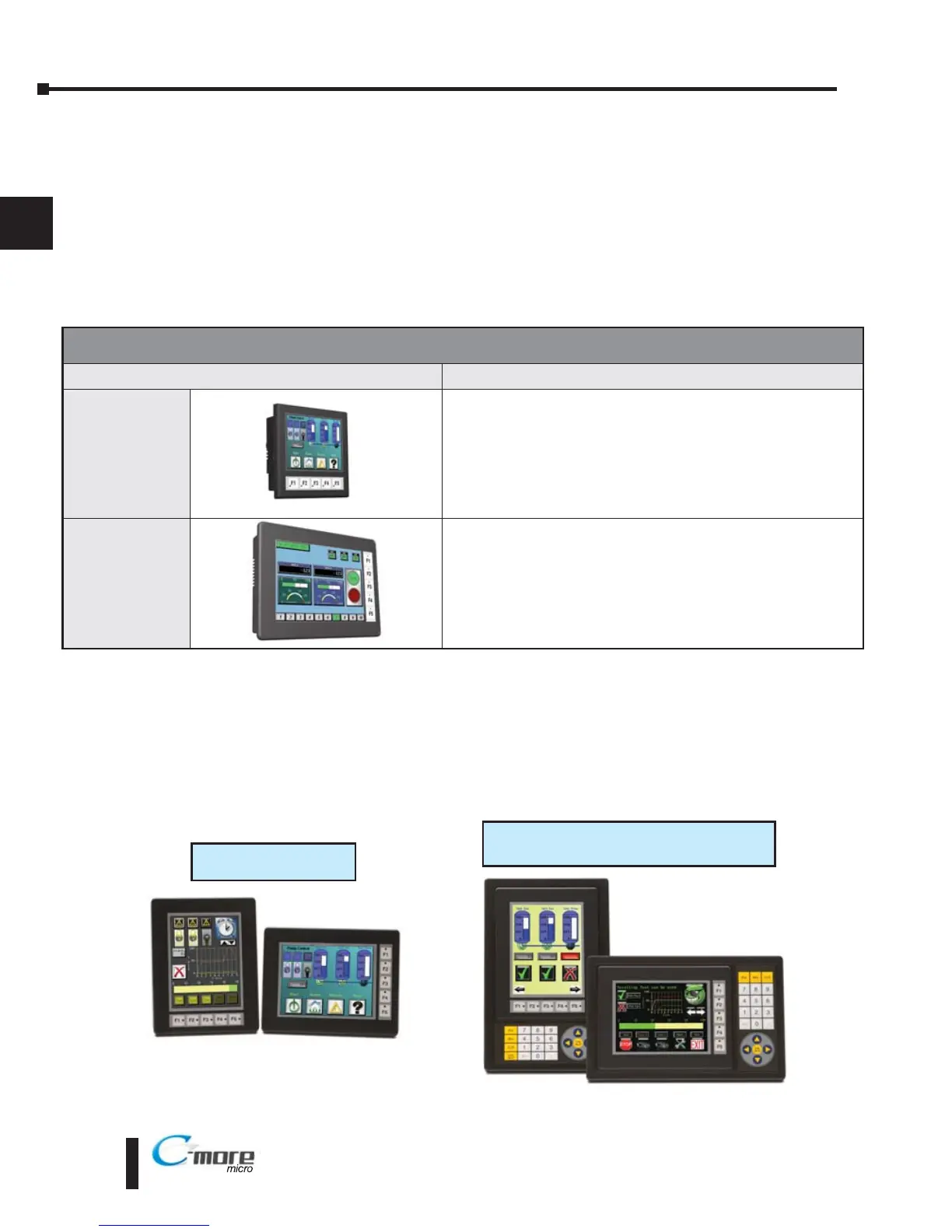

EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10
Available Models
The C-more Color Micro-Graphic panels expand the next generation of HMI panels brought
to you by AutomationDirect. They have been designed to display and interchange graphical
data from a PLC by viewing, using the function keys, or touching the screen. See Chapter 3:
Accessories for details on the available accessories for the C-more Color Micro-Graphic panels.
C-more
Color Micro-Graphic Panels
Part Number Description
EA1-T4CL
4-inch
C-more
Micro-Graphic Touch Panel with TFT Color LCD, 320 x 240
dot, 32,768 color display with LED backlight. 5 user-defined function keys
with LED indicators. Two built-in ports (USB Type-B port and 15-pin D-
sub RS-232/422/485 port). Display supports portrait and landscape
modes. NEMA 4/4X, IP65 (when mounted correctly; for indoor use only)
EA1-T6CL
6-inch
C-more
Micro-Graphic Touch Panel with TFT Color LCD, 320 x 240
dot, 32,768 color display with LED backlight. 5 user-defined function keys
with LED indicators. Two built-in ports (USB Type-B port and 15-pin D-
sub RS-232/422/485 port). Display supports portrait and landscape
modes. NEMA 4/4X, IP65 (when mounted correctly; for indoor use only)
C-more 6” Color
Micro-Graphic Panel
C-more 6” Color Micro-Graphic Panels Installed in
Landscape and Portrait Keypad Bezels
