Automation Direct C-more EA1-T4CL User Manual

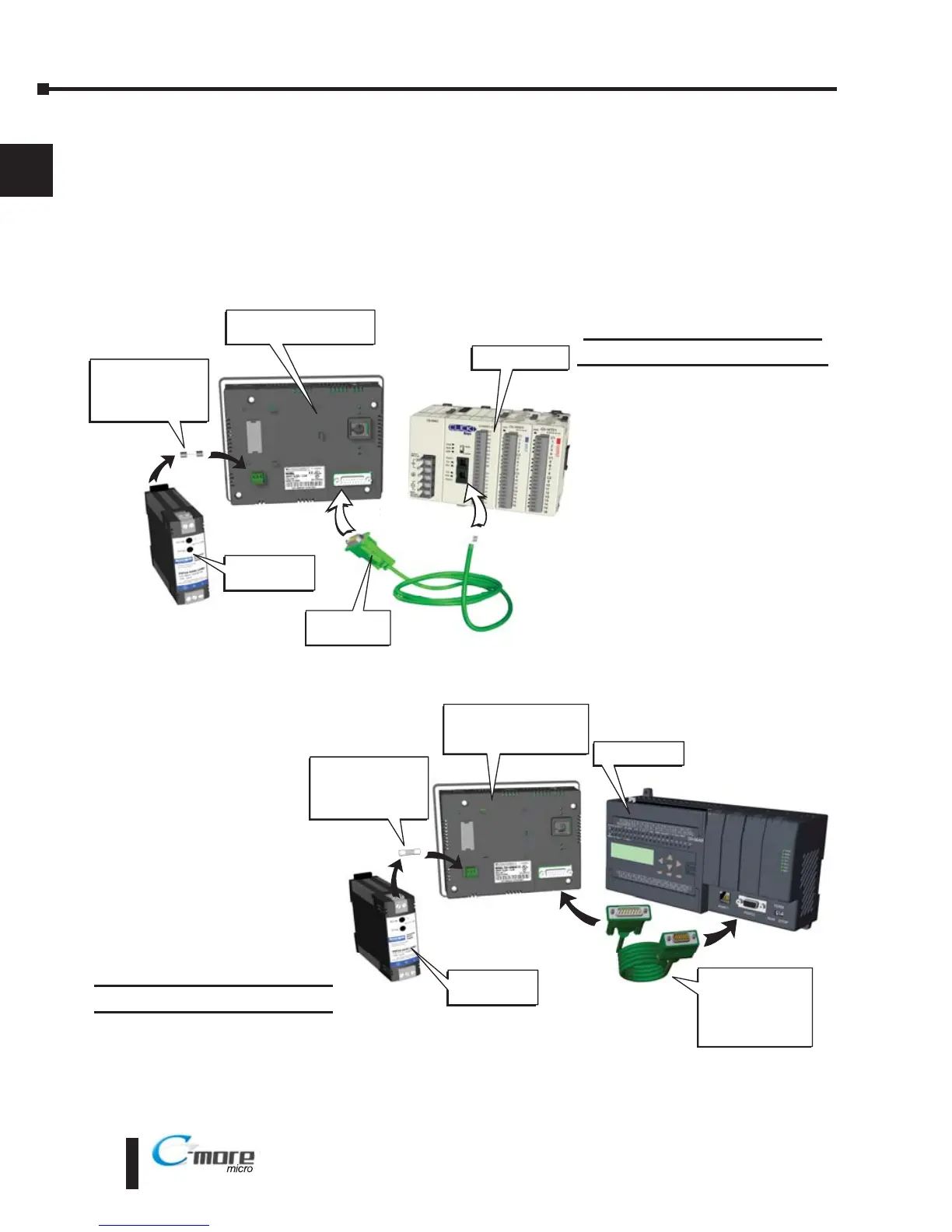

Step 10 – Connect C-more Color Micro-Graphic Panel to PLC
Connect the serial communications cable between the C-more Micro-Graphic panel and the
PLC. The panel can be connected to the PLC via the panel’s built-in 15-pin serial
communications port with either RS-232, RS-422 or RS-485 communications.
®
Port 2
P
o
r
t
2
PSP-24-024S
Power Supply
Recommended
DC Supply Fuse
750 mA fast acting,
ADC p/n AGC-75
EA 2CBL
serial cable
C-more Color
Micro-Graphic Panel
CLICK PLC
Port
2
Port
2
C-more to
Direct LOGIC
VGA 15 pin port
serial cable
p/n EA 2CBL 1
DL-06 PLC
PSP-24-024S
Power Supply
Recommended
DC Supply Fuse
750 mA fast acting,
ADC p/n AGC-75
C-more Color
Micro-Graphic
Panel
Example of panel’s Port 2
connected to a CLICK PLC
Example of panel’s Port 2
connected to a DL06 PLC
®
1
Chapter 1: Getting Started
1–18
EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10
