Introduction
The installation and wiring of C-more Micro-Graphic panels require selecting an appropriate
location for the panel, laying out the cutout dimensions on the surface of the control cabinet
that the panel will be mounted through, securing the panel with the provided mounting clips,
tightening the screws to the appropriate torque rating to assure the gasket is sealing correctly,
and finally connecting the appropriate power source to the panel.
NOTE: Each C-more Micro-Graphic panel is provided with a cutout template to simplify marking the proper
cutout size on the surface of the control cabinet that the panel will be mounted through.The keypad bezels
are also provided with an appropriate cutout template for mounting convenience.

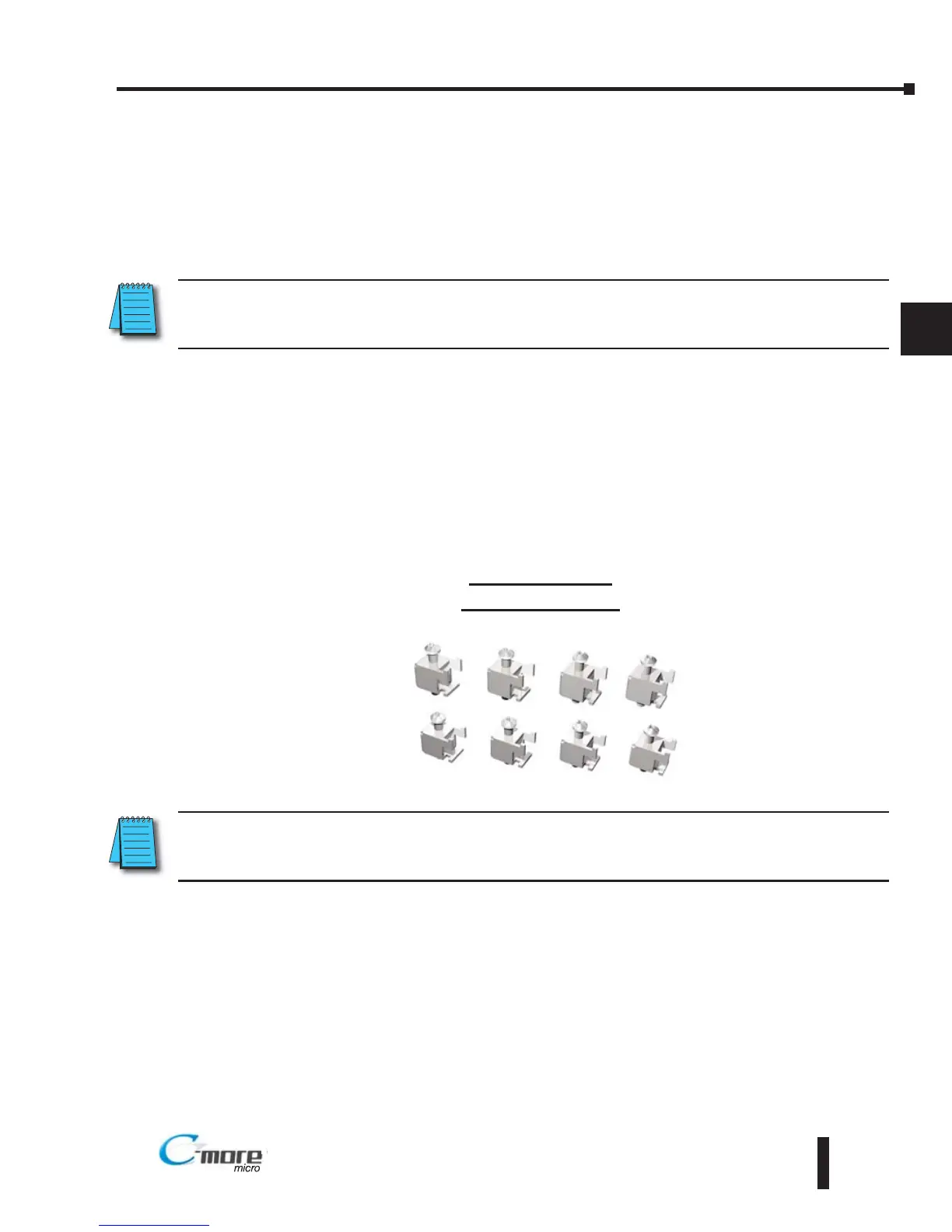

The C-more 4” and 6” Micro-Graphic panels include four mounting clips. They are fitted to the
panel by inserting two tabs into mating slots on the panel and then sliding the clip into a
narrower slot to secure it in place.
If using a 6” panel with a Keypad Bezel, then install the panel into the keypad bezel and secure
with the mounting clips that are provided with the panel to seal the panel gasket. Create a
cutout in the enclosure that the assembled panel and keypad bezel will be mounted through and
secure the assembly with the mounting clips that are provided with the keypad bezel. See
Chapter 3: Accessories for additional details.
NOTE: The 4” Micro-graphic panel (EA1-T4CL), C-more 6” Micro-Graphic panels (EA1-T6CL, EA1-S6ML &
EA1-S6MLW), 20-Button Keypad Bezel (EA-MG6-BZ2) and 21-Button Keypad Bezel (EA-MG6-BZ2P) use the
same type of mounting clip (EA-MG-BZ2-BRK).
4–3
Chapter 4: Installation and Wiring
4
EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10
