Automation Direct C-more EA1-T4CL - Test Menu

5–13
Chapter 5: System Setup Screens
5

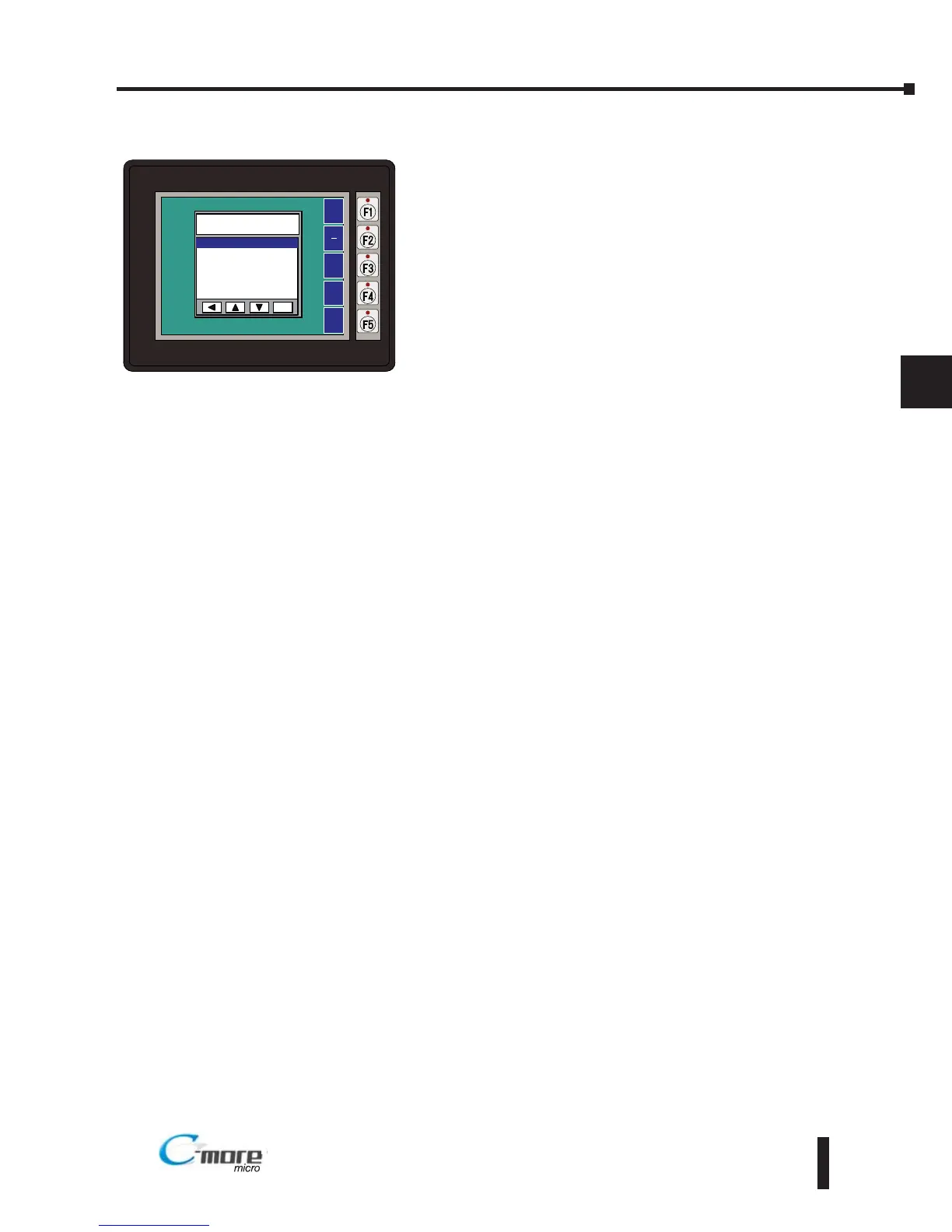

Test Menu
Use the UP [F3] and DWN [F4] function keys to scroll
through the list of tests. The BAK [F1] function key will
return you to the previous screen. Use the ENT [F5] function
key to make your selection once you have the test
highlighted.
Serial Port - Loop Back Test – page 5-14
PLC Enquiry Test – page 5-15
Buzzer Test – page 5-15
Touch Panel Test – page 5-16
BAK
UP
DWN
ENT
ENT
TEST MENU
1 Serial Port Loop Back
2 PLC Enquiry Test
3 Buzzer Test
4 Touch Panel Test
5 Display Test
EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10
®
