Automation Direct C-more EA1-T4CL User Manual

5–16
Chapter 5: System Setup Screens
5
®
EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10

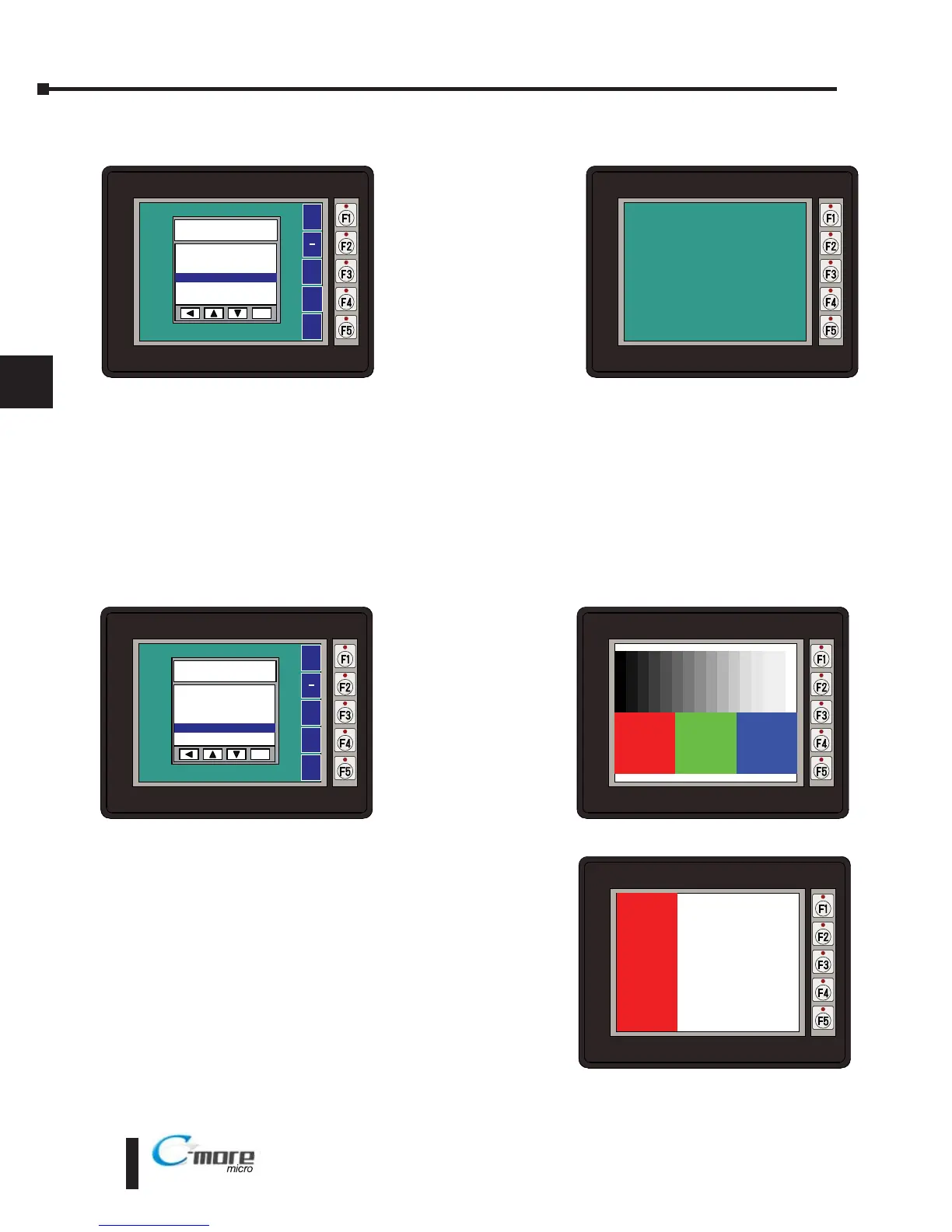

Test Menu - Touch Panel Test
With Touch Panel Test
highlighted, press ENT
[F5] to bring up the
screen shown to the
right. Touch any area of
the screen to visualize
the active area of the
touch screen. If the
touch panel area is
working properly, the
screen will blacken at
the area touched. Use
this test to identify any
area that is not
responding properly.
Press any key [F1 to F5]
to return to the Test
Menu.
Test Menu - Display Test
With Display Test
highlighted, press ENT
[F5] to bring up the
screen shown to the
right. After a few
seconds a scrolling RGB
color test will begin.
Use this test to identify
any area that is
displaying colors
incorrectly. Press any
key [F1 to F5] to return
to the Test Menu.
BAK
UP
DWN
ENT
ENT
TEST MENU
1 Serial Port1 Loop Back
2 PLC Enquiry Test
3 Buzzer Test
4 Touch Panel Test
5 Display Test
Press Key to Quit
BAK
UP
DWN
ENT
ENT
TEST MENU
1 Serial Port1 Loop Back
2 PLC Enquiry Test
3 Buzzer Test
4 Touch Panel Test
5 Display Test
Press Key to Qu t
Press Key to Qu t
Red
Green
B ue
