The bottom of each 1-U space is at the middle of the narrowest metal area between
holes (marked with a horizontal line on some rack cabinets).
2. Place a mark 1.75 in. (44 mm) above the original mark you made (or count up three
holes in a rack) and mark the rack's front vertical rails with a felt-tipped pen or
masking tape. If you counted holes, place a mark just above the top hole.
This mark or piece of tape indicates where the system's upper edge will be located
on the vertical rails.

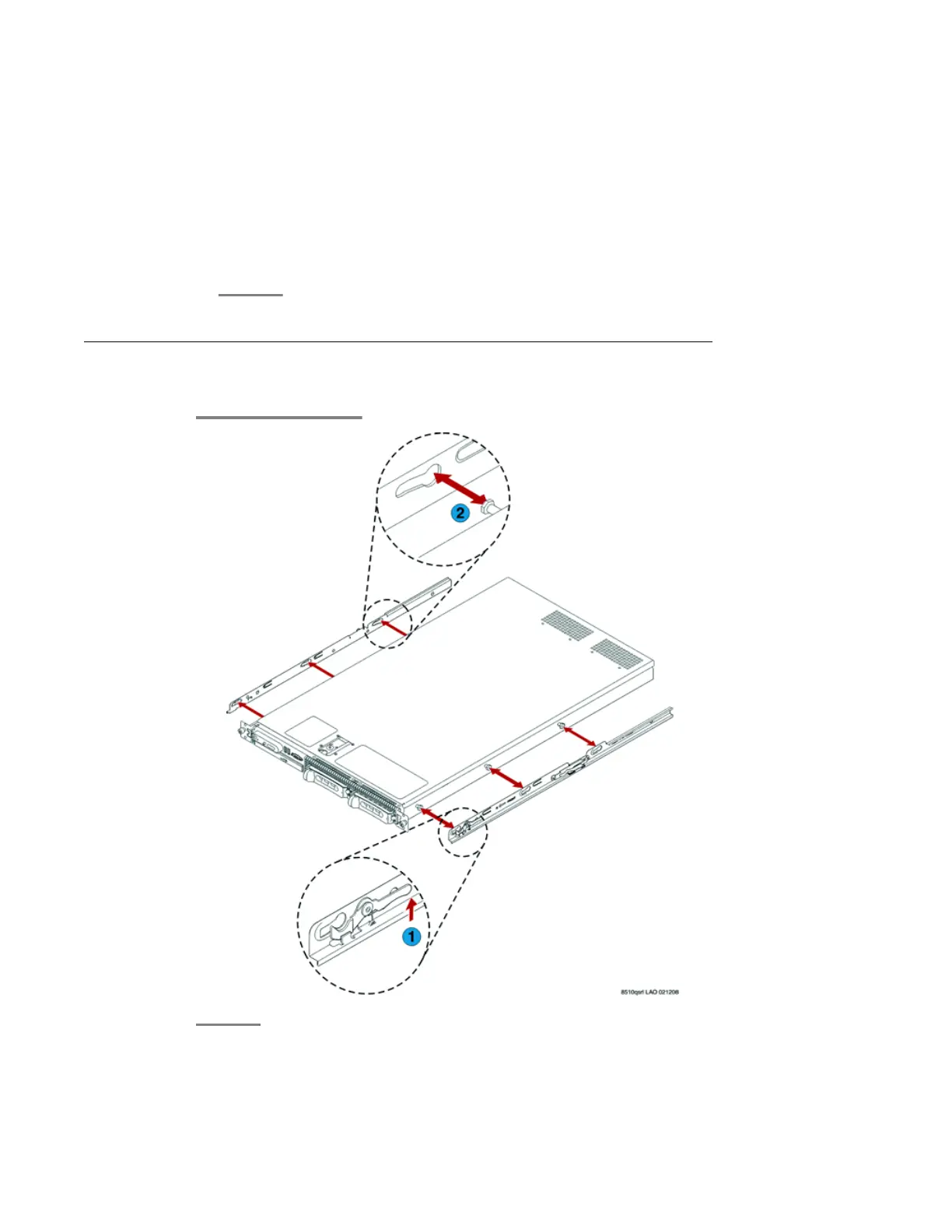

Attaching rails to the server
Installing and connecting the S8510 Server
Installing and Configuring Avaya Aura
™
System Platform April 2010 27
