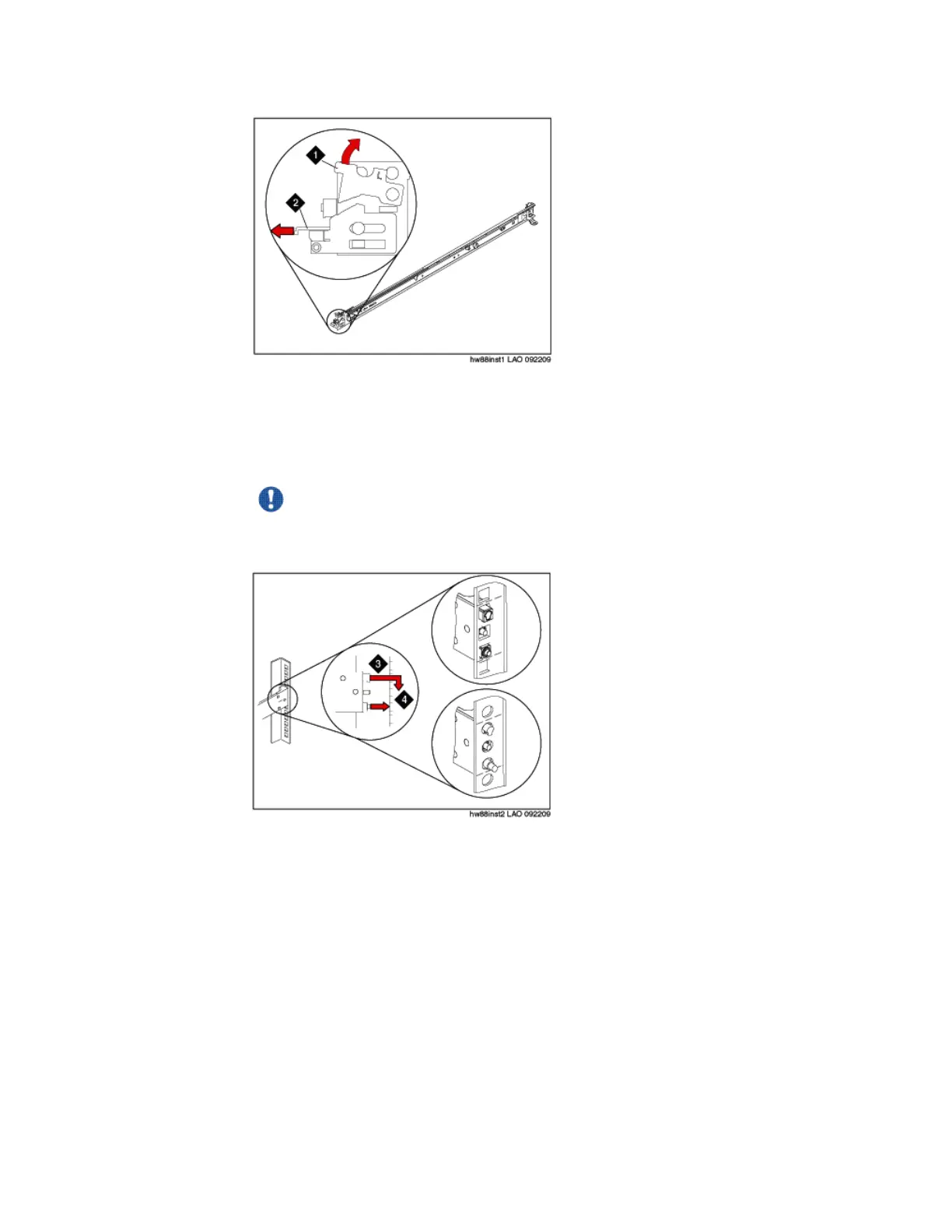

2. Pull out the front latch (2) to slide out the front side rail. See the preceding figure.
3. From the front of the rack, line up the three pins on the rear of the slide rail with the
three holes in the selected U on the rear of the rack. Push the rails so that the pins go
into the holes (3). See the following figure.
Important:
When you install a 2U server, be sure to install the slide rails in the bottom U of
the 2U area in the rack.
4. Drop the slide rail down (4) until it latches into place. See the preceding figure.
5. Pull the slide rail forward, and insert the two pins (5) on the front of the rail into the
two lower holes in the U on the front of the rack. See the following figure. Drop
the rail into place until it clicks.
Installing and connecting the S8800 Server
Installing and Configuring Avaya Aura
™
System Platform April 2010 33
