Chapter 5. DETAILED DESCRIPTION OF EACH FUNCTION

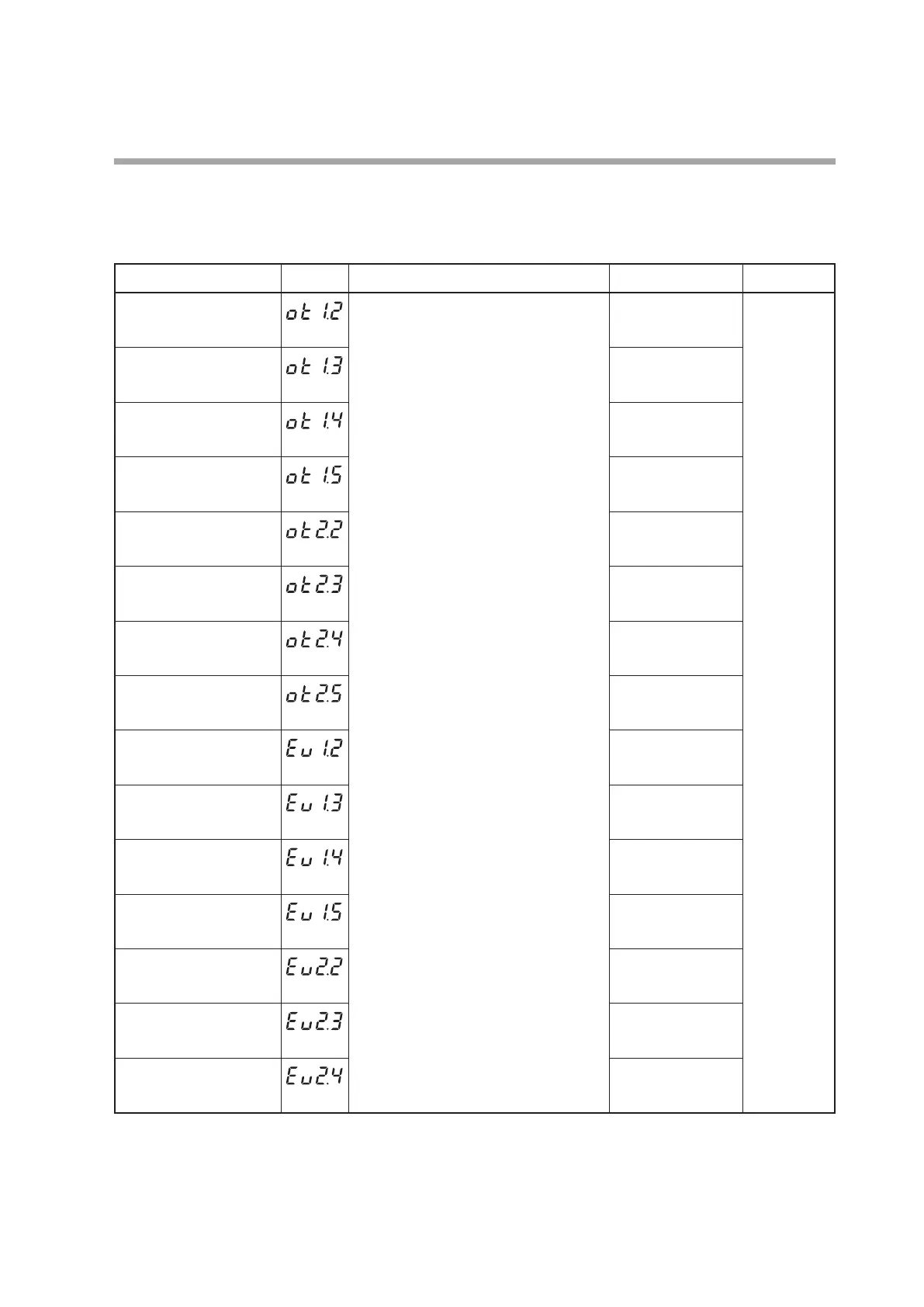

Output assignment
The assignments of four inputs (A, B, C, D) used for the output bit function can be
set.
Item (Bank) Display Contents Initial value User level
Control output 1 Output
assignment A
(DO Assignment bank)
0: Normally opened. (OFF, 0)
1: Normally closed. (ON, 1)
2: Internal Event 1
3: Internal Event 2
4: Internal Event 3
5: Internal Event 4
6: Internal Event 5
7: Internal Event 6
8: Internal Event 7
9: Internal Event 8
10 to 13: Undefined.
14: MV1
15: MV2
16 to 17: Undefined.
18: DI1
19: DI2
20: DI3
21: DI4
22 to 25: Undefined.
26: Internal Contact 1
27: Internal Contact 2
28: Internal Contact 3
29: Internal Contact 4
30: Internal Contact 5
31 to 33: Undefined.
34: Communication DI1
35: Communication DI2
36: Communication DI3
37: Communication DI4
38: MANUAL mode
39: READY mode
40: RSP mode
41: AT running
42: During SP ramp
43: Undefined.
44: Alarm occurred.(
AL0
1
to
AL99
)
45: PV alarm occurred.(
AL0
1
to
AL03
)
46: Undefined.
47: mode key pressing status
48: Event output 1 status
49: Control output 1 status
14 High function
Control output 1 Output
assignment B
(DO Assignment bank)
0
Control output 1 Output
assignment C
(DO Assignment bank)
0
Control output 1 Output
assignment D
(DO Assignment bank)
0
Control output 2 Output
assignment A
(DO Assignment bank)
15
Control output 2 Output
assignment B
(DO Assignment bank)
0
Control output 2 Output
assignment C
(DO Assignment bank)
0
Control output 2 Output
assignment D
(DO Assignment bank)
0
Event output 1 Output
assignment A
(DO Assignment bank)
2
Event output 1 Output
assignment B
(DO Assignment bank)
0
Event output 1 Output
assignment C
(DO Assignment bank)
0
Event output 1 Output
assignment D
(DO Assignment bank)
0
Event output 2 Output
assignment A
(DO Assignment bank)
3
Event output 2 Output
assignment B
(DO Assignment bank)
0
Event output 2 Output
assignment C
(DO Assignment bank)
0
