Chapter 5. DETAILED DESCRIPTION OF EACH FUNCTION


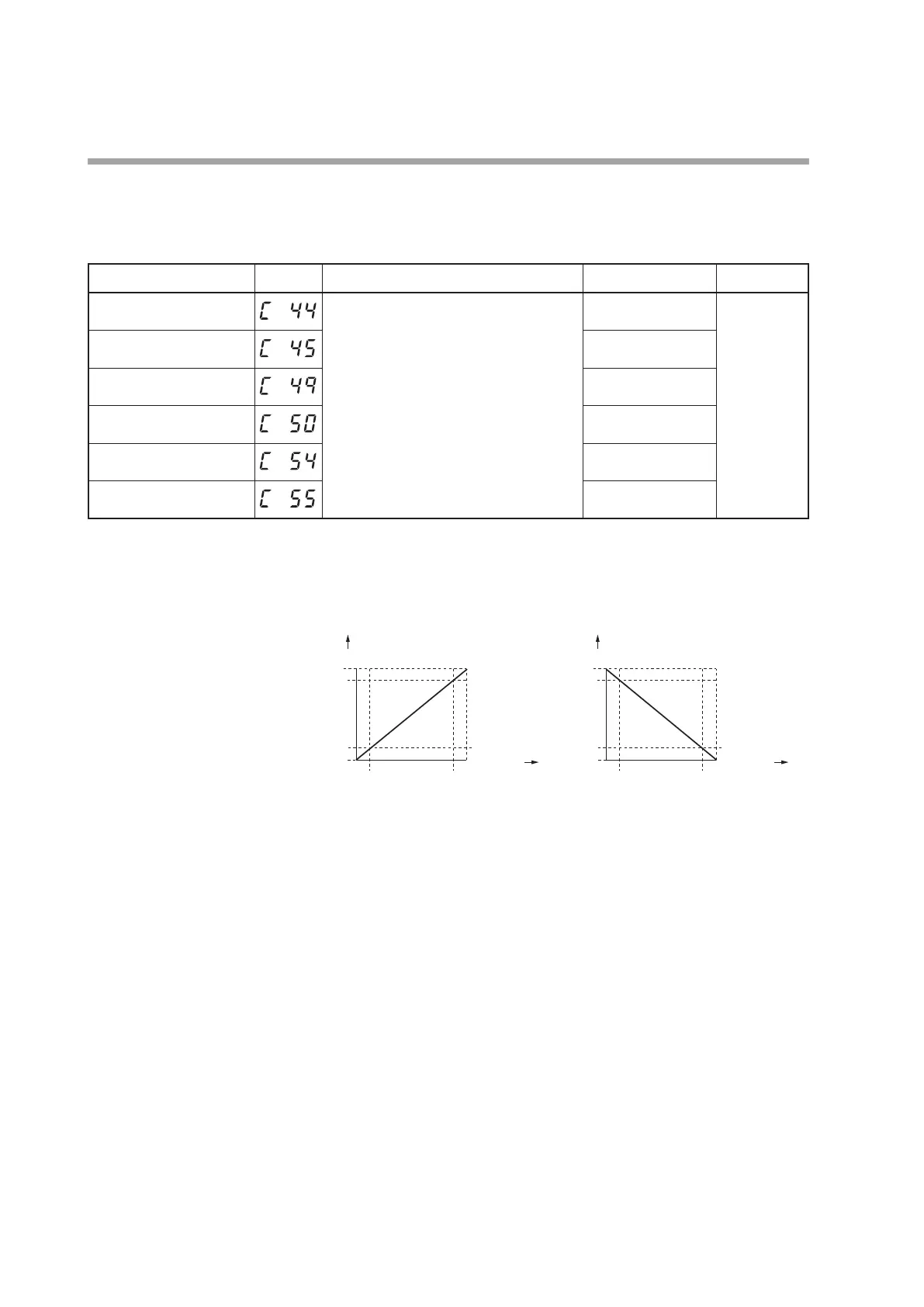

Output scaling low limit/high limit
The output scaling low limit and high limit of the current output and continuous
voltage output can be set.
Item (Bank) Display Contents Initial value User level
Control output 1 scaling
low limit (Setup bank)
-1999 to +9999
The decimal point position may vary so
that it meets the output type.
The unit depend on the output type are as
follows:
• When the output type is 0 to 2, % of
manipulated variable
• When the output type is 3 to 6, same as
PV(˚C etc.)
• When the output type is 7 and 8,
ampere(current value)
• When the output type is 9, % of MFB
0.0 Basic,
Standard,
High function
Control output 1 scaling
high limit (Setup bank)
100.0
Control output 2 scaling
low limit (Setup bank)
0
Control output 2 scaling
high limit (Setup bank)
1000
Auxiliary output scaling
low limit (Setup bank)
0
Auxiliary output scaling
high limit (Setup bank)
1000
• When the object control output is the current output or continuous voltage
output, the display and setting can be configured.
• The following figures show the relationship between the numeric value and
output of the output type using the output scaling low limit/high limit settings:
Output (%)
Output (%)
-10
0
100
110
-10
0
100
110
Input (%)
Low limit Low limit
Low limit < High limit Low limit > High limit
High limit High limit
Input (%)
However, the output is 0 to 110% in a range of 0 to 20mA.
