Azbil C35 Series User Manual

6-4

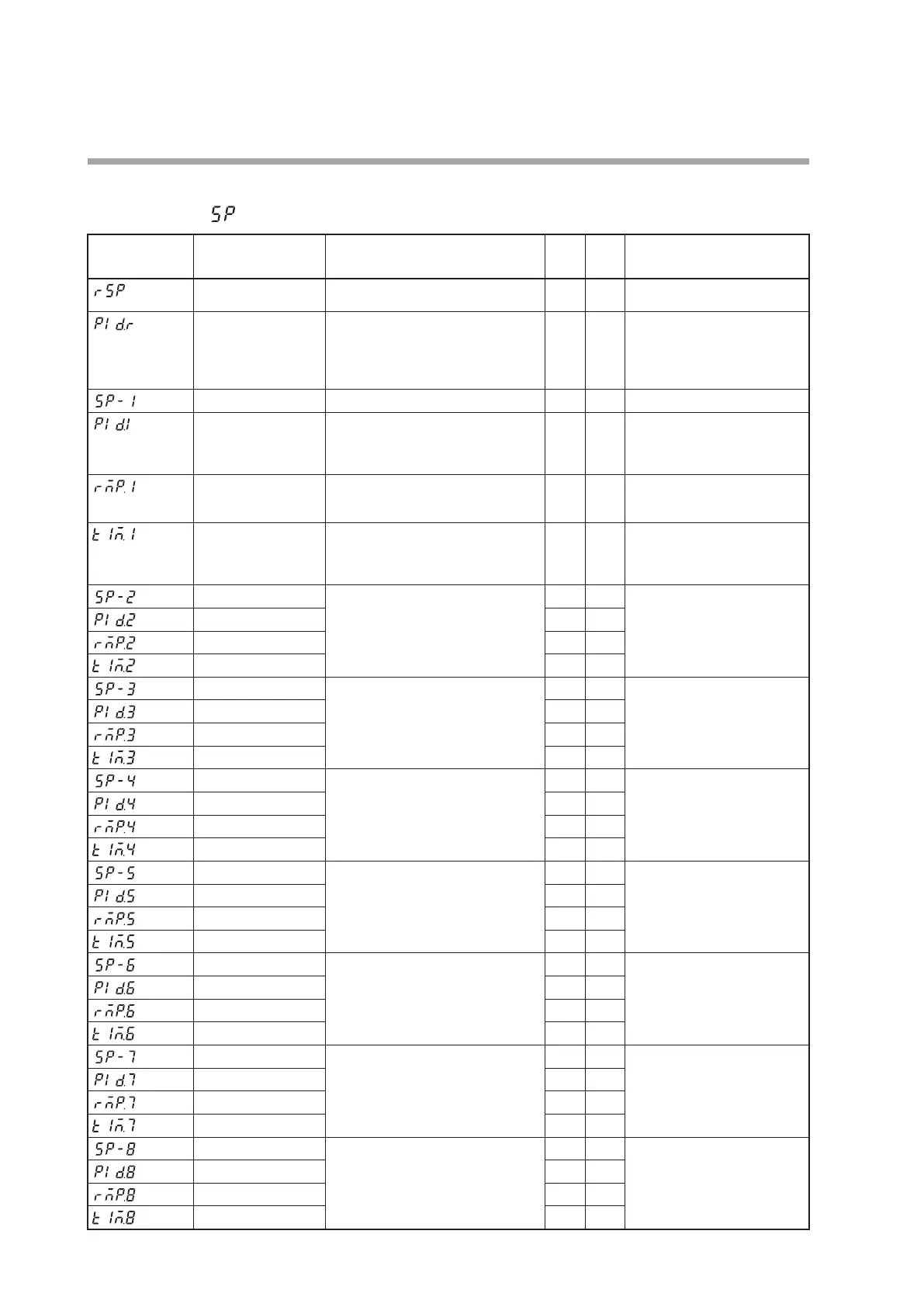

Chapter 6. LIST OF DISPLAYS AND SETTING DATA

SP bank
Bank selection:
Display Item Contents
Initial
value
User
level
Notes
RSP Setting is disabled. — 0 Displayed when the optional
model provides the RSP input.
PID group No. (RSP) 1 to 8 1 1 Displayed when the optional
model provides the RSP input,
the control is other than ON/
OFF control (
CtrL
≠0), and the
zone PID is not used (
C24
=0).
SP (for LSP1)
SP low limit (
C07
) to SP high limit (
C08
)
0 0
PID group No. (for
LSP1)
1 to 8 1 1 Displayed when the control
is other than ON/OFF control
(
CtrL
≠0) and the zone PID is
not used (
C24
=0).
Ramp (for LSP1) 0 to 9999 (The decimal point position
is determined by the decimal point
position of PV and the SP ramp unit.)
0 1 Displayed when the SP ramp
type (
C31
) is “1” or more.
Time (for LSP1) 0.0 to 999.9 (The time unit of the
step operation is “0.1 s”.)
0 to 9999 (The time unit of the step
operation is “1 s” or “1 min”.)
0
1 Displayed when the SP ramp
type (
C31
) is “2” or more.
SP (for LSP2) Same as LSP1 group. 0 0 Displayed when the LSP
system group (
C30
) is
“2” or more and the same
conditions as those for the
LSP1 group are satisfied.
PID group No. (for LSP2) 1 1
Ramp (for LSP2) 0 1
Time (for LSP2) 0 1
SP (for LSP3) Same as LSP1 group. 0 0 Displayed when the LSP
system group (
C30
) is
“3” or more and the same
conditions as those for the
LSP1 group are satisfied.
PID group No. (for LSP3) 1 1
Ramp (for LSP3) 0 1
Time (for LSP3) 0 1
SP (for LSP4) Same as LSP1 group. 0 0 Displayed when the LSP
system group (
C30
) is
“4” or more and the same
conditions as those for the
LSP1 group are satisfied.
PID group No. (for LSP4) 1 1
Ramp (for LSP4) 0 1
Time (for LSP4) 0 1
SP (for LSP5) Same as LSP1 group. 0 0 Displayed when the LSP
system group (
C30
) is
“5” or more and the same
conditions as those for the
LSP1 group are satisfied.
PID group No. (for LSP5) 1 1
Ramp (for LSP5) 0 1
Time (for LSP5) 0 1
SP (for LSP6) Same as LSP1 group. 0 0 Displayed when the LSP
system group (
C30
) is
“6” or more and the same
conditions as those for the
LSP1 group are satisfied.
PID group No. (for LSP6) 1 1
Ramp (for LSP6) 0 1
Time (for LSP6) 0 1
SP (for LSP7) Same as LSP1 group. 0 0 Displayed when the LSP
system group (
C30
) is
“7” or more and the same
conditions as those for the
LSP1 group are satisfied.
PID group No. (for LSP7) 1 1
Ramp (for LSP7) 0 1
Time (for LSP7) 0 1
SP (for LSP8) Same as LSP1 group. 0 0 Displayed when the LSP
system group (
C30
) is
“8” or more and the same
conditions as those for the
LSP1 group are satisfied.
PID group No. (for LSP8) 1 1
Ramp (for LSP8) 0 1
Time (for LSP8) 0 1
