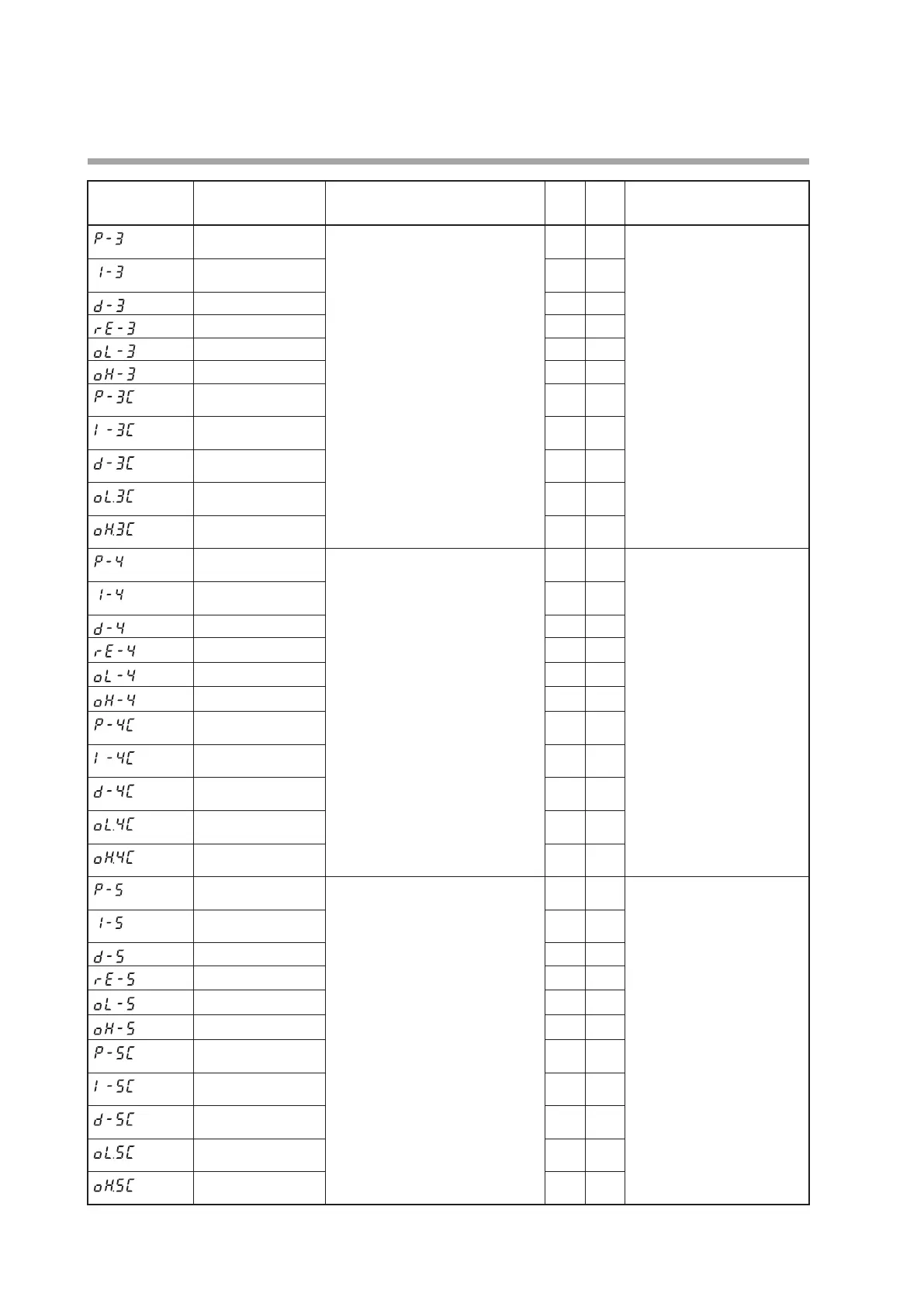

Chapter 6. LIST OF DISPLAYS AND SETTING DATA
Display Item Contents
Initial
value
User
level
Notes
Proportional band
(PID 3)
Same as PID 1 5.0 0 Same as PID 1
Integration time
(PID 3)
120 0
Derivative time (PID 3) 30 0
Manual reset (PID 3) 50.0 0
MV low limit (PID 3) 0.0 1
MV high limit (PID 3) 100.0 1
Cool-side proportional
band
(PID 3)
5.0 0
Cool-side integration
time (PID 3)
120 0
Cool-side derivative
time (PID 3)
30 0
Cool-side MV low
limit (PID 3)
0.0 1
Cool-side MV high
limit (PID 3)
100.0 1
Proportional band
(PID 4)
Same as PID 1 5.0 0 Same as PID 1
Integration time
(PID 4)
120 0
Derivative time (PID 4) 30 0
Manual reset (PID 4) 50.0 0
MV low limit (PID 4) 0.0 1
MV high limit (PID 4) 100.0 1
Cool-side proportional
band
(PID 4)
5.0 0
Cool-side integration
time (PID 4)
120 0
Cool-side derivative
time (PID 4)
30 0
Cool-side MV low
limit (PID 4)
0.0 1
Cool-side MV high
limit (PID 4)
100.0 1
Proportional band
(PID 5)
Same as PID 1 5.0 0 Same as PID 1
Integration time
(PID 5)
120 0
Derivative time (PID 5) 30 0
Manual reset (PID 5) 50.0 0
MV low limit (PID 5) 0.0 1
MV high limit (PID 5) 100.0 1
Cool-side proportional
band
(PID 5)
5.0 0
Cool-side integration
time (PID 5)
120 0
Cool-side derivative
time (PID 5)
30 0
Cool-side MV low
limit (PID 5)
0.0 1
Cool-side MV high
limit (PID 5)
100.0 1
(Continue on next page.)
