Chapter 5. DETAILED DESCRIPTION OF EACH FUNCTION


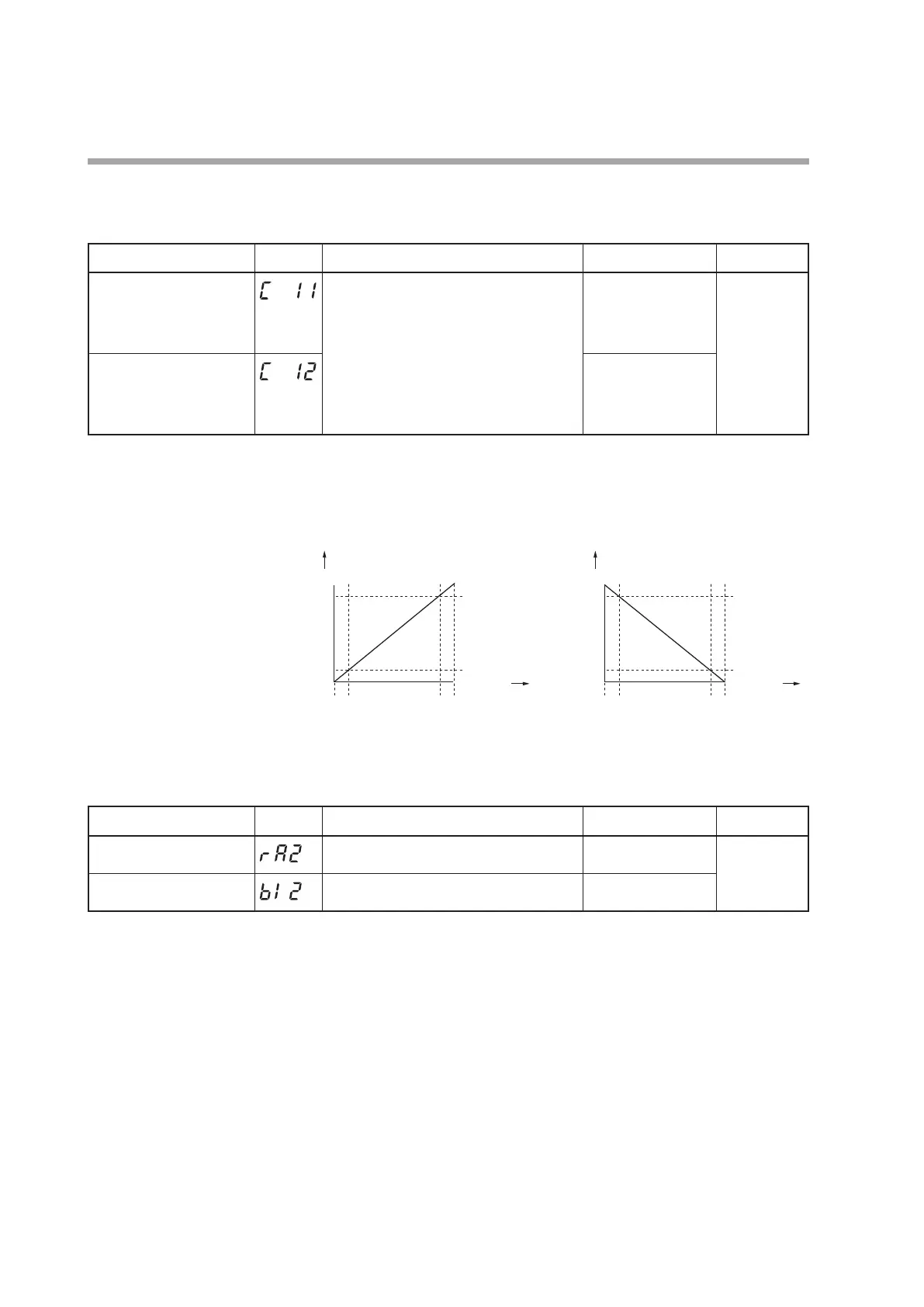

RSP range low limit/high limit
The scaling of the RSP input can be set.
Item (Bank) Display Contents Initial value User level
RSP range low limit
(Setup bank)
-1999 to +9999 (No decimal point)
-199.9 to +999.9 (1 digit after the decimal
point)
-19.99 to +99.99 (2 digits after the decimal
point)
-1.999 to +9.999 (3 digits after the decimal
point)
The decimal point position is the same as
that of the PV.
0U Basic,
Standard,
High function
RSP range high limit
(Setup bank)
1000U
• When the model provides the RSP input, the display and setting can be
performed.
• The following shows the relationship between the RSP input and RSP based on
the range low limit and high limit settings.
RSP
High limit
Low limit
High limit
Low limit
–10 0 100 110
Input (%) Input (%)
RSP
–10 0 100 110

RSP ratio and RSP bias
The RSP ratio and RSP bias can be set to correct the RSP.
Item (Bank) Display Contents Initial value User level
RSP ratio
(Parameter bank)
0.001 to 9.999 1.000 Standard,
High function
RSP bias
(Parameter bank)
-1999 to +9999U 0U
• When the model provides the RSP input, the display and setting can be
performed.
• Details of RSP ratio and RSP bias calculation
Assuming that the calculation input is RSP
in
, the calculation result is RSP
out
, the
RSP ratio is RA2, and the RSP bias is BI2, the following calculation formula is
obtained.
RSP
out
= (RSP
in
X RA2) + BI2
