2-11
Chapter 2 Installation of this Device
(3) Precautions When Handling Capillary Tubes
• When handling capillary tubes, be careful not to twist them.
• When unwinding a capillary tube, hold the flange portion and turn the tube such that it reverts
to a big loop.
• Attach the capillary tube in such a way that it extends downward as much as possible.
• Do not turn the tube in such a way that it becomes twisted near the base.
• Secure the middle of the capillary tube to prevent vibration.
(4) Precautions When Attaching the Flange During Sealed Tank Level
Measurement by a JTE Model Transmitter
• The setting range when attaching a transmitter high pressure (HP) flange to the upper
portion ofthe tank is different from that when attaching one to the lower portion of the tank.
(Seesection 3-10-2.)
• When attaching a transmitter high pressure (HP) flange to the lower portion of the tank,
put a minus sign on the height value when setting the sealed liquid compensation function.
(Seesection 3-10-2.)
• For the JTE930S model, be sure to attach the transmitter high pressure (HP) side to the upper
portion of the tank.
Tank
Tank
Lower
Portion
Tank
Upper
Portion
Capillary Tubes
Transmitter
Pipe Stanchion

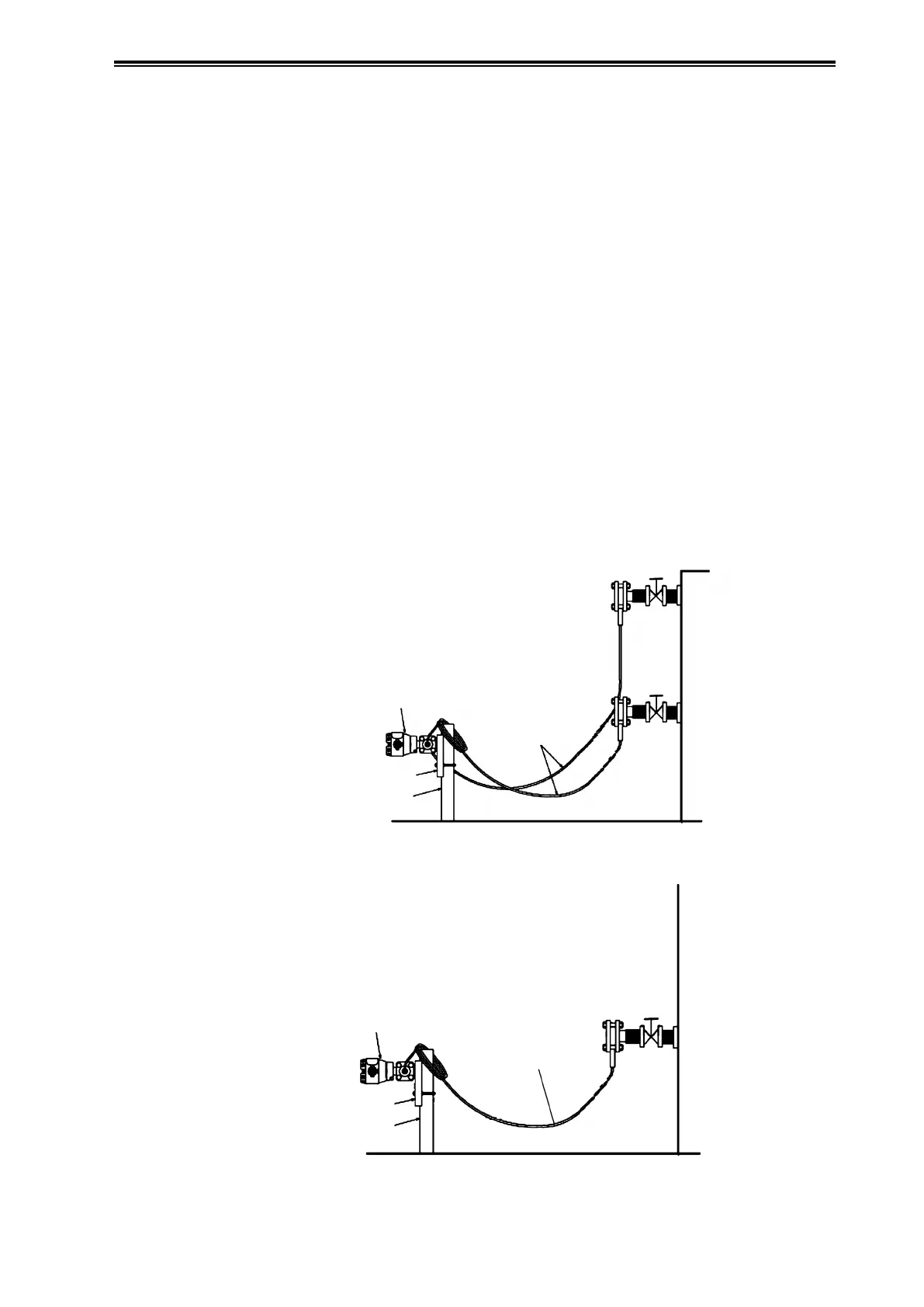

Figure 2-8. Attachment to Sealed Tank (JTE Model)
Tank
Tank
Capillary Tube
Transmitter
Mounting
Bracket
Pipe
Figure 2-9. Attachment to Open Tank (JTH/JTS Model)
To Next Page
