Bailey 40 Series - IIOIC421 Tabletop Cable Connections

INSTALLATION
OIC INSTALLATION
3 - 8 I-E96-192-5A
®

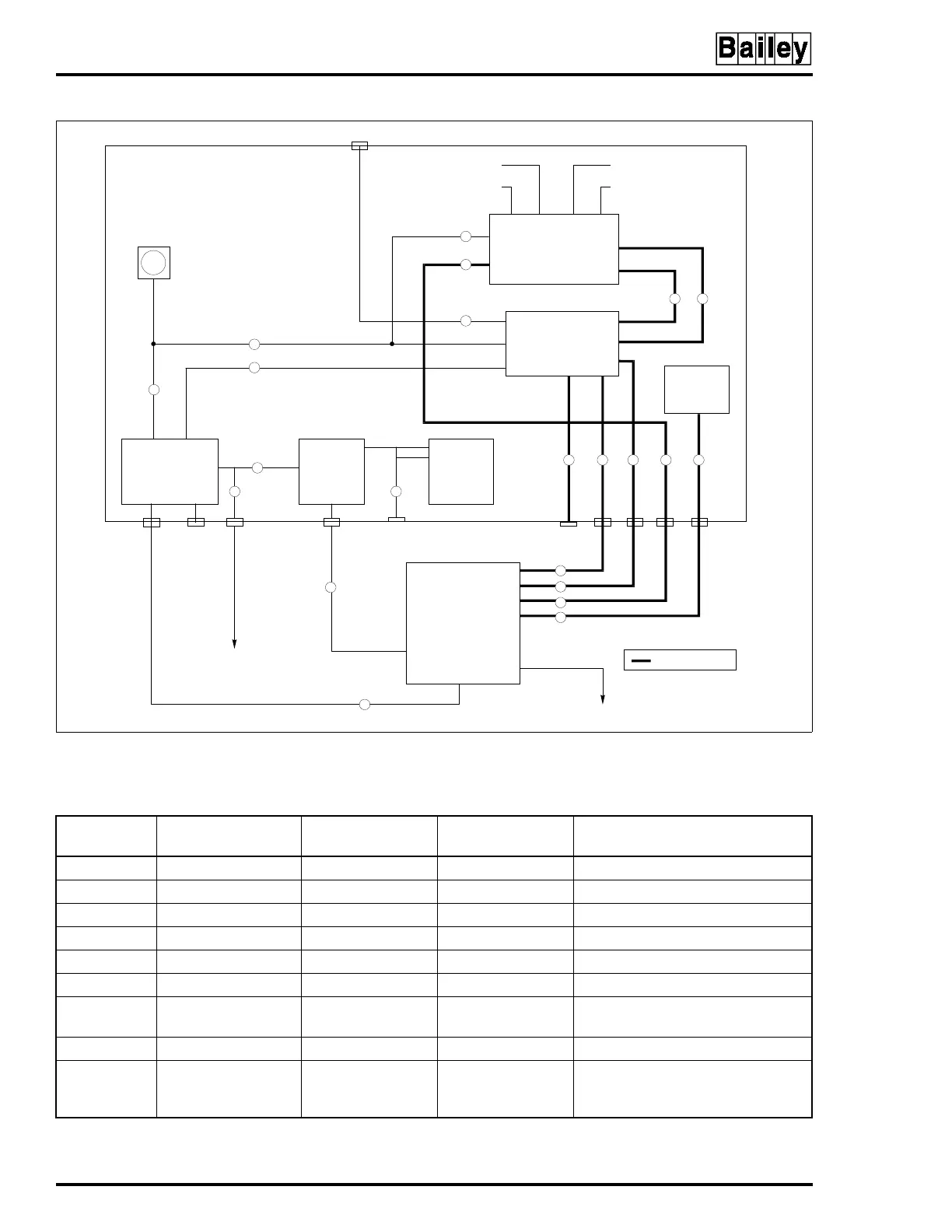

Figure 3-3. IIOIC421 Tabletop Cable Connections
Table 3-2. IIOIC421 Tabletop Cable Connections
Figure 3-3
Cable No.
Cable Number Cable Name Connect From Connect To
1 6642339A1 Keyboard J2 on chassis Keyboard port on OIC CPU
2 6640778A1 Communication J1 on chassis 0 port on OIC CPU
3 6634512A26N15 ADP signal P6 on IIMKM02A Terminal block on chassis
4 6634512A26N15 I/O distribution P5 on IIMKM02A P1 on keyboard interface board
5 6634512A26N15 I/O distribution P7 on IIMKM02A P8 on keyboard interface board
6 6638719A2 Reset cable P4 on IIMKM02A Reset switch on power entry panel
7 6638720A6 Monitor bezel
controls
Degauss on chassis Brightness on bezel
contrast on bezel monitor
8 6639117A1 I/O signal P9 on IIMKM02A J1 on chassis (inside)
9 6639211A1 Power P2 on power supply Cooling fan
P2 on keyboard interface board
P16 on IIMKM02A
IIOIC421
CHASSIS
FAN
RESET
SWITCH
P2
POWER
SUPPLY
MONITOR
MONITOR
BEZEL
IIMKM02A
KEYBOARD
MODULE
KEYBOARD
INTERFACE
BOARD
OPERATOR KEYBOARD MOUSE/TRACKBALL
OPTIONAL TABLETOP
ADP PANEL
ENGINEERING
KEYBOARD
TOUCH
SCREEN
CPU
P3
RGB
P6 P9
J1
TERM
BLK
J3 J5J2
P1
1
7
13
4
10
10
15
16
2
8 14
5
11
17
3
9
9
9
6
18
J4AC OUT AC IN
DEGAUSS
TO AC POWER
VIDEO CABLE
ETHERNET
NETWORK CABLE
(CUSTOMER
SUPPLIED)
POWER CABLE
TO IIOIS41/42
TP80565A
AC IN
P4
P16
P3
P2
AUX
PORT
AUX
KBD
MOUSE/
TRACK-
BALL
KEY-
BOARD
P10
P5
P7
P8
P8
P1
MONITOR
POWER
AC IN
0PORT
KEYBOARD
MOUSE
1PORT
BRIGHTNESS
CONTRAST
= SIGNAL CABLE
12
12
