COMPONENT DESCRIPTION AND REPLACEMENT
POWER ENTRY PANEL
6 - 12 I-E96-192-5A
®
IIOIC423 Environmental Cabinet
To remove the power entry panel from an IIOIC423 environ-
mental cabinet see Figure 6-10 and follow these steps:
1. Turn off the main circuit breaker on the power entry panel.
Check the power indicator to see if power is removed.
2. Shut down AC line power (plant breaker) so that the AC
line may be disconnected safely.
3. Remove all cables from the front and top of the power entry
panel and IIMKM02A cable. Refer to Section 3 for IIOIC423
cable connections..
4. Remove AC cables from the outlets on the power entry
panel.
5. Remove the two screws from the power entry panel end of
the bracket supporting the front of the power entry panel. If
the cabinet end of the bracket is removed, seal the mounting

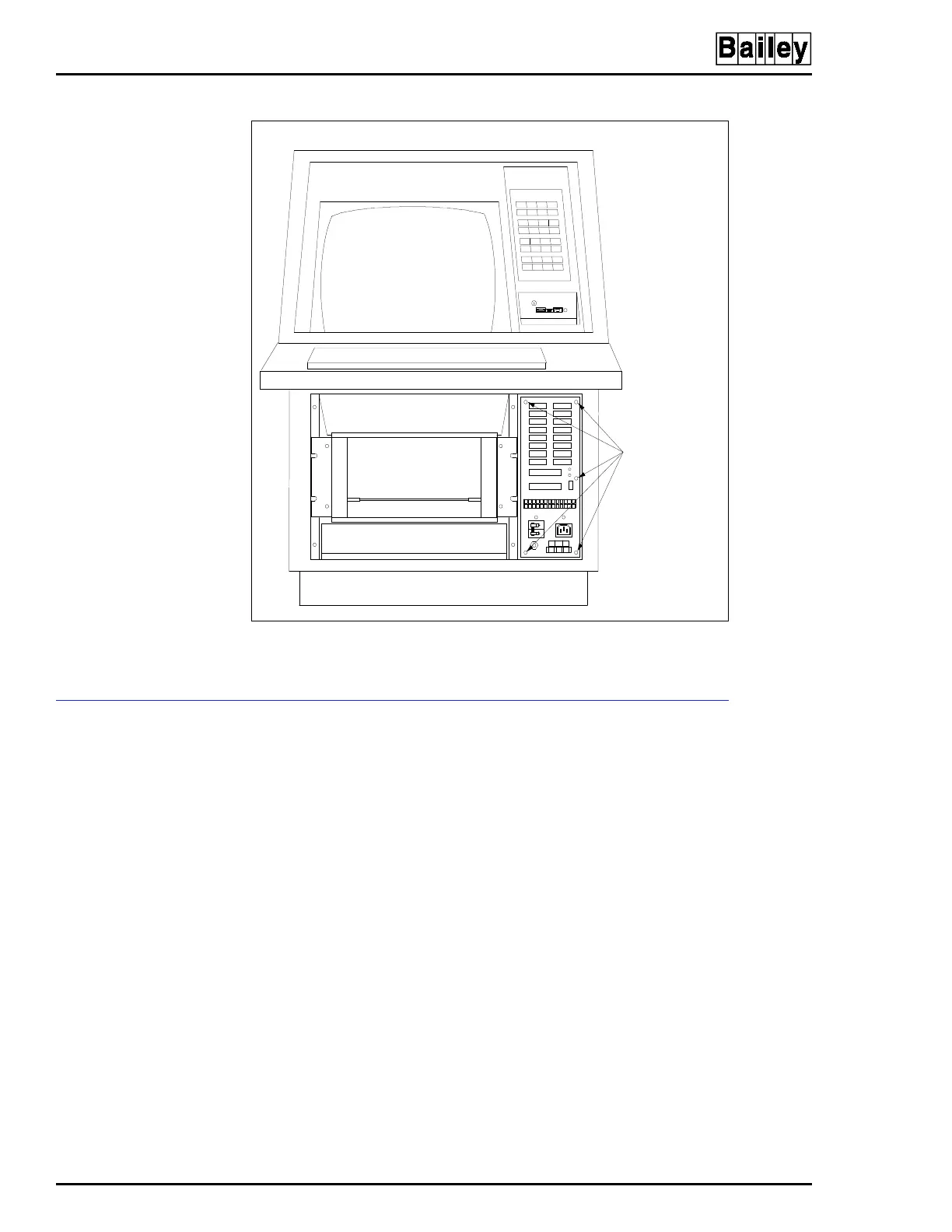

Figure 6-9. Power Entry Panel (PEP) Removal
for IIOIC422 Consoles
FRONT VIEW
POWER ENTRY
PANEL MOUNTING
SCREWS (5)
CPU
TP80578A
