Bailey 40 Series - IIOIC423 Cable Connections; IIOIC423 Environmental Cabinet Power Entry Panel Connections

INSTALLATION
OIC INSTALLATION
3 - 18 I-E96-192-5A
®

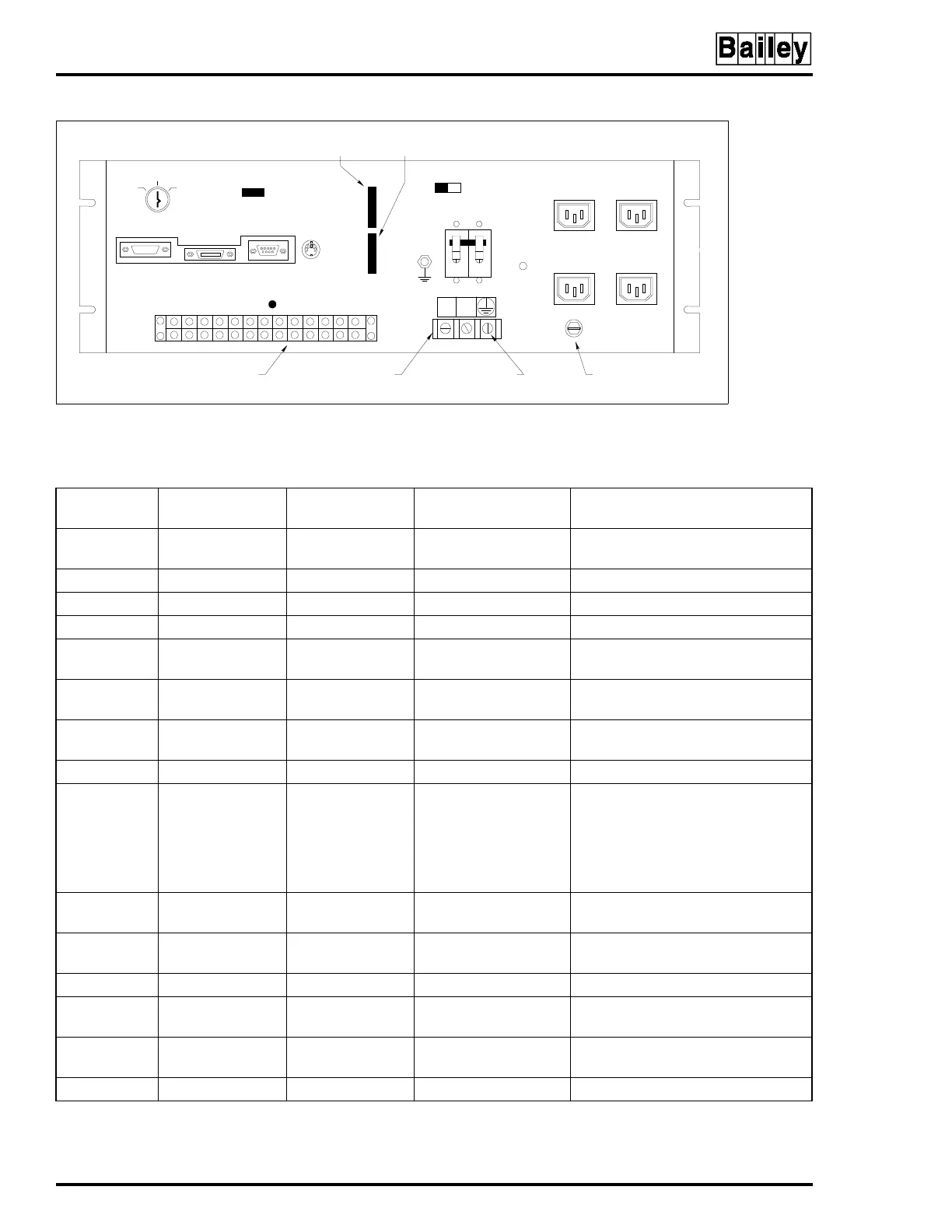

Figure 3-12. IIOIC423 Environmental Cabinet Power Entry Panel Connections
Table 3-4. IIOIC423 Cable Connections
Figure 3-13
Item No.
Cable Number Cable Name Connect From Connect To
1 1947950A5 Power J2 on power entry
panel
AC IN on monitor
2 6639637A4 Communication P9 on IIMKM02A 0 port on OIC CPU
3 6642339A1 Keyboard P8 on IIMKM02A Keyboard port on OIC CPU
4 6634512A26N15 I/O distribution P5 on IIMKM02A P1 on keyboard interface board
5 6638713A1 Power P1 on DC distribution
board
P16 on IIMKM02A board
6 6638713A1 Power P3 on DC distribution
board
P2 on keyboard interface board
7 6638713A4 Power P4 on DC distribution
board
P1 on NADS03 board
8 6638719A1 Reset cable P4 on IIMKM02A Reset switch on power entry panel
9 6638720A6 Monitor bezel
controls
Brightness on power
entry panel
Contrast on power
entry panel
Degauss on power
entry panel
Brightness on bezel
Contrast on bezel
Monitor
10 6638849A1 NADS03 signal P7 on IIMKM02A P2 on NADS03 board
P8 on keyboard interface board
11 6639212A2 Power J1 on power entry
panel
P1 on power supply
12 6639213A1 PFI sense P3 on IIMKM02A P3 on power supply
13 6639513A1 Power Terminal block on DC
distribution board
P2 on power supply
14 6640778A2 Touch screen Connector on touch
screen board
1 port on OIC CPU
15 Customer Console power Power source AC in on power entry panel
MOUSE/
TRACKBALL
AUX 1
PORT
KEYBOARD
RELAY ALARM CONTACTS AC POWER INPUT CUSTOMER GROUND
E1
CHASSIS GROUND
CONTRASTBRIGHTNESS
RESET
TP35329B .
WRIST
STRAP
TERMINAL
120/240
A/C
120 V
CRT
120/240
LIGHT
120 V
MAIN POWER
AUX
KBD
OFF
TUNE CONFIG
DEGAUSS
MAIN
POWER
120/240 VAC
LN/L2
WARNING!!
MAY CAUSE SEVERE
DAMAGE!!
AIR CONDITIONING
ONLY!
WARNING!!
MAY CAUSE SEVERE
DAMAGE! SWITCH
MUST BET SET FOR
PROPER VOLTAGE!!
