Bailey 40 Series - IIOIC422 Console Model; IIOIC421 Tabletop Model; Annunciator Display Panel

COMPONENT DESCRIPTION AND REPLACEMENT
OPERATOR INTERFACE DEVICES
I-E96-192-5A 6 - 15
Annunciator Display Panel
There are three types of annunciator display panels available
for the OIC consoles. They are the IIADP01, IIADP02 and
NADS03. Ribbon cable maximum length is 4.5 meters
(15 feet). Refer to OPERATOR INTERFACE DEVICES in
Section 3 for installation information.
IIOIC421 TABLETOP MODEL
The tabletop model does not come with an ADP panel, but the
IIADP01 tabletop assembly can be added to it. This 32-LED
and pushbutton assembly is driven off the keyboard/interface
board and the cable is connected to the AUX PORT. Unplug
the cable to remove.
Refer to Section 3 for address switch settings.
IIOIC422 CONSOLE MODEL
The console model comes with the IIADP02 assembly mounted
in the console (Figure 6-12). To remove the ADP:
1. Turn off the main circuit breaker on the power entry panel.
Check the power indicator to see if power is removed.
2. Disconnect all the cables.

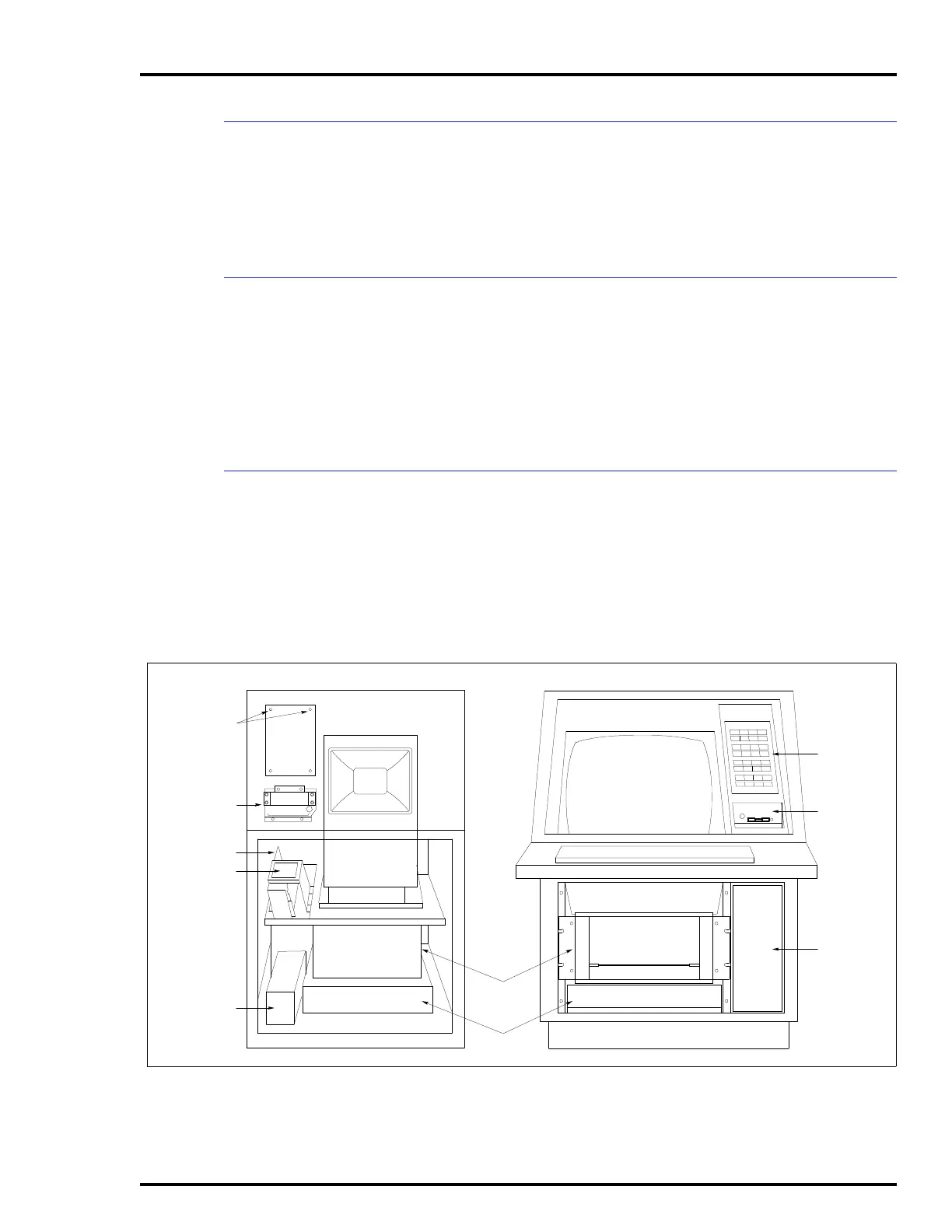

Figure 6-12. ADP02 Removal from IIOIC422 Console
REAR VIEW FRONT VIEW
POWER SUPPLY
TP80563A
MULTIBUS
CARD CAGE
POWER ENTRY
PANEL
KEYBOARD
INTERFACE
ASSEMBLY
ANNUNCIATOR
DISPLAY
PANEL (ADP)
CPU
POWER ENTRY
PANEL
DC DISTRIBUTION
BOARD
KEYBOARD
INTERFACE
ASSEMBLY
MOUNTING
SCREWS
FOR ADP (4)
