Bailey 40 Series - IIOIC424 Panel Mount (Power Entry Panel Removal)

COMPONENT DESCRIPTION AND REPLACEMENT
POWER ENTRY PANEL
I-E96-192-5A 6 - 13
screws with Dow Corning 732
®
RTV clear sealant or equivalent
when reassembling.
6. Remove the four screws from around the power entry
panel.
7. Slide the power entry panel out the front of the cabinet.
Use caution as the power entry panel weighs approximately
23 kg (50 lbs).
IIOIC424 Panel Mount
To remove the power entry panel from an IIOIC424 panel
mount model see Figure 6-11 and follow these steps:
1. Turn off the main circuit breaker on the power entry panel.
Check the power indicator to see if power is removed.

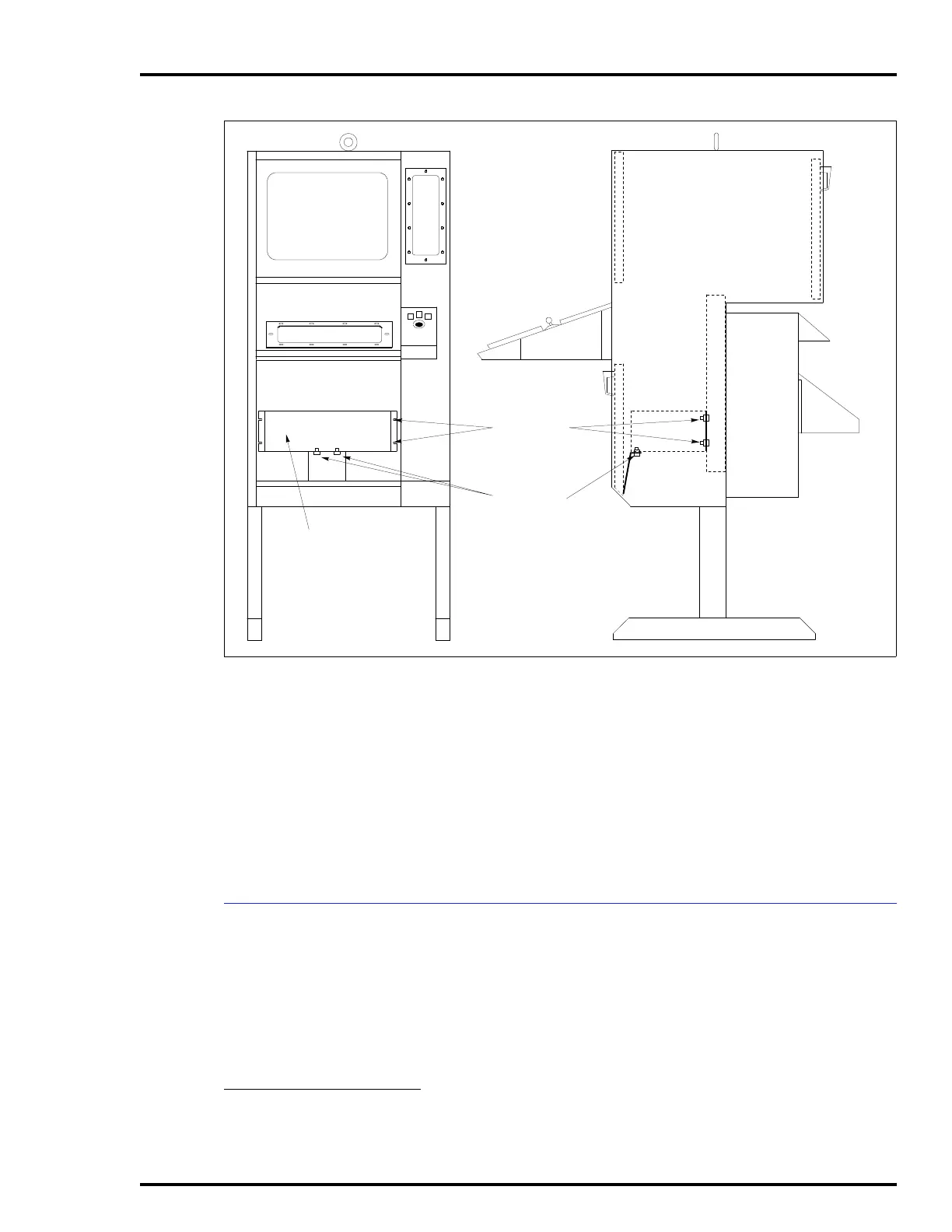

Figure 6-10. Power Entry Panel (PEP) Removal for IIOIC423 Environmental Cabinet
POWER ENTRY
PANEL CABINET
MOUNTING
SCREWS (4)
POWER ENTRY
PANEL
POWER ENTRY
PANEL SUPPORT
MOUNTING
SCREWS (2)
TP35537B .
® Registered trademark of Dow Corning Company.
™ Trademark of Dow Corning Company
