Configuration Using Barcodes
Balluff BVS HS-P Family
Industrial Handheld Barcode Readers
3.7.4 Multiple Label
Reading
In standard (default) mode, when the reader’s aiming system is activated (by a trigger pull, motion
or other method depending on the mode), it then acquires and processes each code in the area
in front of it (the Volume). In this case, the reader stops processing the code once it decodes a
label. If several labels are present in the volume, only the first label encountered is decoded and
sent.
When Multiple Reading Mode is enabled, the reader keeps on processing the image until all the
labels present are decoded. The reader then sorts the data from all the barcodes (if configured to
do so) before transmitting it.
3.7.5 Multiple Labels
per Frame
Specifies the ability of the reader to decode and transmit a set of code labels in a specific volume
and in a single frame of time. When in Multiple Labels per Frame the reader beeps and turns on
the good read LED indication for each code read in a frame.
When Multiple Labels Mode is enabled, ISBT pairing, ABC Codabar pairing, and composites are
not allowed.
Multiple Labels
Ordering by
Code
Symbology
This feature allows you to specify the order multiple labels are transmitted by symbology type,
when Multiple Labels per Frame is enabled. See
page 267 in “References” for detailed information
on setting this feature.

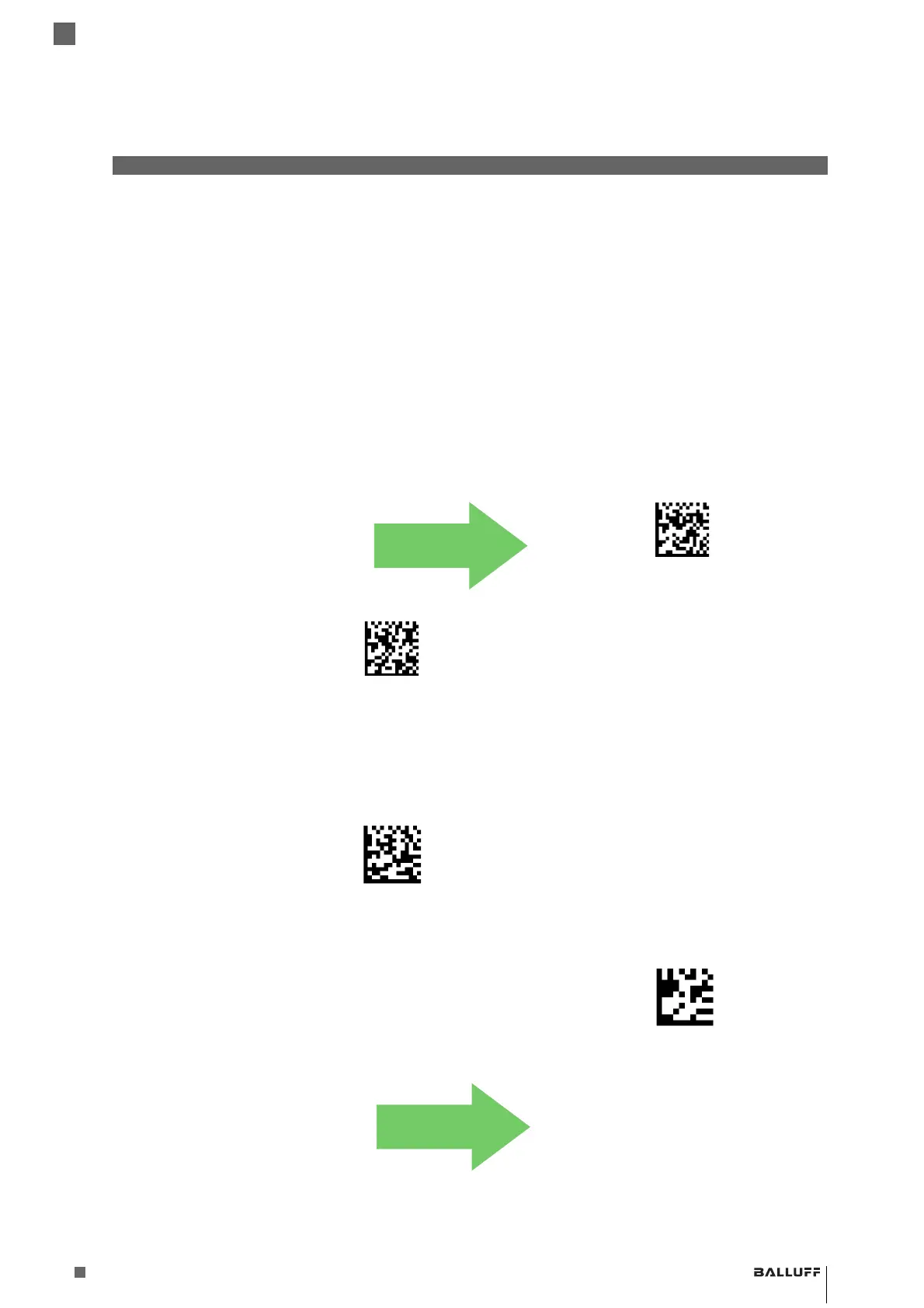

Multiple Labels per Frame = Disable
Multiple Labels per Frame = Enable
Select Symbologies for Multiple Labels Order-
ing
To configure this feature, scan the ENTER/
EXIT PROGRAMMING MODE barcode
above, then the barcode at left followed by
the digits From the alphanumeric characters
In
Appendix D: Keypad representing your
desired Character(s). end by reading the
enter/exit barcode again.
Make a mistake? Scan the CANCEL barcode
to abort and not save the entry string. You
can then start again at the beginning.
CANCEL
000000000000 = Random order
