Configuration Using Barcodes
Balluff BVS HS-P Family
Industrial Handheld Barcode Readers

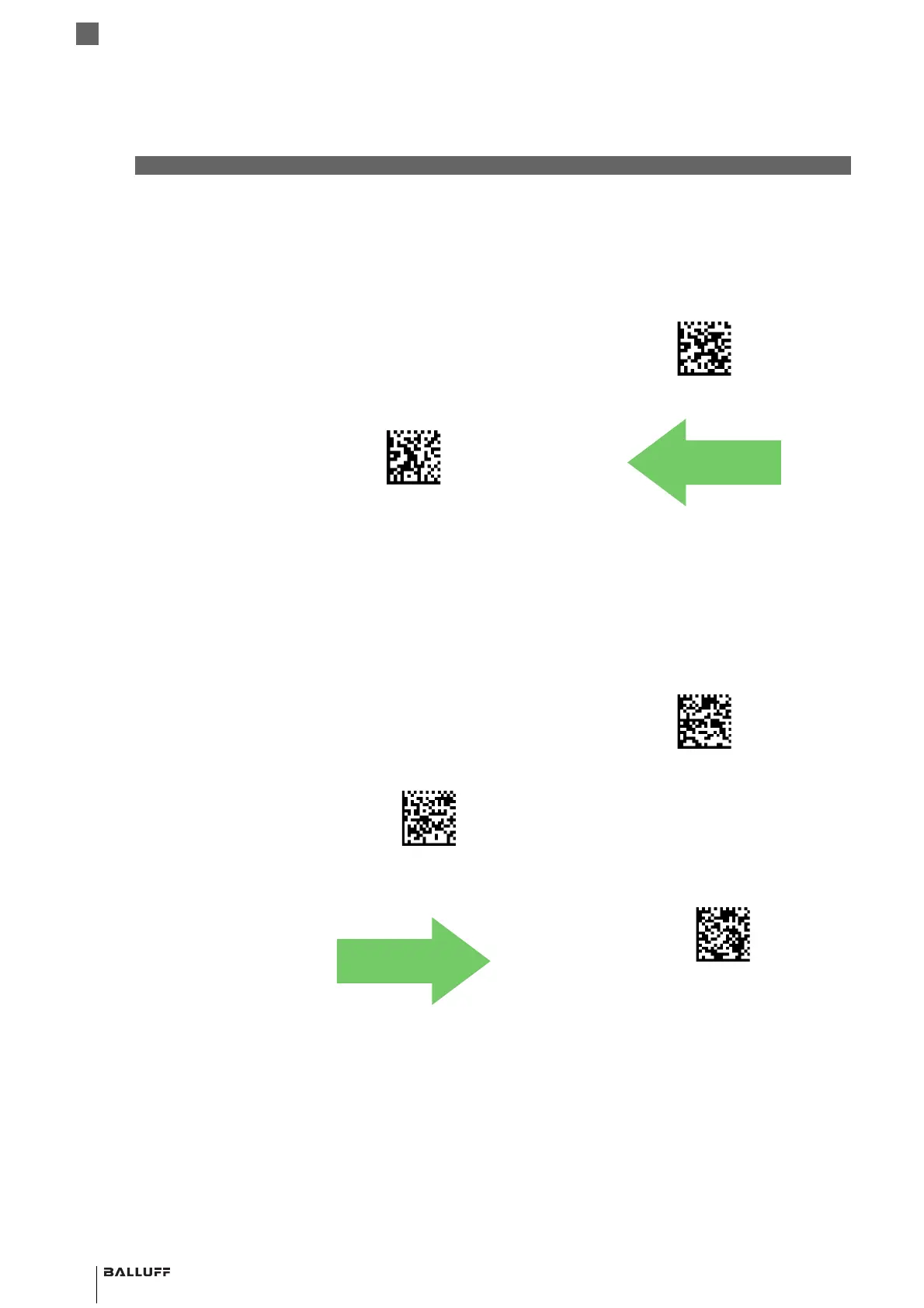

3.9.4 Data Matrix
Data Matrix
Enable / Disable
Enables/disables ability of reader to decode Data Matrix labels.
Data Matrix
Square/
Rectangular
Style
Specifies the options available when reading Data Matrix with different form factors. Choices are:
- Square Style
- Rectangular Style
- Both Square and Rectangular Style
The configuration item can also be configured as a bit mask to filter one or more Data Matrix
labels with different symbol size AND shape styles.
Data Matrix = Disable
Data Matrix = Enable
CDMEN00(C
CDMEN01(C
DEFAULT
Data Matrix Dimensions Mask = Square Style
Data Matrix Dimensions Mask =
Rectangular Style
Data Matrix Dimensions Mask =
Both Square and Rectangular Style
DMDM3FFF0BD
CDMDM0000420
DEFAULT
CDMD03FFFFFF
