Configuration Using Barcodes
Balluff BVS HS-P Family
Industrial Handheld Barcode Readers

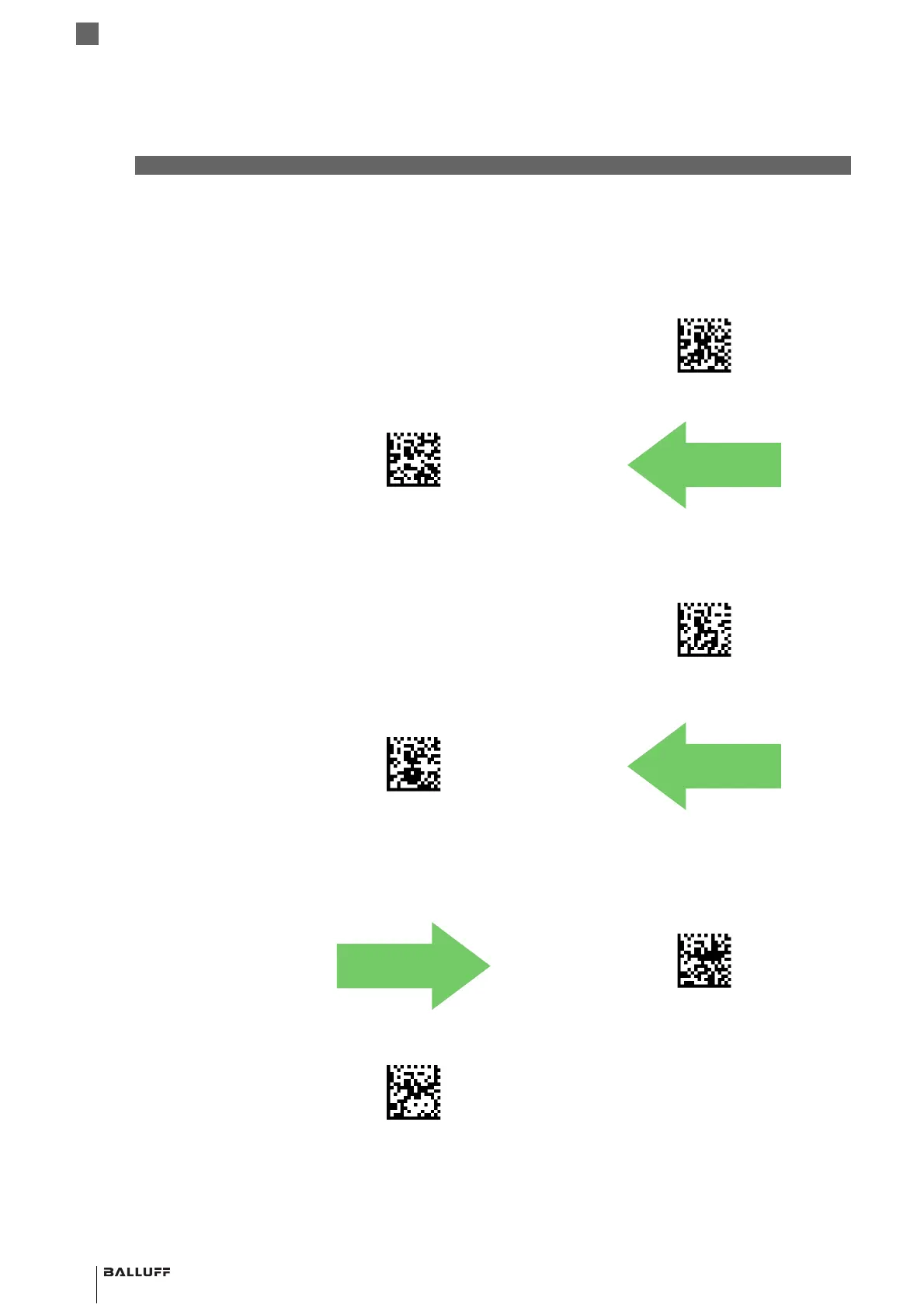

3.8.3 UPC-E The following options apply to the UPC-E symbology.
UPC-E Enable/
Disable
When disabled, the reader will not read UPC-E barcodes.
UPC-E Check
Character
Transmission
Enable this option to transmit the check character along with UPC-E barcode data.
UPC-E 2D
Component
This feature enables/disables a requirement that a 2D label component be decoded when a base
label for this symbology is decoded.
UPC-E = Disable
UPC-E = Enable
EBEN00(CR
EBEN01(CR
DEFAULT
UPC-E Check Character Transmission =
Don’t Send
UPC-E Check Character Transmission = Send
EBCT00(CR
EBCT01(CR
DEFAULT
UPC-E 2D Component =
Disable (2D component not required)
UPC-E 2D Component =
2D component must be decoded
DEFAULT
EB2D00(CR
EB2D01(CR
